Step 3:

Check audio clarity. Check that the sound is coming through the right speakers

by adjusting the balance front to rear and left to right.

4.5.2 LAN Connection

There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection

to an external network. To connect a LAN cable with an RJ-45 connector, please follow

the instructions below.

Step 1:

Locate the RJ-45 connectors. The locations of the USB connectors are shown

in Chapter 4.

Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the IMB-C2060. See Figure 4-15.

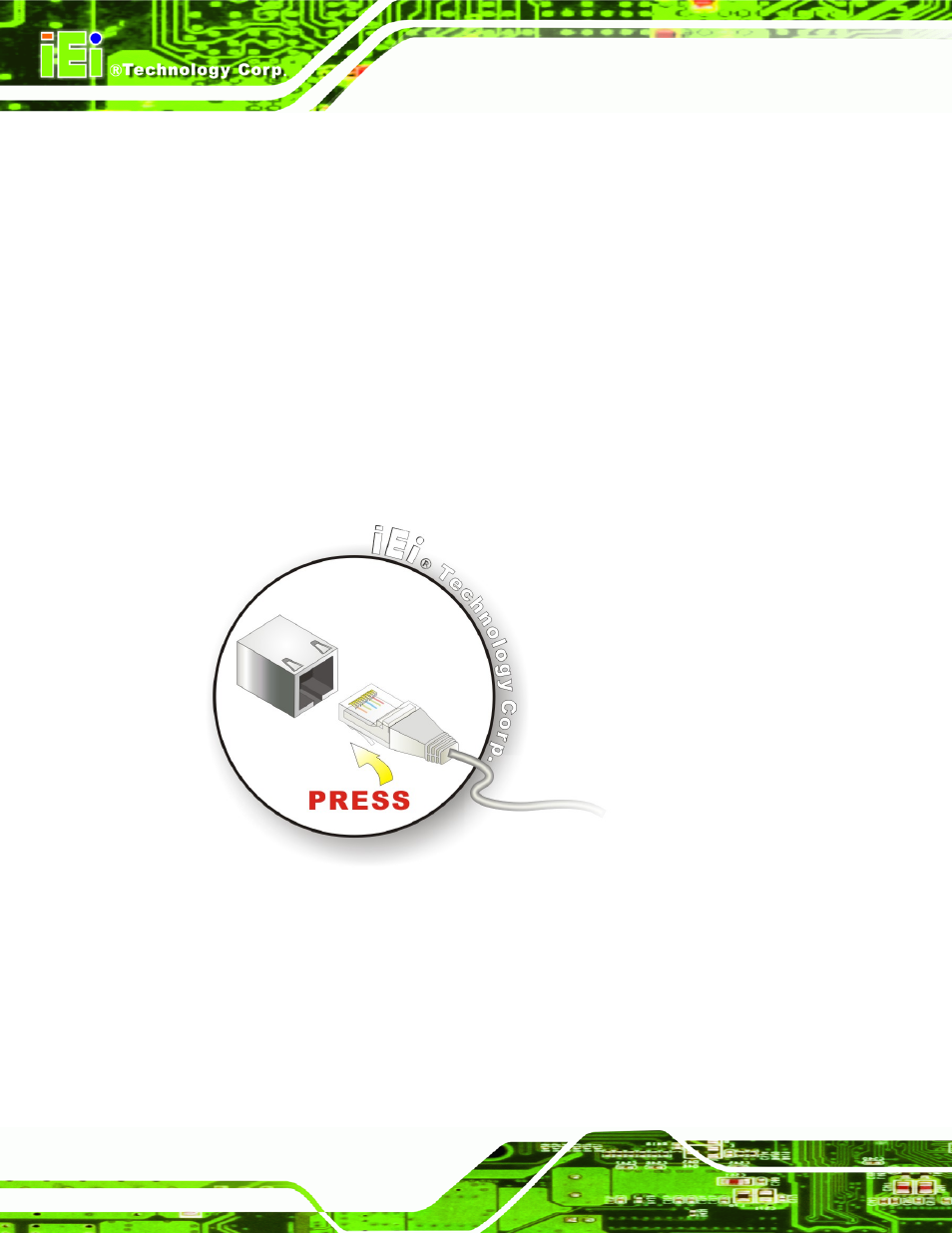

Figure 4-15: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.

Step 0:
