IMB-C2060 microATX Motherboard
Page 2
1.1 Introduction

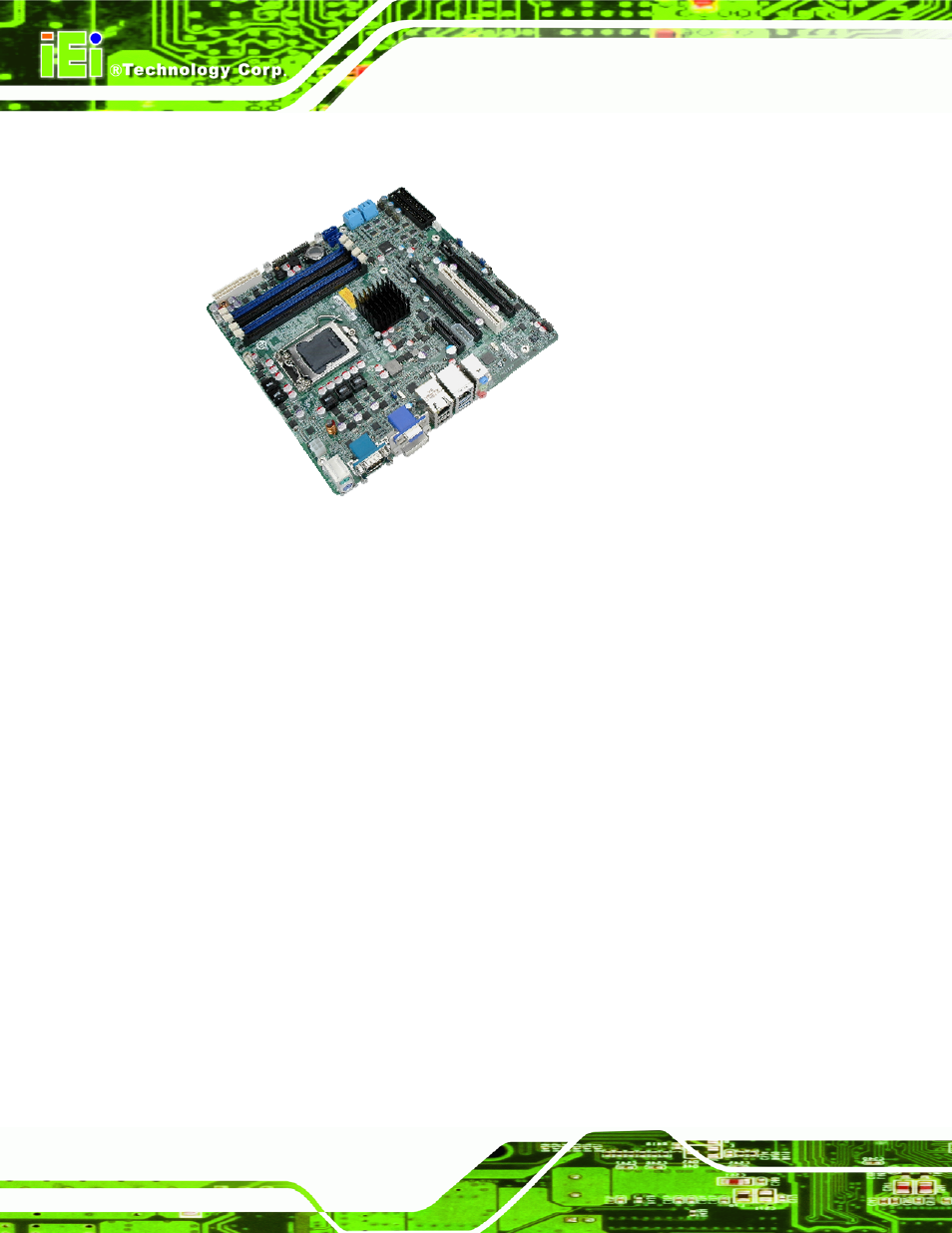

Figure 1-1: IMB-C2060
The IMB-C2060 is a microATX motherboard. It accepts a Socket LGA1155 Intel® Xeon™
E3 or Intel® Core™ i3 processor and supports four 240-pin 1333/1066 MHz dual-channel
DDR3 DIMM modules up to 32.0 GB maximum. The IMB-C2060 includes a VGA, HDMI,
and DVI-D port. Expansion and I/O include one PCI slot, one PCIe x16 slot, one PCIe x4
slot, one PCIe x16 slot with x8 signal, two USB 3.0 ports on the rear panel by NEC
D720200F1, two USB 2.0 on the rear panel, eight USB 2.0 by pin header, four SATA
3Gb/s connectors, two SATA 6Gb/s connectors, ten COM ports, and a keyboard/mouse
connector.
1.2 Benefits
Some of the IMB-C2060 motherboard benefits include:
ƒ Powerful graphics with multiple monitors
ƒ Staying connected with both wired LAN connections
ƒ Speedy running of multiple programs and applications
