IMB-C2060 microATX Motherboard

Page 32

Used for RS-422/485 communications.

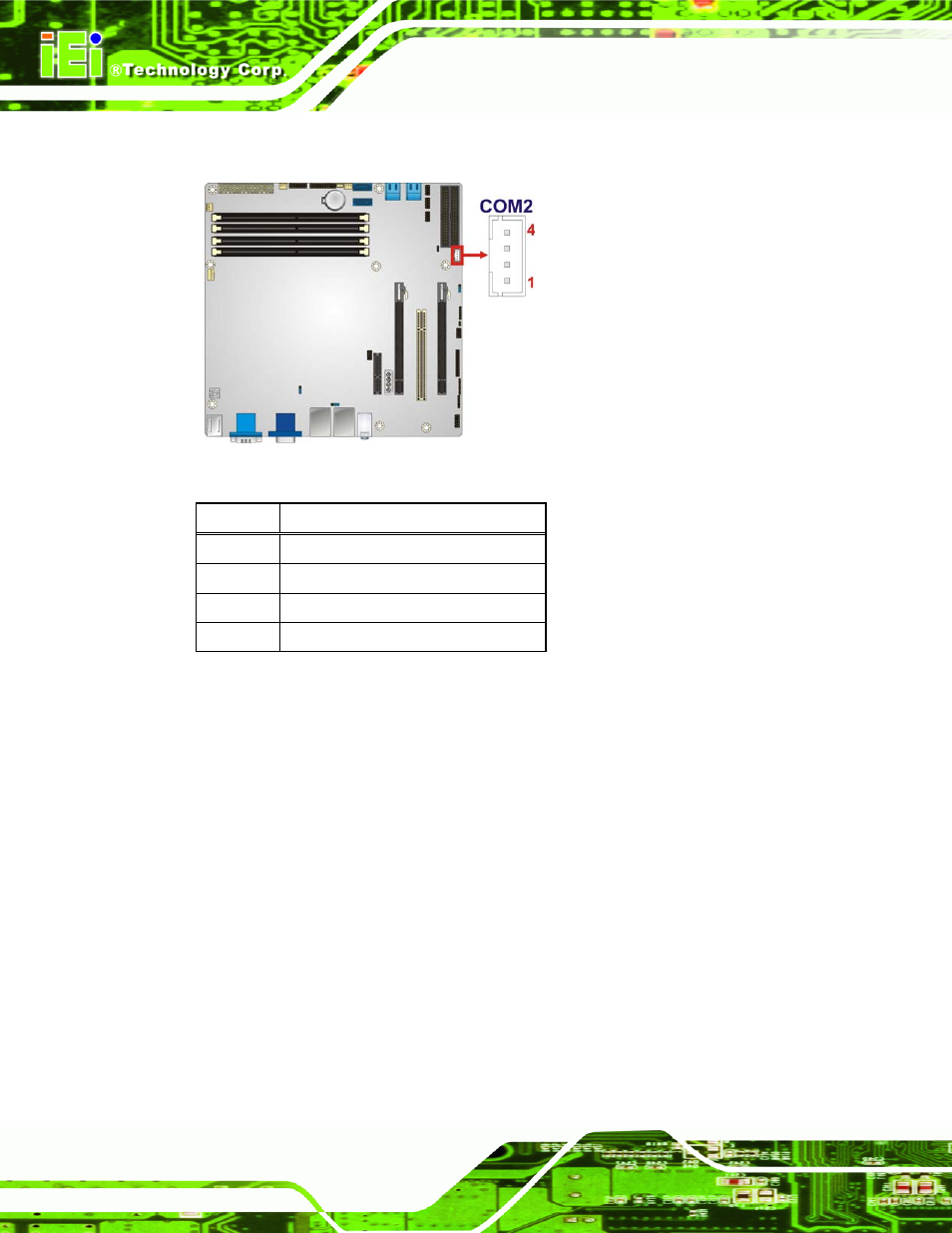

Figure 3-16: RS-422/485 Connector Location

PIN NO.

DESCRIPTION

1

RXD422-

2

RXD422+

3

TXD422+/TXD485+

4

TXD422-/TXD485-

Table 3-16: RS-422/485 Connector Pinouts

3.2.16 Serial Port Connectors, RS-232

CN Label:

COM3-6, COM7-10

CN Type:

40-pin box header

CN Location:

See Figure 3-17

CN Pinouts:

See Table 3-17

Each of these connectors provides RS-232 connections.
