Defibrillator controls and indicators – ZOLL R Series Monitor Defibrillator Rev K Operators Guide User Manual
Page 43
Defibrillator Controls and Indicators
9650-0904-01 Rev. K
ZOLL R Series Operator’s Guide
2–11
Attach the OneStep cable from the R Series unit to the connector at the base of the apex paddle.

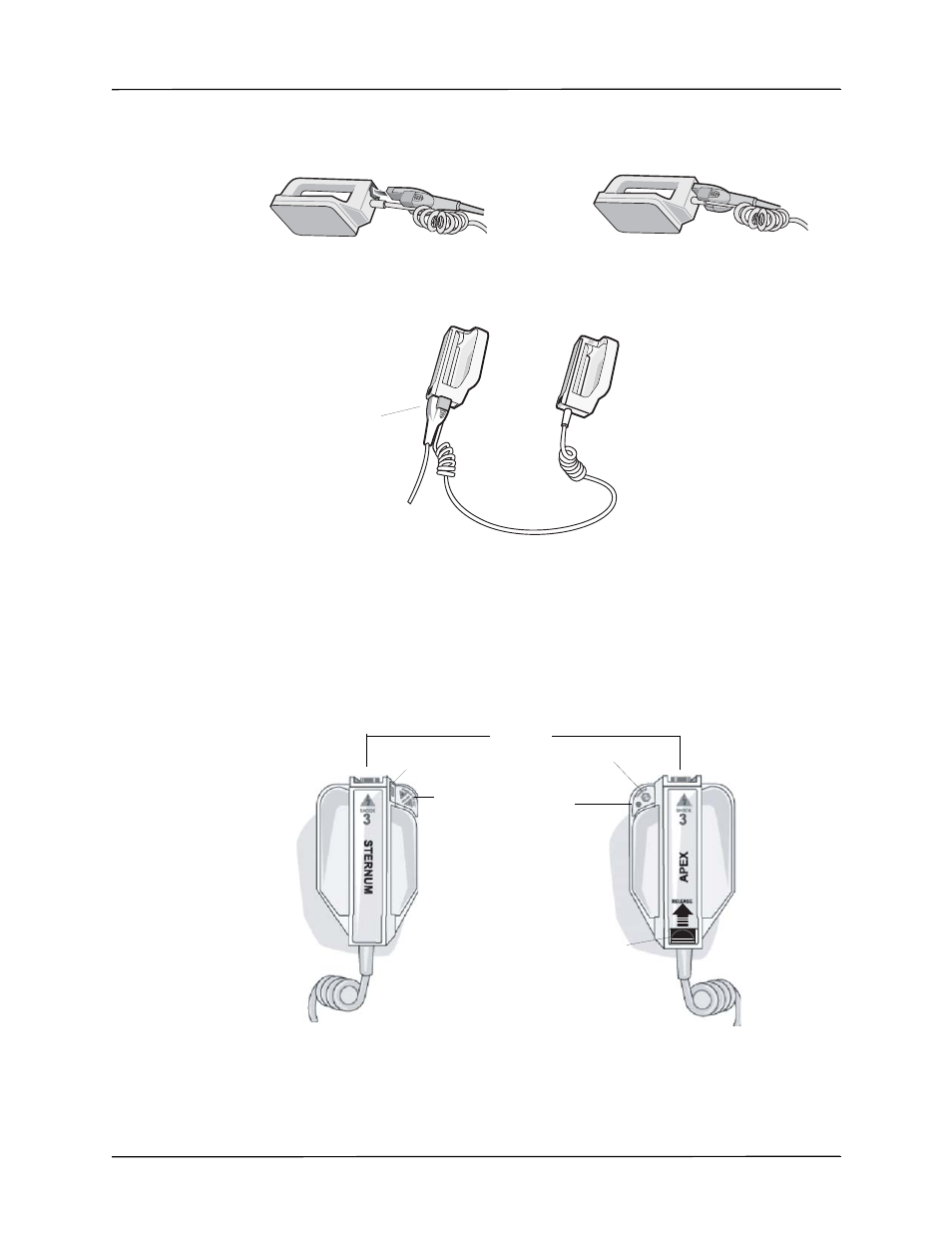

Figure 2-8.
Attaching the OneStep Cable to the APEX Paddle
Figure 2-9.
OneStep Cable Connected to APEX Paddle
If you need to detach the OneStep cable from the APEX paddles, push the RELEASE button
(see Figure 2-10) in the direction of the arrow and unplug the OneStep cable.
Refer to Chapter 4, "Manual Defibrillation" before using paddles for defibrillation. The paddles
include controls for selecting defibrillation energy, charging, delivering a shock, and turning
the stripchart recorder on and off.
Figure 2-10.
External Paddles
1. Align OneStep cable as shown.
2. Insert OneStep cable into APEX paddle.
OneStep cable connected
to APEX paddle
SHOCK
Buttons
RECORDER
Button
ENERGY
SELECT
Buttons
CHARGE
Button
Charge Ready
Indicator
Sternum Paddle
Apex Paddle
Connector
and RELEASE
button for
OneStep cable
