External paddles (manual mode only) – ZOLL R Series Monitor Defibrillator Rev K Operators Guide User Manual
Page 42
C
HAPTER
2
P
RODUCT
O
VERVIEW
2–10
www.zoll.com
9650-0904-01 Rev. K
Power Cord
The AC power cord is used to operate the R Series unit when battery power is not being used.
An additional extension cord is available for use when the cable organizer accessory is attached
to the unit. The extension cord plugs into the main AC power cord as shown below.
External Paddles (Manual Mode Only)
The external paddles on the R Series device are used for defibrillation and synchronized
cardioversion.
Caution
You cannot use paddles for ECG analysis or pacing.
Defibrillation paddles can be used for ECG monitoring when it is not practical to apply ECG
electrodes. Press the LEAD button to select PADDLES as the ECG source.
The paddles are stowed in wells on either side of the unit. To release the paddles, grasp the
handles and then press down on the latch button above each paddle.

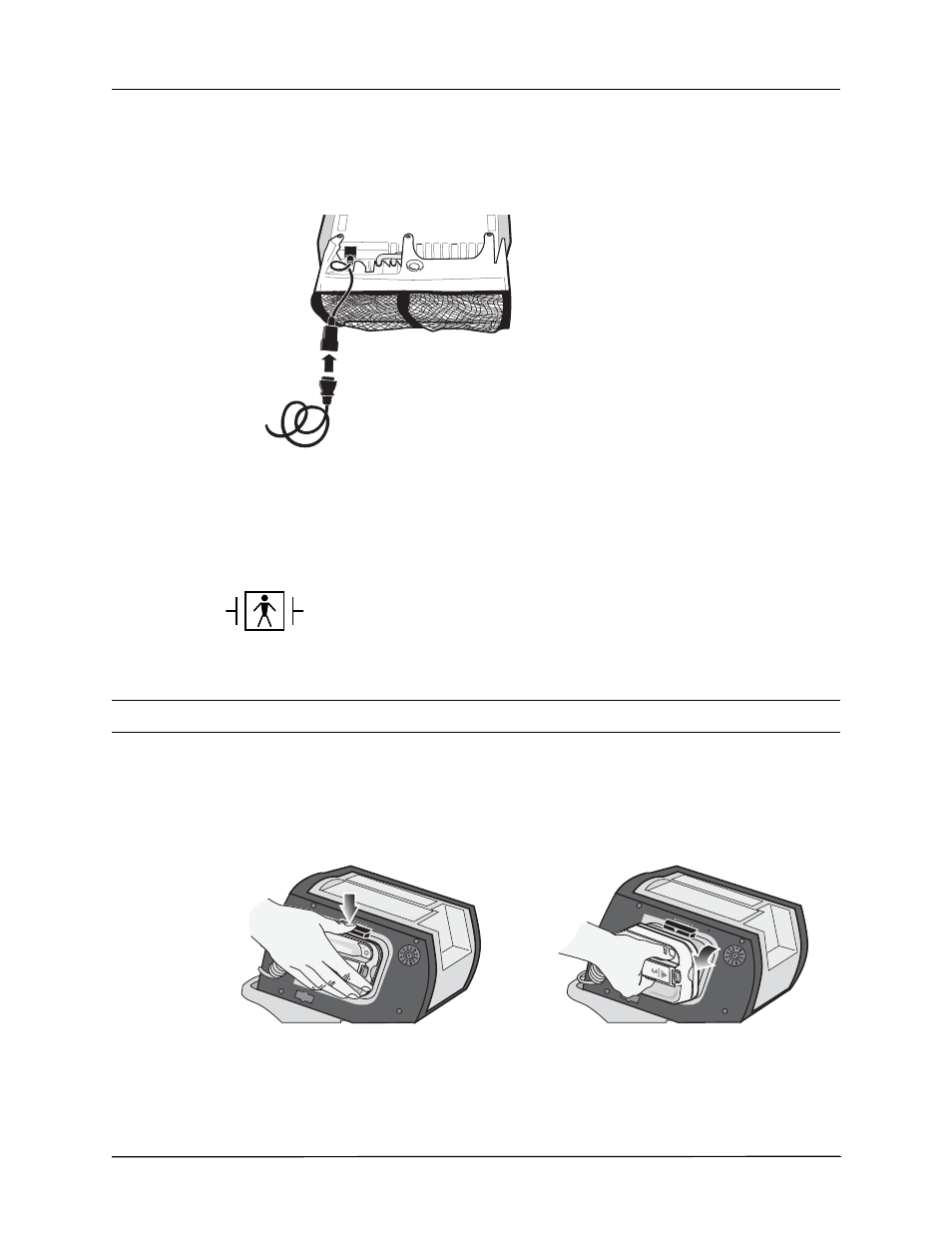

Figure 2-7.
Releasing the Paddles
Paddles are defibrillation-proof Type BF equipment.
RELEASE
RELEASE
RELEASERELEASE
