Data transmission – ZOLL M Series Defibrillator Rev E Bluetooth User Manual
Page 9

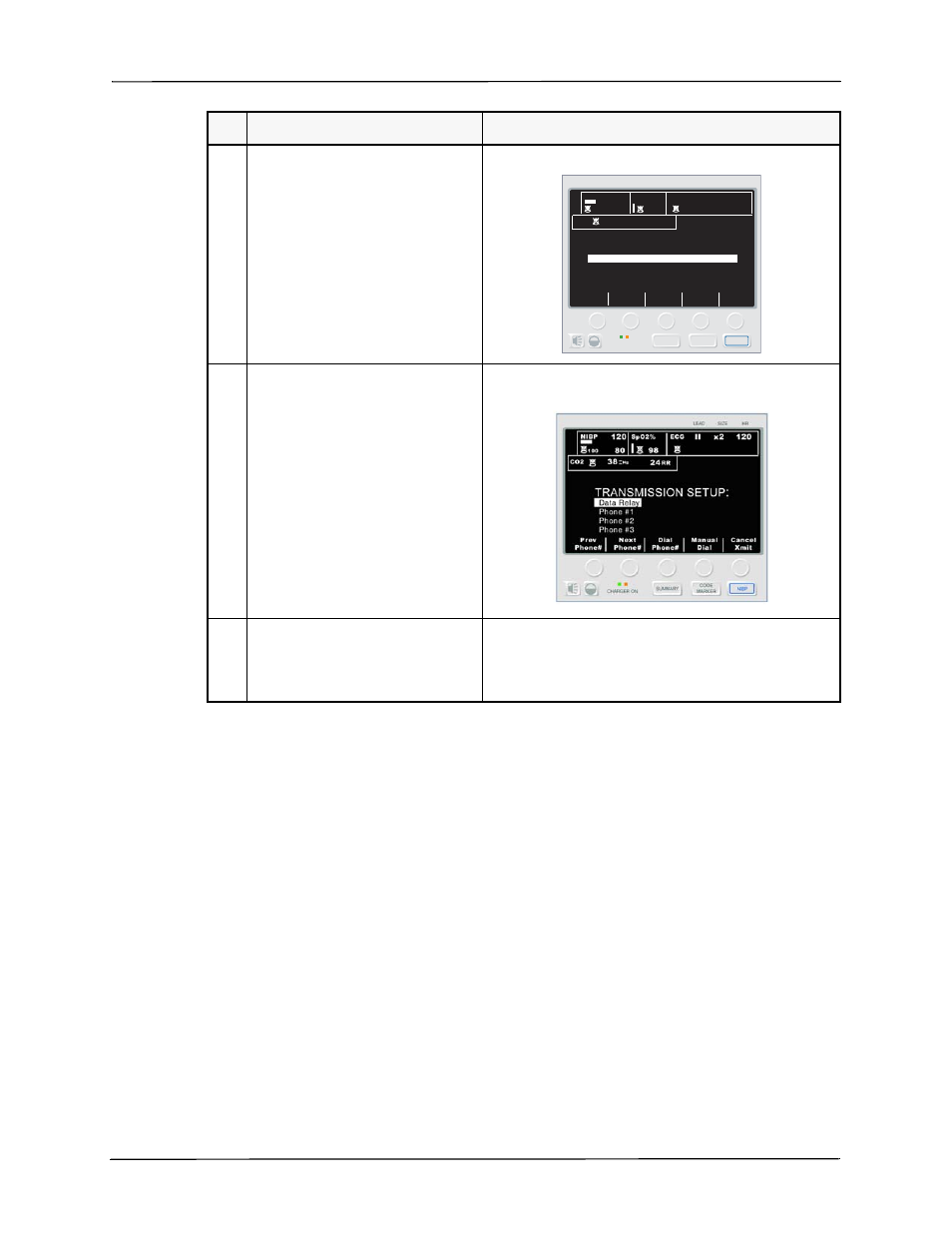

Data Transmission
9650-0307-01 Rev. E
ZOLL M Series Operator’s Guide - Option Insert
5
3.
Press the Patient Records softkey.
The M Series unit displays the Patient Records menu.
4.
Select a Patient Record and press
the Transmit softkey.
The M Series unit displays the Transmission Setup
screen.
5.
Select the Data Relay option and
press the Dial Phone# softkey.
The Bluetooth module’s green power LED illuminates.
The M Series unit establishes a connection to the
remote handheld device, and transmits the patient
record data.
Step Action
Result
CHARGER ON
SUMMARY
CODE
MARKER
NIBP
24
NIBP
100
120
80
SpO2%
98
CO2
38
m
m
Hg
24
RR
ECG
II
120
x2
LEAD
SIZE
HR
Prev
Record
Next
Record
Transmit
Return
PATIENT RECORDS
:
1: 2000009181317 18 SEP 02 13:23:26
2: 2000009181317 18 SEP 02 13:17:58
3: 2000009181317 18 SEP 02 14:46:12
