Data Transmission
9650-0307-01 Rev. E ZOLL M Series Operator’s Guide - Option Insert 3
Data Transmission
You can set the M Series unit to transmit 12 Lead ECG and trend data automatically, as soon
as it is acquired, if the unit can establish a connection to the remote handheld device. You can
also initiate transmission of patient data manually.
In System Utilities mode, you can initiate transmission of all trend history data or all
information stored on a PC data card.
The “Trending” option must be enabled for trend data collection and transmission. See the
M Series Configuration Guide for more information on setting this option.
Activating Automatic Data Transmission
If set for automatic data transmission (Realtime mode), the M Series unit displays two
asterisks (*) in the top left-hand corner of the screen. When the unit is transmitting trend data
or a 12 Lead patient record, the asterisks flash alternately; otherwise the asterisks remain
static.
In Realtime mode, the M Series unit only transmits trend data collected since the unit was
powered-up, and does NOT transmit all trend data stored in memory. For details on
transmitting all trend data, see “Transmitting Trend History or PC Card Data” on page 6.
In Realtime mode, the M Series unit transmits 12 Lead data to the remote handheld device
automatically. However, if the “Auto Transmit after 12 Lead Analysis” option is enabled, the
M Series unit displays the Transmission Setup screen after the 12 Lead data has been acquired.
If you press the Dial Phone# softkey, the unit transmits the 12 Lead data again; press the
Cancel Xmit softkey to prevent redundant data transmissions and return to the 12 Lead
menu.
If you are using Bluetooth communication on a regular basis, you can disable the “Auto
Transmit after 12 Lead Analysis” option to eliminate the additional Transmission Setup
screen; see the M Series Configuration Guide for information.
Procedure
Follow these steps to activate automatic data transmission on the M Series unit.

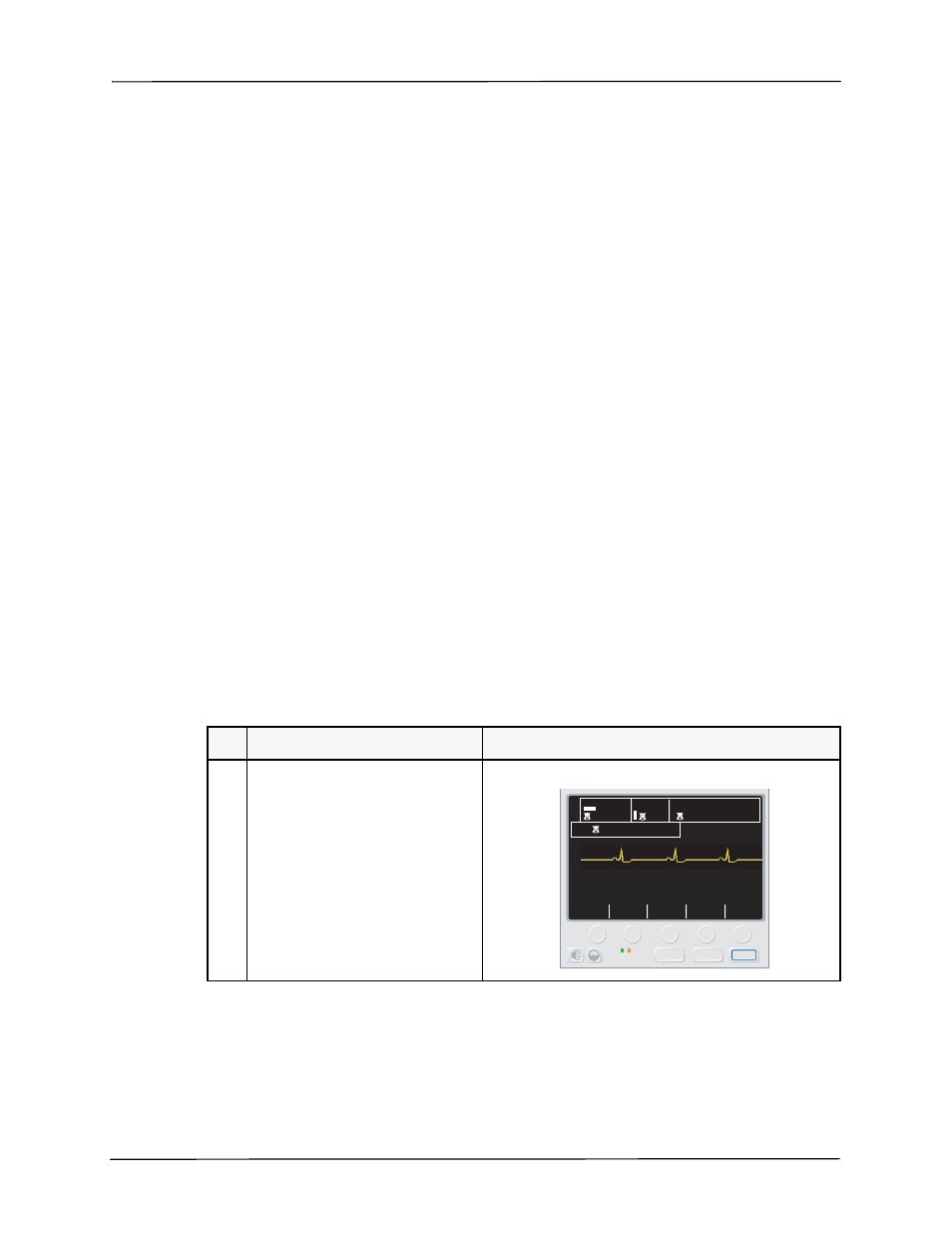

Step Action Result
1. With the M Series unit in Monitor
mode (ON for AED units), press the
SUMMARY button on the M Series
front panel. The M Series unit displays the Summary menu.
#(!2'%2 35--!29
#/$%
-!2+%2 .)"0
3ULQW
&RQILJ
3ULQW
&KDUW
'DWD
5HOD\2Q 7UHQG
3ULQW
/RJ
021,725
(&*
1,%3 6S2
&2 P P +J 55
(&* ,, [
,%!$ 3):% (2
