12-lead
9650-0215-01
12-lead - 9
4x3 Median Complexes

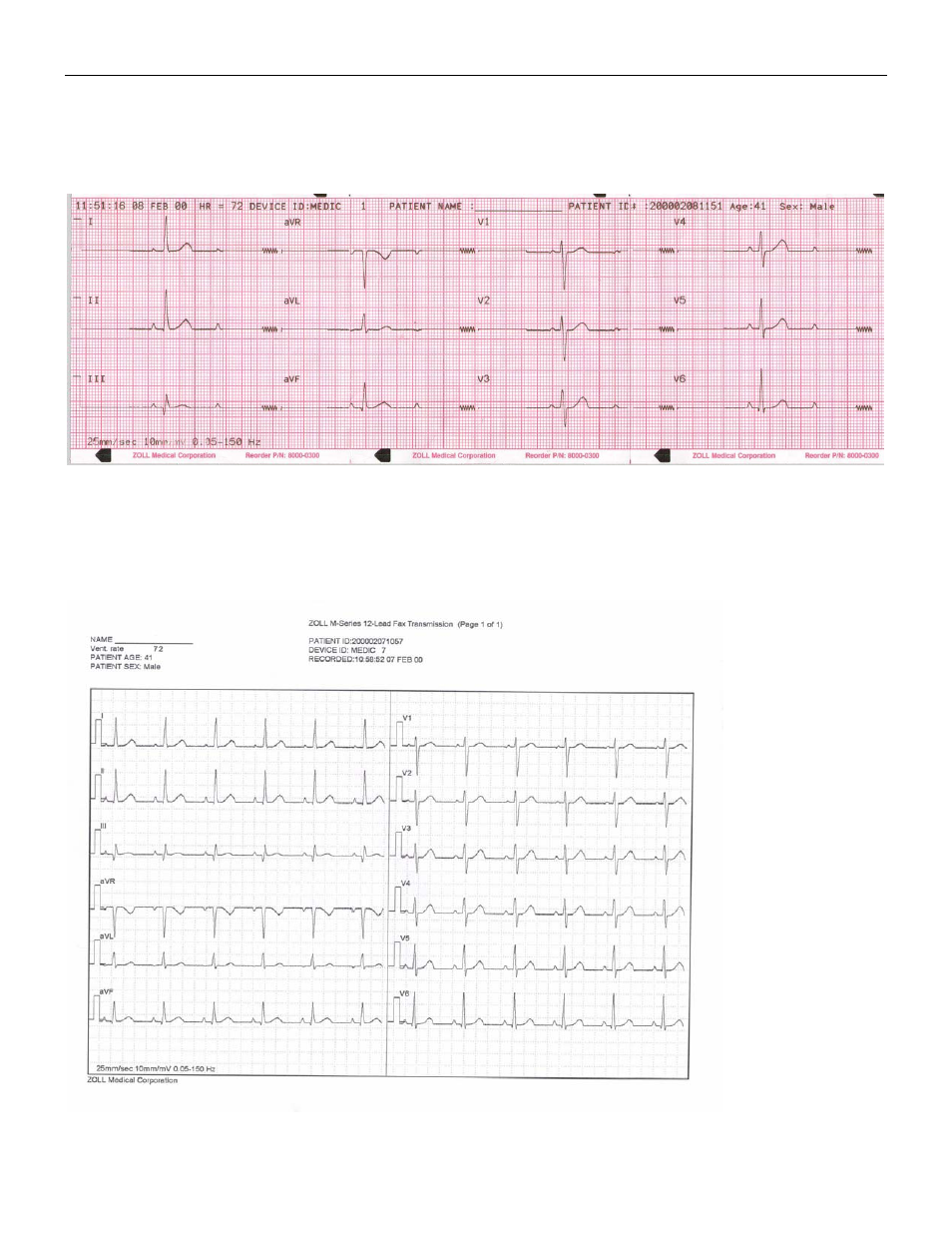

This format prints a single median beat for each of the twelve (12) leads. The median beat is computed by the 12SL algorithm and is
denoted by a squiggle at the end of each median lead. The report can be configured for either standard or Cabrera print formats. 1
mV calibration pulses are printed at the beginning of the report for each data channel.
2x6 Format (Fax Report Only)
The "2x6 Format, 1 Page", prints all 12-lead ECG data recorded during the first 5 second interval. The 2x6 format inhibits printing of
the 12SL analysis and the lead II rhythm strip normally printed on the fax page. The strip chart always prints in the 4x3 format.
Fax the 2x6 format immediately after acquisition. The 2x6 fax image is not stored in the patient records. Patient data can, however,
be reproduced in 4x3 format at a later time.
