8 ZOLL M Series Invasive Blood Pressure
Changing the Display
You can change how the M Series unit displays IBP data and traces. Any changes to these settings remain
in effect until either the settings are changed or 10 seconds after the M Series is turned off.
Changing the displayed traces
When in Monitor or Defib mode, the M Series unit displays three traces. While Trace 1 always
displays ECG, you can select the type of waveform displayed for Traces 2 and 3. When the M Series
unit is in Pacer mode, display messages take the place of Trace 3.
To select the displayed traces:
1. Press the Traces softkey. If Trace softkey label is not displayed, press the Return softkey until
“Traces” displays.
The Traces menu displays (see Fig. 8):

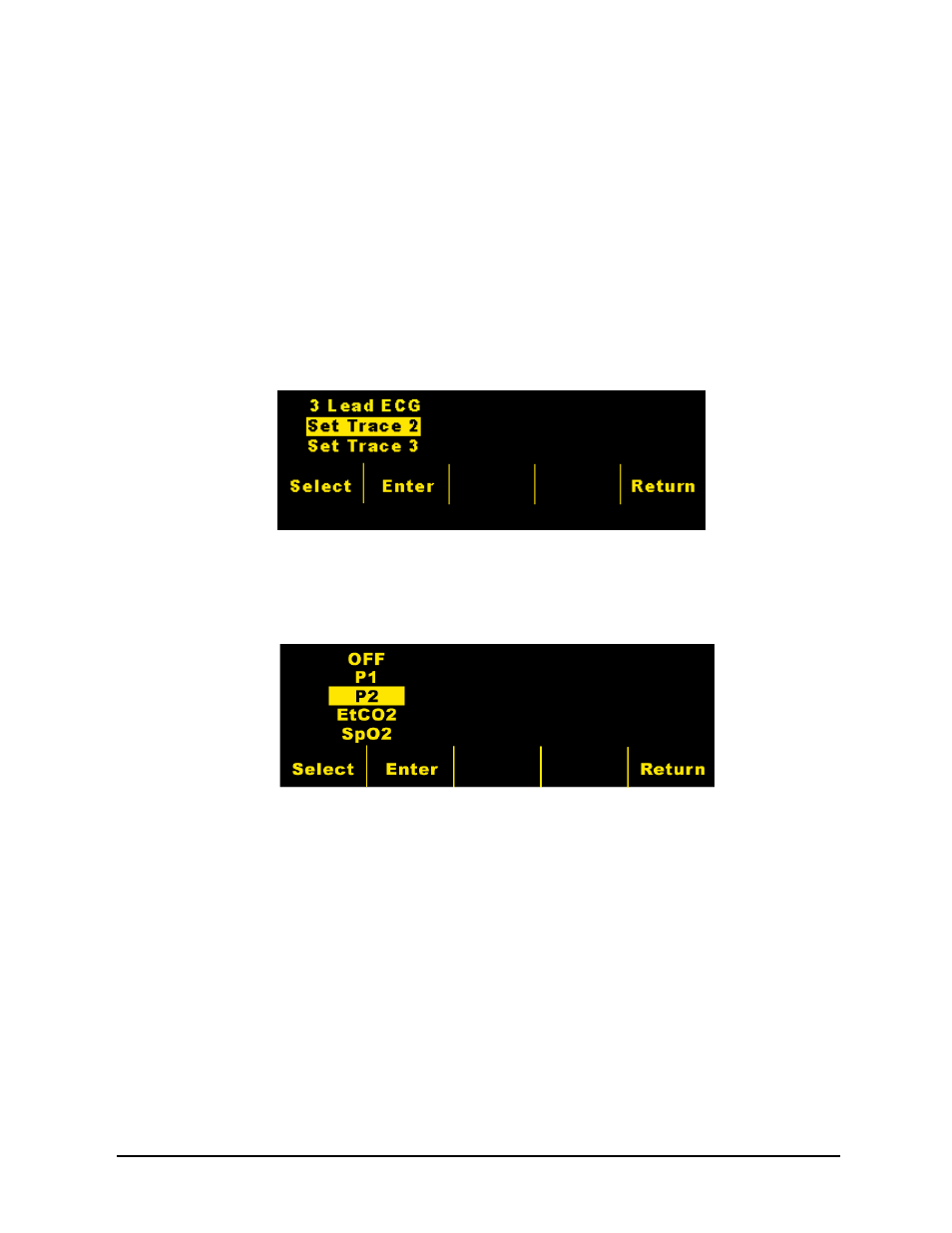

Figure 8: Traces Menu
2. Press the Select softkey to select the trace you want to change.
3. Press the Enter softkey.
The Trace Options menu displays (see Fig. 9):
Figure 9: Trace Options Menu
4. Press the Select softkey to select the type of waveform you want to display. Note that you
cannot select a waveform that is already displayed on a different trace.
5. Press the Enter softkey.
M Series unit displays the selected waveform. If desired, repeat steps 1 - 5 to change the other
trace.
