ZOLL M Series Invasive Blood Pressure 7
The source of the displayed Heart Rate values depends upon the signals being monitored by the M
Series unit:
• If the ECG signal is present, the ECG heart rate displays.
• If the ECG signal is not present, but pulsatile IBP signal is present, the IBP pulse rate displays
(regardless of whether the SpO
2
signal is present). P1 takes precedence over P2.
• If neither the ECG nor pulsatile IBP signals are present, the SpO
2
pulse rate displays.
The IBP display area consists of:
• Symbols that represent the status of pressure measurements.
• Numbers that represent the measurement values (see Fig. 6 and Fig. 7):

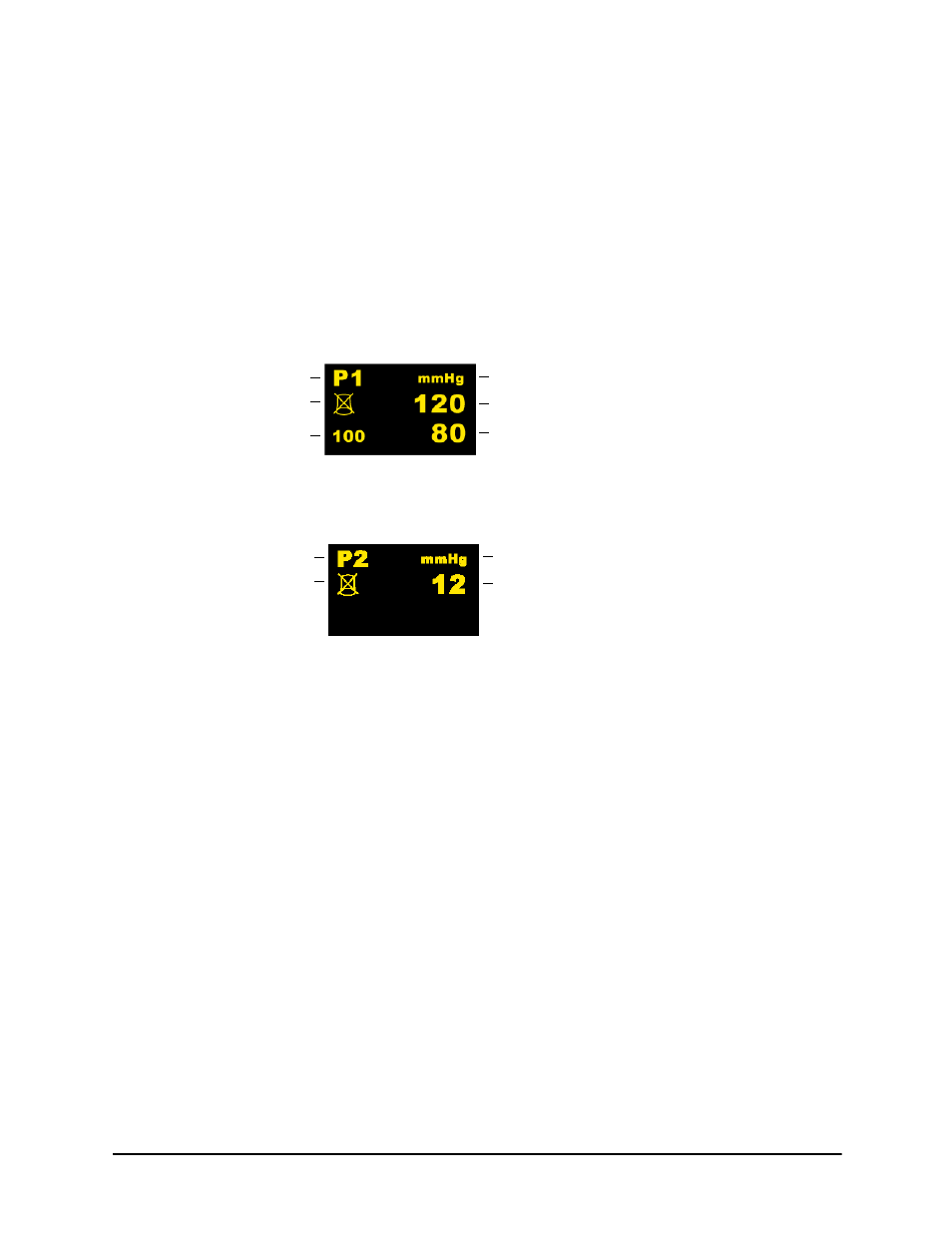

Figure 6: IBP Data Display Area - ART, PA, P1
Figure 7: IBP Data Display Area - CVP, ICP, P2
Either channel (P1, P2) may be used for any type of pressure measurement (arterial, pulmonary arterial,
central venous, or intracranial). The M Series default unit of measure is millimeters of mercury
(mmHg), but you can configure the M Series to display kilopascals (kPa). See the M Series CCT
Configuration Guide for instructions on how to configure alternate units of measure.
Channel Label
Alarm Status
Diastolic BP Value
Systolic BP Value
Mean BP Value
Unit of Measurement
Channel Label
Alarm Status
Mean Pressure Value
Unit of Measurement
