17

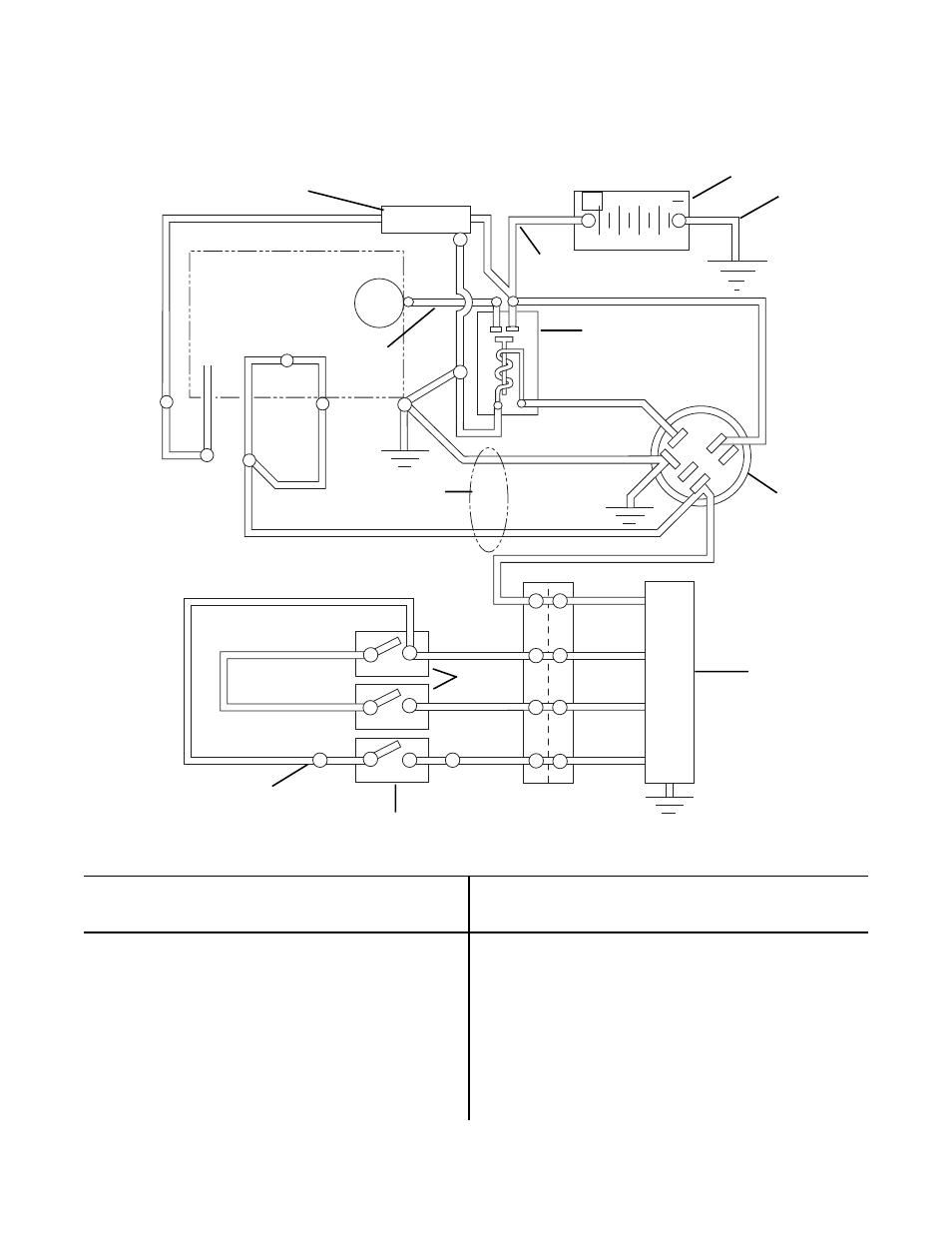

Electrical
Models 927046,053,054,055,056,306,307,308,310
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 01238500 Regulator 1
2 02759300 Starter Cable 18” (046,055,
056,308,310)
1
02727900 Starter Cable 16” (053,054,
306,307)
1
3 02749400 Battery 1
4 02518900 Ground Cable 1
5 02727200 Starter Cable 13” 2
6 03057700 Solenoid 1
7 02753600 Wire Harness RM
B & S Engines 1
8 52709300 Switch Assembly 1
9 02754100 Switch-Snap Mounting N.O. 2
10 08885700 Module,Interlock, Recoil 1
11 02739700 Adapter - Seat Switch 1
12 03171600 Switch Seat 1
13 02755800 Harness Adapter 1
+
