Ariens 927055 - RM1332 - Manual (Page 16)

14

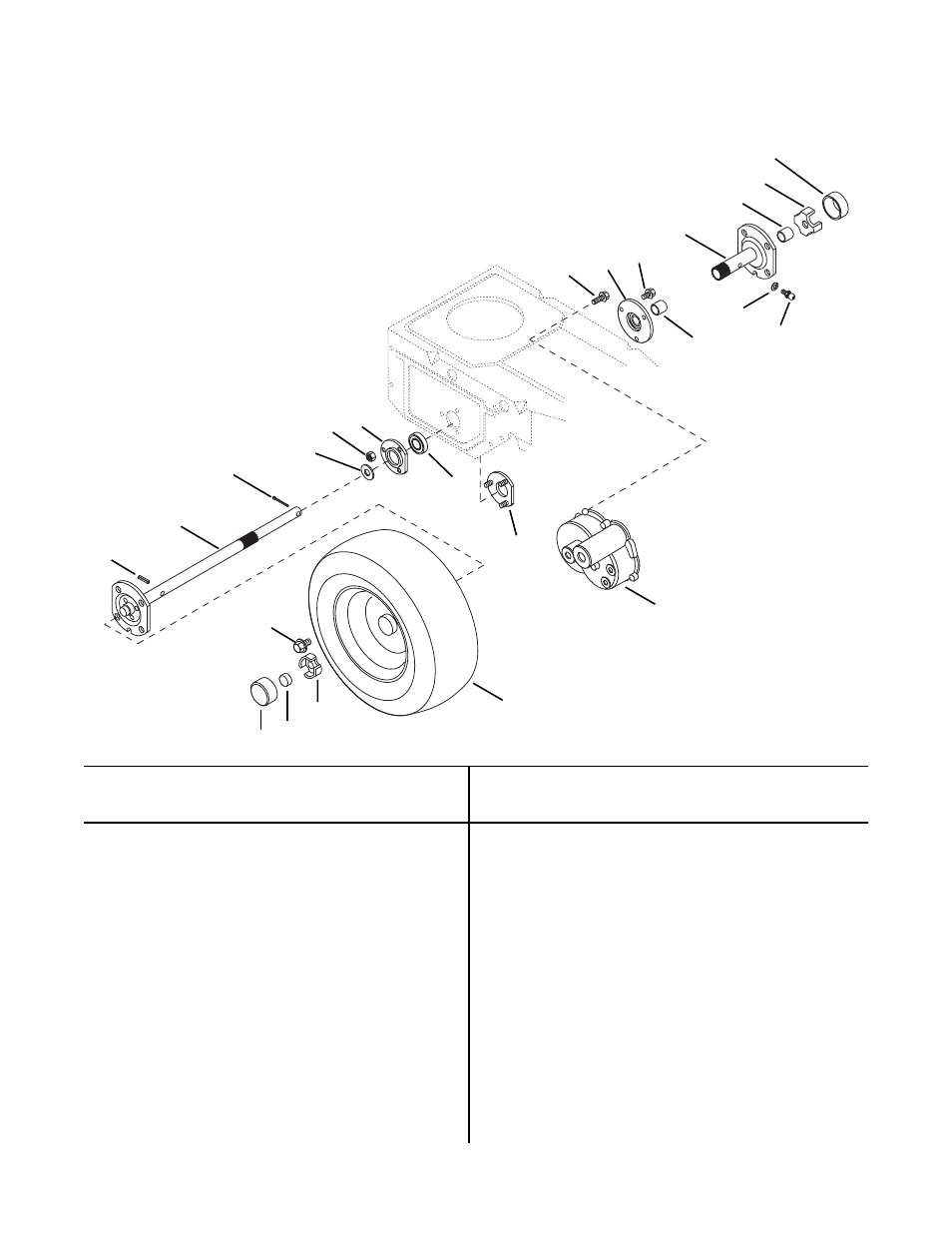

Rear Axle
Models 927046,053,054,055,056,306,307,308,310
6
16
18
19
21
17
3
5
12
11
13
14
15
20
10
1
2
3
4
9
7
8
22
1
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 00337700 Hub Cap 2
2 03516900 Spindle Cap 1
3 05511900 Bushing-Sleave .690 x .814
x 1.000 2
4 52709200 L.H. Axle Assembly 1
5 07012600 Fitting-Lube .25-2 x .256 1
6 06307000 Washer-Lock .250 x .047 1
7 07412000 Screw-Tapping .25-20 x .50 3
8 05607100 Seal 1.125 x 2.496 x .38 1
9 07415300 Screw-Tapping .312-18 x
1.50 2
10 01014200 Bearing Flange 1
11 06530100 Nut-Locking-Flange .250-20 3
12 06403600 Washer-Flat-Steel .880 x
1.380 x .062 1
13 06707100 Pin-Cotter .12 x 1.0 1
14 02718100 Right Hand Axle 1
15 05800300 Pin-Roll .188 x 1.25 1
16 05409300 Bearing Ball .75 x .880 x .50 1
17 00301700 Bearing Flange 1
18 52708600 Gear Case Assembly
(See Next page for detail) 1
19 07115200 Tire/Wheel Assembly #35-16
x 6.50-8 2
07102100 Tire 8 x 6.50 2
07107700 Wheel Indus: #213435493 2
20 07412200 Screw-Tapping .500-20 x .62 8
21 01238200 Spindle Cup 1
22 01036600 Pushnut 1
PA0160
