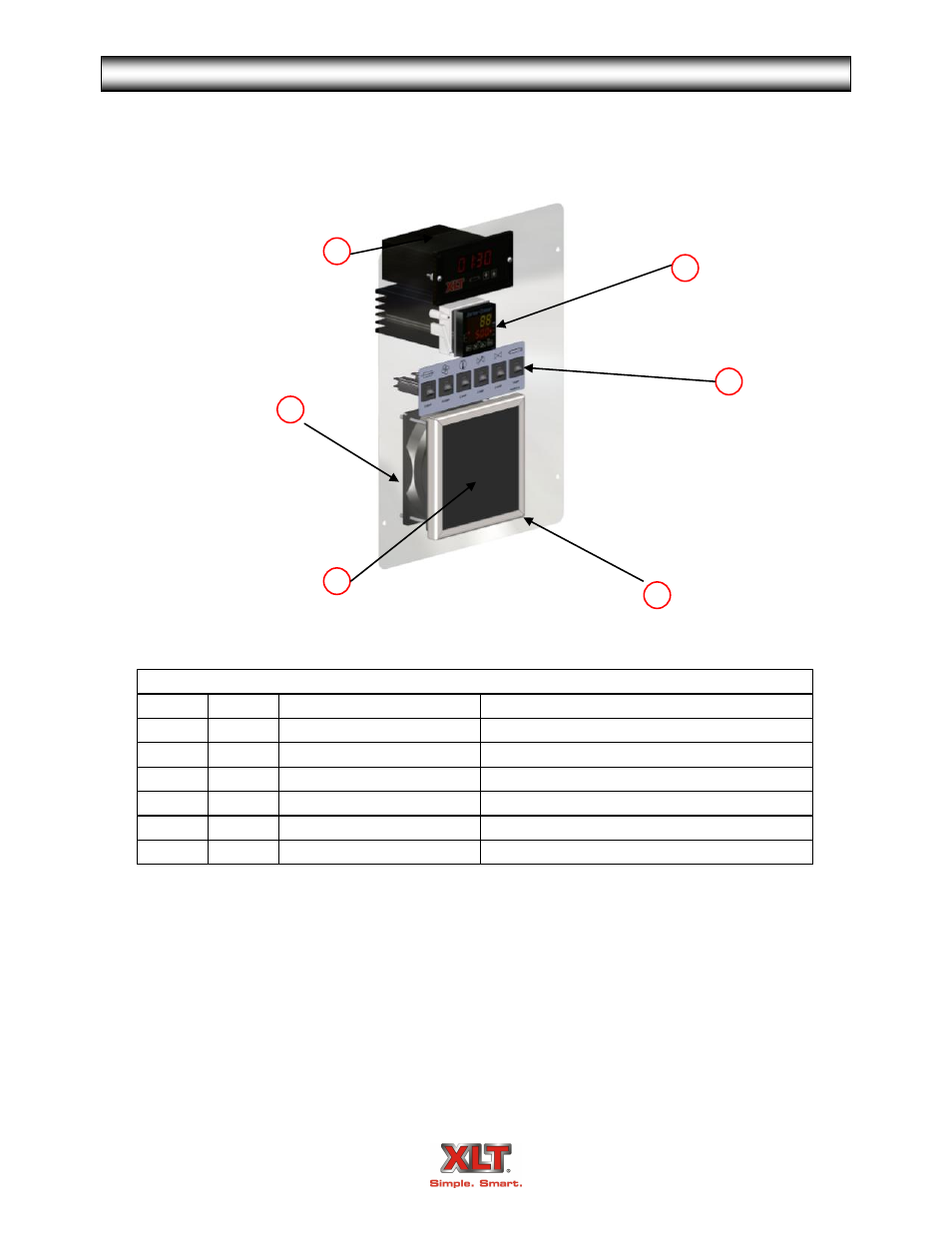

OVEN PARTS-CONTROL BOX
Control Panel information required:

Size of Oven

Voltage

What amp circuit breaker you need
1
2
3
4
5
6
ITEM QTY PART NUMBER DESCRIPTION
1 1.00 XM 4520-GA Fan Guard / Filter Holder
2 1.00 XP 4501-S FPPG Fan Standard M2
3 1.00 XP 4507-24-A Conveyor Speed Control 24VDC
4 1.00 XP 4508 Temperature Control GAS
5 1.00 XP 4515-CB-15A 15 Amp Circuit Breaker
6 1.00 XP 4520-GA Fan Filter
CONTROL PANEL
