21
Technical Support US: 888-443-2751 Technical Support INTL: 316-943-2751
Temperature Control Programming Procedure
OVEN SERVICE PROCEDURES
Configuration Key Functions
=
The new setting of the selected parameter is stored
and the display advances to the next parameter. This
is required between each parameter.
= Increases the setting of the selected parameter.
= Decrease the setting of the selected parameter.

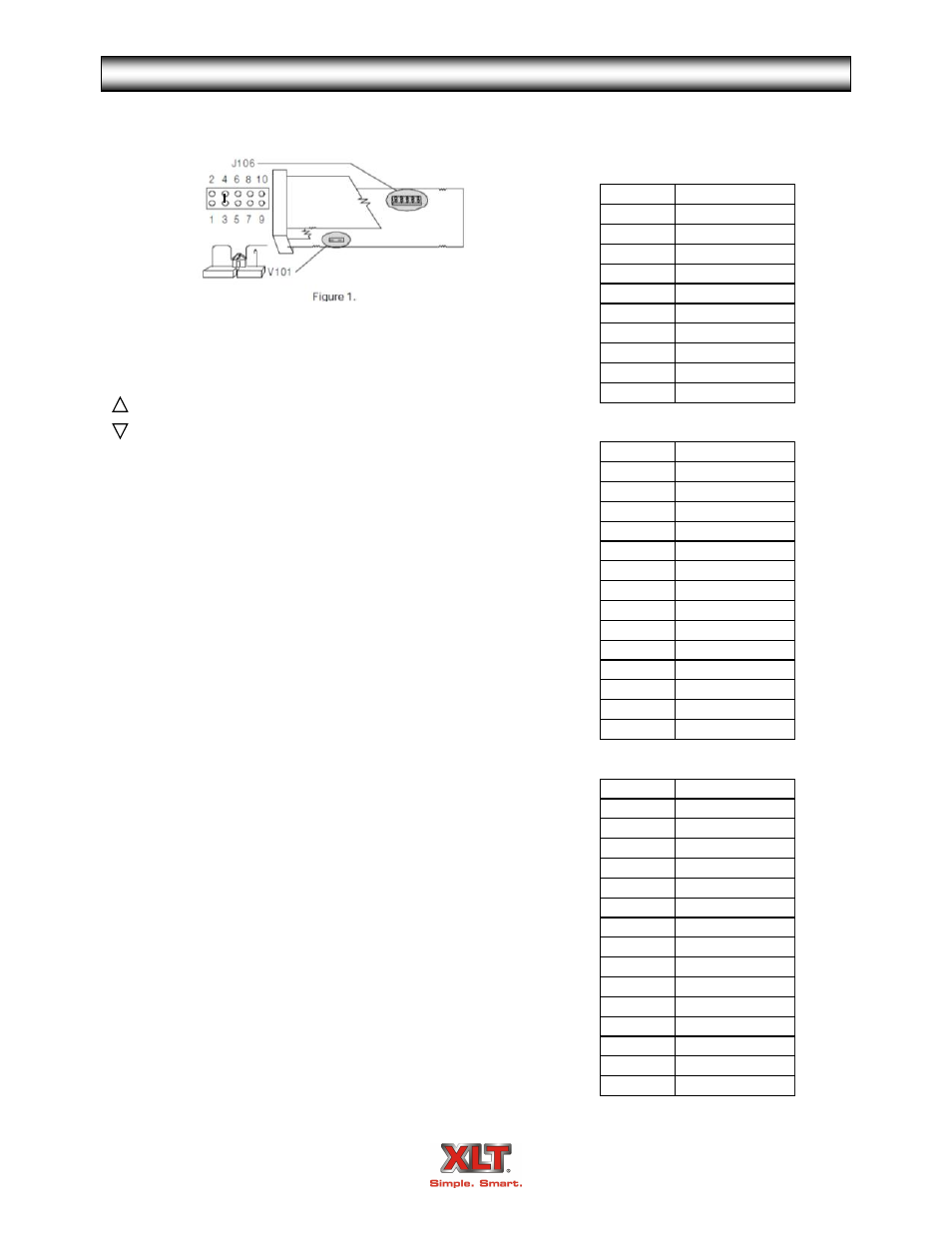

1. Open V101 switch for Basic/advanced Configurations (Figure 1)

Turn main switch to the off position

Remove instrument from its case (By pulling from the front)

Open Switch V101

Verify that jumper J106, is configured as shown.

Re-insert the instrument back in its case.

Turn main switch to the on position
2. Basic Configurations

Using the configuration keys scroll thru parameter codes
changing them to match (Figure 2)

After P17 _._._._. Will appear

Using the configuration keys scroll to 262 and press
to enter into Advanced Configurations.
3. Advanced Configurations Procedure

Using the configuration keys scroll thru parameter codes
Changing them to match (Figure 3)
4. Close V101 switch after Basic/Advanced Configuration (Figure 1)

Remove instrument from its case

Close Switch V101

Re-insert the instrument back in its case.
5. Operating Parameters Procedure (Figure 4)

On the first pass thru change nnn to 3111 to unlock the
advanced configuration

Scroll thru the parameter codes again and change the nnn to 5
this locks the advanced configuration

Scroll thru the parameter codes again and verify nnn is ON
Read the entire instruction before programming.
Ser1 OFF
P1 5˚C/22˚F
P3 0
P4 315˚C/600˚F
P5 reU
P6 4-20
P9 AL1.P
P10 H.A.
P11 nonE
P16 0
P17 SFtA
P18 norL
P19 norL
P24 reU
P25 OFF
P28 0
P29 0n
P30 0
P34 OFF
P36 tn.30
P37 0
P39 n0FL
P41 P.I.d.
P42 10.0
P43 Fn.SP
P44 0
SP 260°C/500°F
SP2 0
nnn 3111/OFF
AL1 315°C/600°F
HSA1 0.1
Pb 5.0
ti 5.00
td 0.00
1P 30.0
rL 204°C/400°F
rH
310˚C/590°F
Grd1 InF
Grd2 InF
OLH 100.00
toL InF
rnP InF
Figure 4
Figure 2
Figure 3
