Pin Assignment
SCB-1
R
3
4. PIN ASSIGNMENT

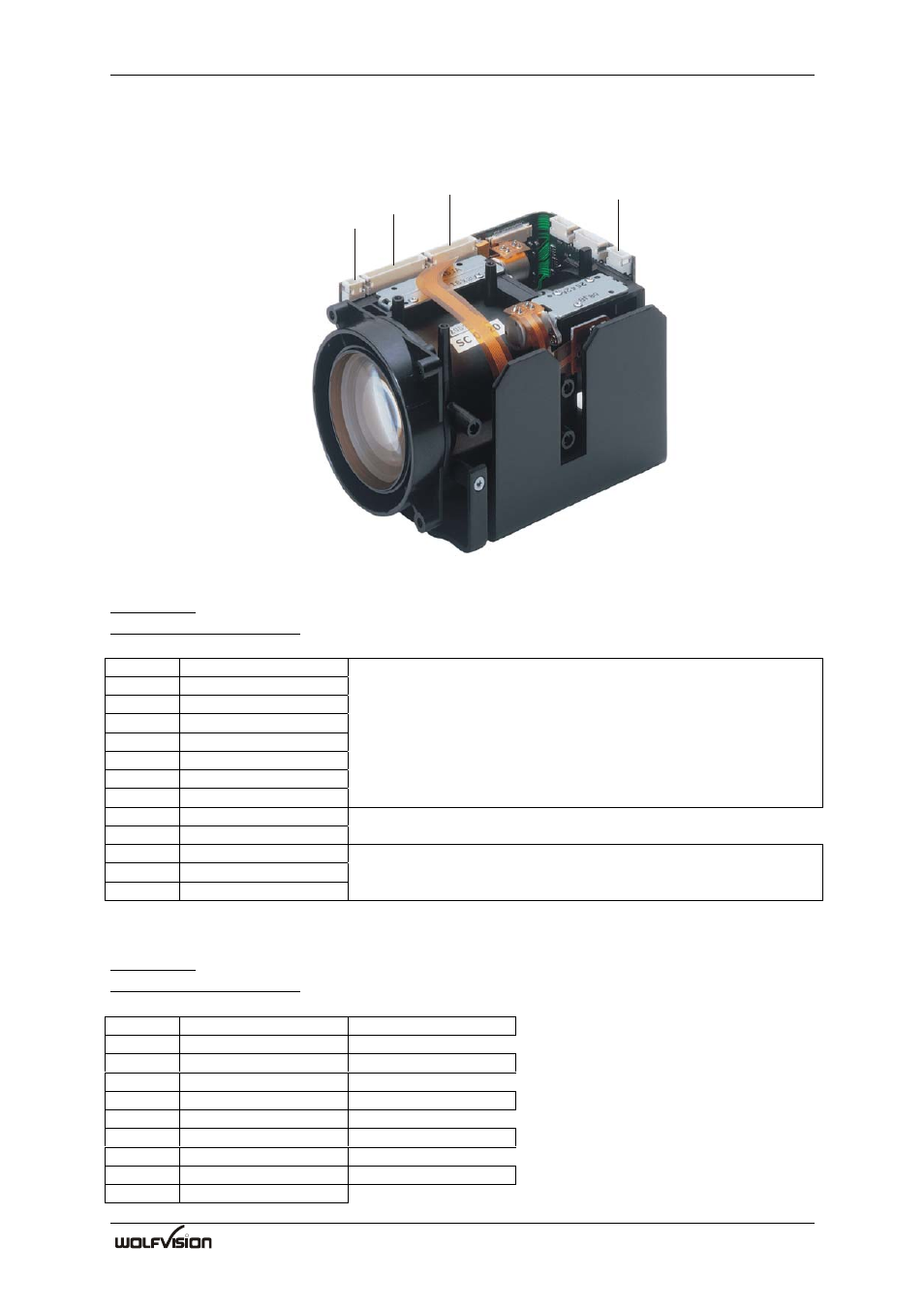

Connector position:
J1 Key Control
Board side: JST S13B-ZR
Cable connector housing: JST ZHR-13
J5 XGA-Output
Board side: JST S10B-ZR
Cable connector housing: JST ZHR-10
Pin 1
Key-Matrix Row 1
Pin 2
Key-Matrix Row 2
Pin 3
Key-Matrix Row 3
Pin 4
Key-Matrix Row 4
4 keys of the matrix are reserved for the
Pin 5
Key-Matrix Column 1
user, they can be checked via SCOTI (RS-232)
Pin 6
Key-Matrix Column 2
Pin 7
Key-Matrix Column 3
Pin 8
Key-Matrix Column 4
Pin 9
GND
Pin 10
AF-LED
Pin 11
User-LED 1
User LEDs are reserved for the user and can be
Pin 12
User-LED 2
controlled via SCOTI (RS-232)
Pin 13
User-LED 3
Pin 1
R
0.7 Vpp into 75 Ohm
Pin 2
GND
Pin 3
G
0.7 Vpp into 75 Ohm
Pin 4
GND
Pin 5
B
0.7 Vpp into 75 Ohm
Pin 6
GND
Pin 7
HD
3.2 Vpp into 2.2k Ohm
Pin 8
GND
Pin 9
VD
3.2 Vpp into 2.2k Ohm
Pin 10
GND
J6
J5
J1
J18
1
1
3
1
2
1
13
10
