Most fixtures start receiving on the address selected
EXAMPLE:
Setting ADDRESS at 1 unit starts at CHANNEL 1
Dip switch # 1 on
Setting ADDRESS for Setting ADDRESS for
17 unit starts at
49 unit starts at
CHANNEL 17 CHANNEL 49
Dip switch # 1 = 1 Dip switch # 1 = 1
“ # 5 = +16 “ 5 = 16
= 17 “ 6 = 32
= 49

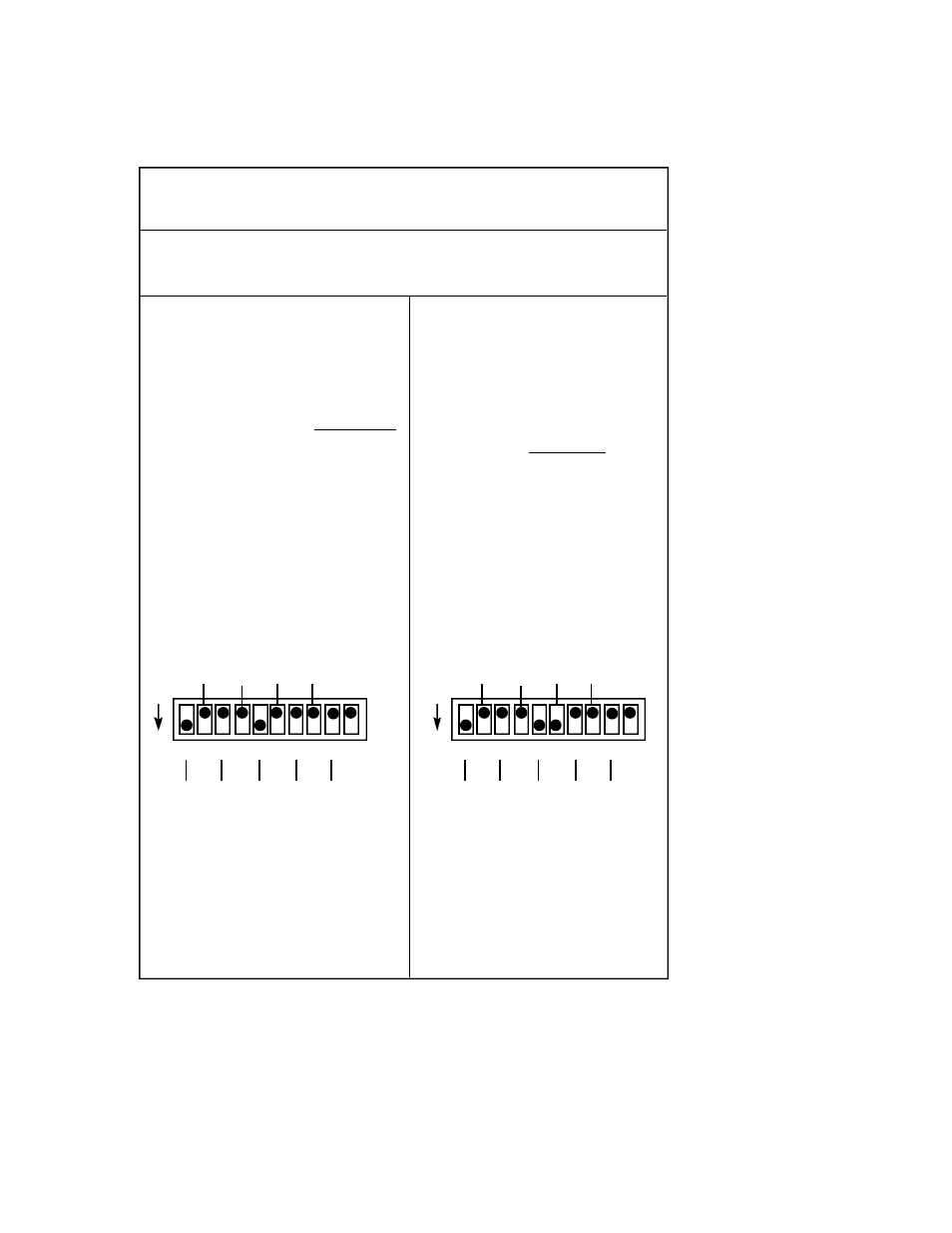

DIP SWITCH DMX ADDRESS
1 2 3 5 4 7 9 10 8 6
ON
1 4 16 64 256
2 8 32 128
DIP SWITCH DMX ADDRESS
1 2 3 5 4 7 9 10 8 6
ON
1 4 16 64 256
2 8 32 128
Dip switch total = 17
unit starts at
CHANNEL 17 Dip switch total = 49
unit starts at
CHANNEL 49
