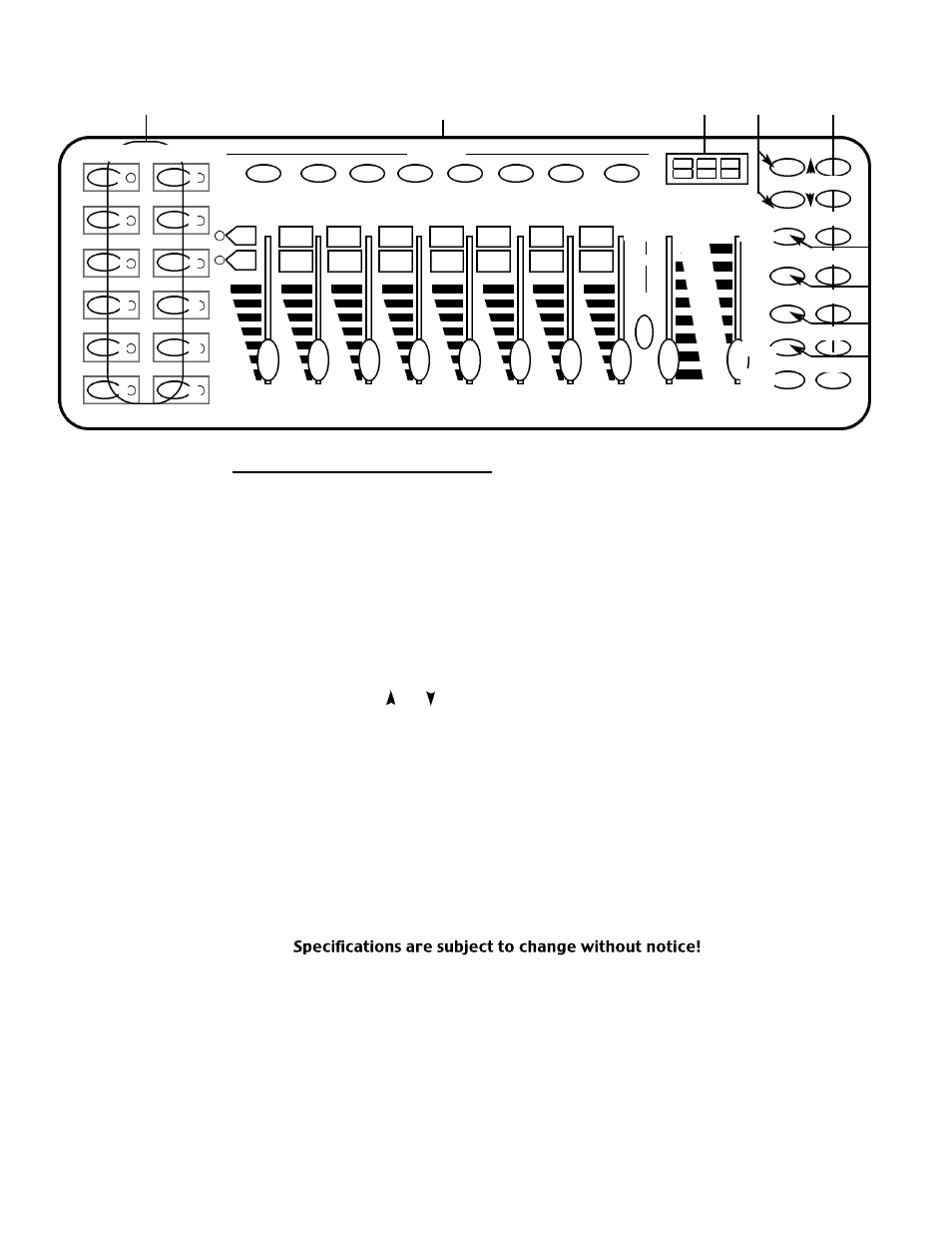

CONTROLS & FUNCTIONS
1. SCANNER BUTTONS- Used to Select any or all of 12 fixtures This is
what selects which DMX channels go to the fixtures.
Scanner 1 controls Channel 1 to 16
Scanner 2 controls Channel 17 to 32
See addressing of fixtures on page 7 for more information
2. SCENE BUTTONS- Used to store Scenes in program mode or
playback your scenes in playback mode
3. LCD DISPLAY- Displays values and settings depending on the
chosen function.
4. BANK BUTTONS ( OR )- Selects which Bank you want to use.
(there are 30 selectable banks total.)
5. CHASE - Used to select chases (1-6).
6. PROGRAM - Used to activate program mode Display blinks when
activated.
7. MIDI / REC - Used to control MIDI operation or to Record each
step for Scene and Chases.
8. AUTO/DEL- Select AUTO speed in chase mode or Deletes Scenes
and or chases .
9. MUSIC / BANK COPY- Used to trigger sound activation in Chase
mode or to copy a bank of scenes from
one to another in Program Mode
