WARN 3000 ACI User Manual
Page 12
PAGE 12
85366 Rev. A0
Wiring Instructions-continued
Switch Instructions

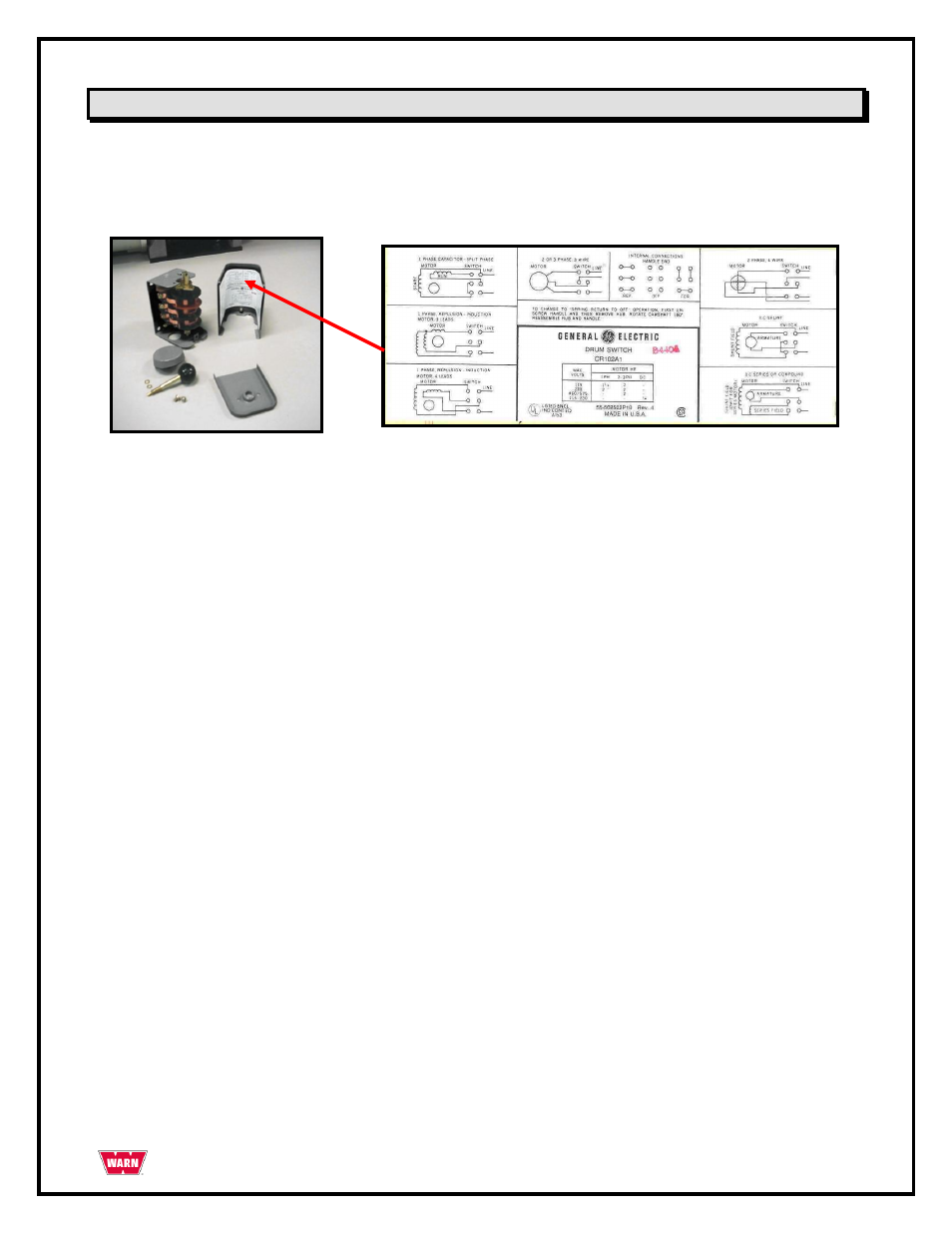

There is also a set of wiring diagrams inside the switch housing
Convert GE Drum Switch CR102A1 to ―Spring Return to OFF‖ configuration per instructions enclosed with
switch.
Verify that all wiring is positioned so that the wire rope or moving load will not damage it.
Always de-energize circuit when winch is not in use.
