Page 7
6

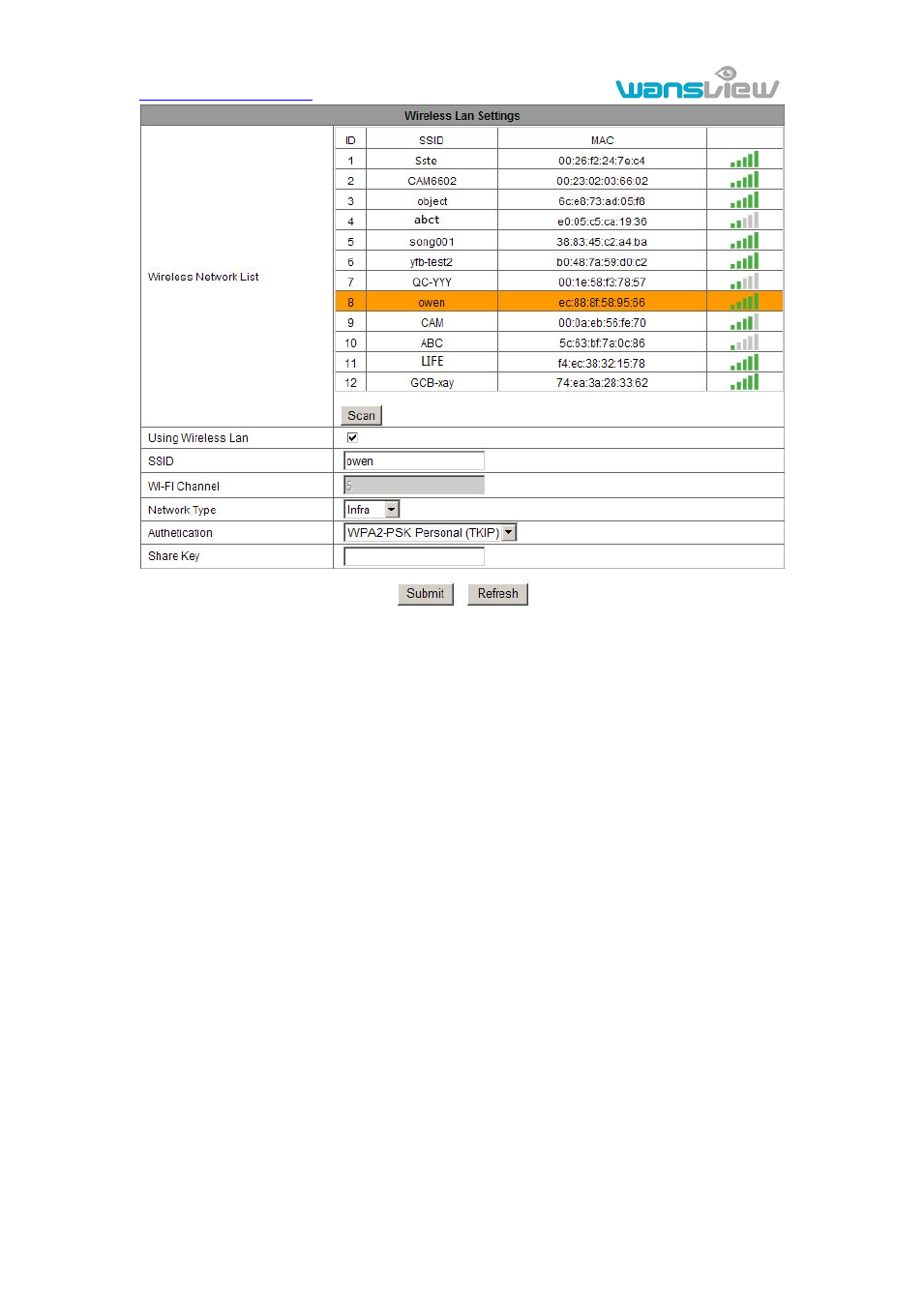

Figure 4
Enter the Wireless LAN Setting, click the “Scan” button, it will show you all the wireless
networks detected in the Wireless Network List column. Select one of them and tick
“Using Wireless Lan”, then the relevant data of the selected wireless network will be
shown in the following blanks. Input the password and click “Submit”, then the WIFI
setting is finished. Unplug the cable, then you can connect to router by wifi.
Notice: When the device is connected both WIFI and wired, it will firstly connect to the
wired network. If the camera enables DHCP to obtain IP address automatically, so the IP
address is not same in wired connection and wifi connection, recommend to set fixed IP
address for the camera.
2.3Connecting to WAN
You should connect the LAN network to WAN first and do the port forwarding, connect as
figure 5.
