ENCLS/MBOX/IQ22x Metal Box Installation Instructions TG200204 Issue 1/B 8/4/02

ENCLS/MBOX/IQ22x

Installation Instructions

2

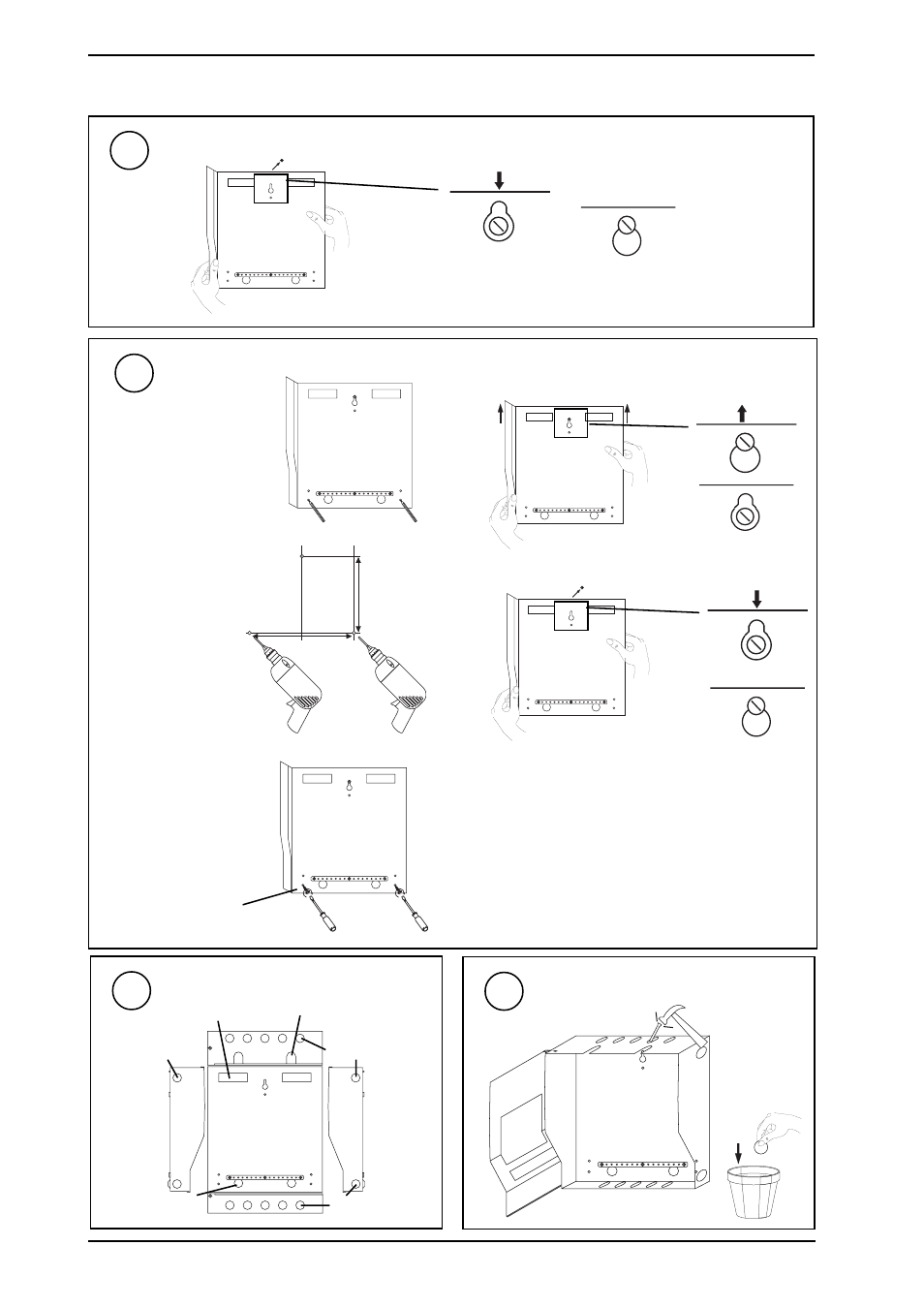

Hang on screw

5

INSTALLATION

(continued)

Fix screws

6

a

spot holes

b

lift off screw

c

drill holes

209 mm

227 mm

d

hang on screw

e

fix screws

Ø 6 mm

Select cable entry

7

Remove knockouts

(if appropriate)

8

M20 hole

M20 knockouts

M20 knockouts

for 25 Way D type

M20 slots with grommets

M20 knockouts
