TIF ZX Heated Pentode Refrigerant Detector User Manual
Page 17
15
6 . Install the flexible probe by threading it clockwise onto the threaded brass bushing
around the sensor until it is finger tight .
caution: to prevent personal injury and equipment damage, neVeR
operate the unit without the flexible probe correctly installed. sensor
contamination, erratic performance, and other problems may occur.
additionally, the sensor will become quite hot during operation, which
could be dangerous.
PRobe tiP anD filteR
The pointed tip of the flexible probe is removable for cleaning and access to the filter
cartridge (see Figure 9) . Once the tip is removed, access to the filter cartridge is
possible .
1 . Remove the probe tip by firmly grasping both the probe and the tip and rotating the
tip counterclockwise .
2 . Inspect the filter inside the filter cartridge . If any discoloration or particulate is visible,
the filter cartridge should be discarded and replaced . A pack of replacement filter
cartridges is included with your unit; refer to the Replacement Parts section to order
additional cartridges .

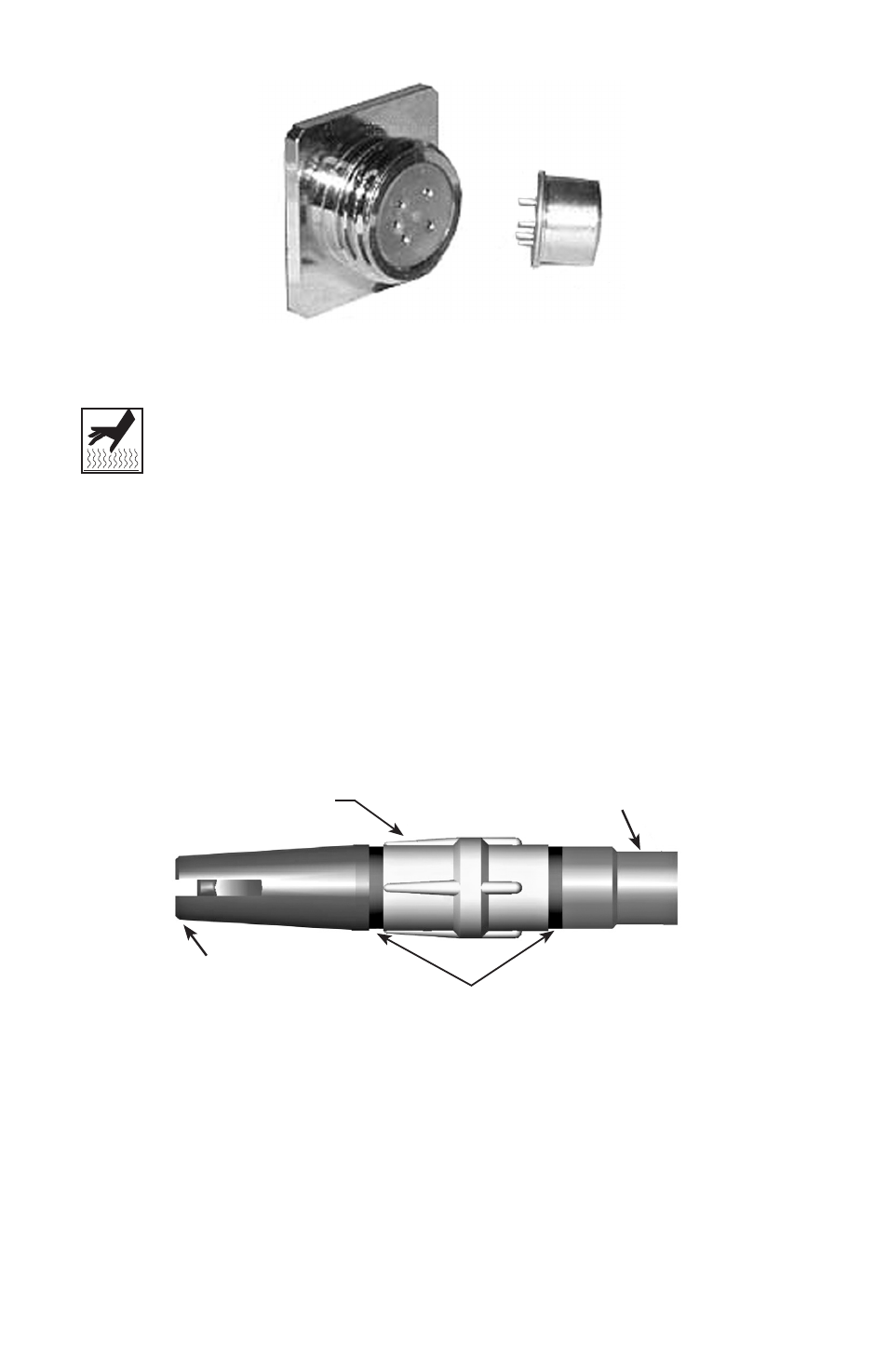

Filter Cartridge
Install as shown .
Tip
O-Rings
Probe Assembly
Fig . 9
Fig . 8
Threaded Bushing
Pins
Sensor
