Chapter 3 Configuration
37
3.4.8 Status

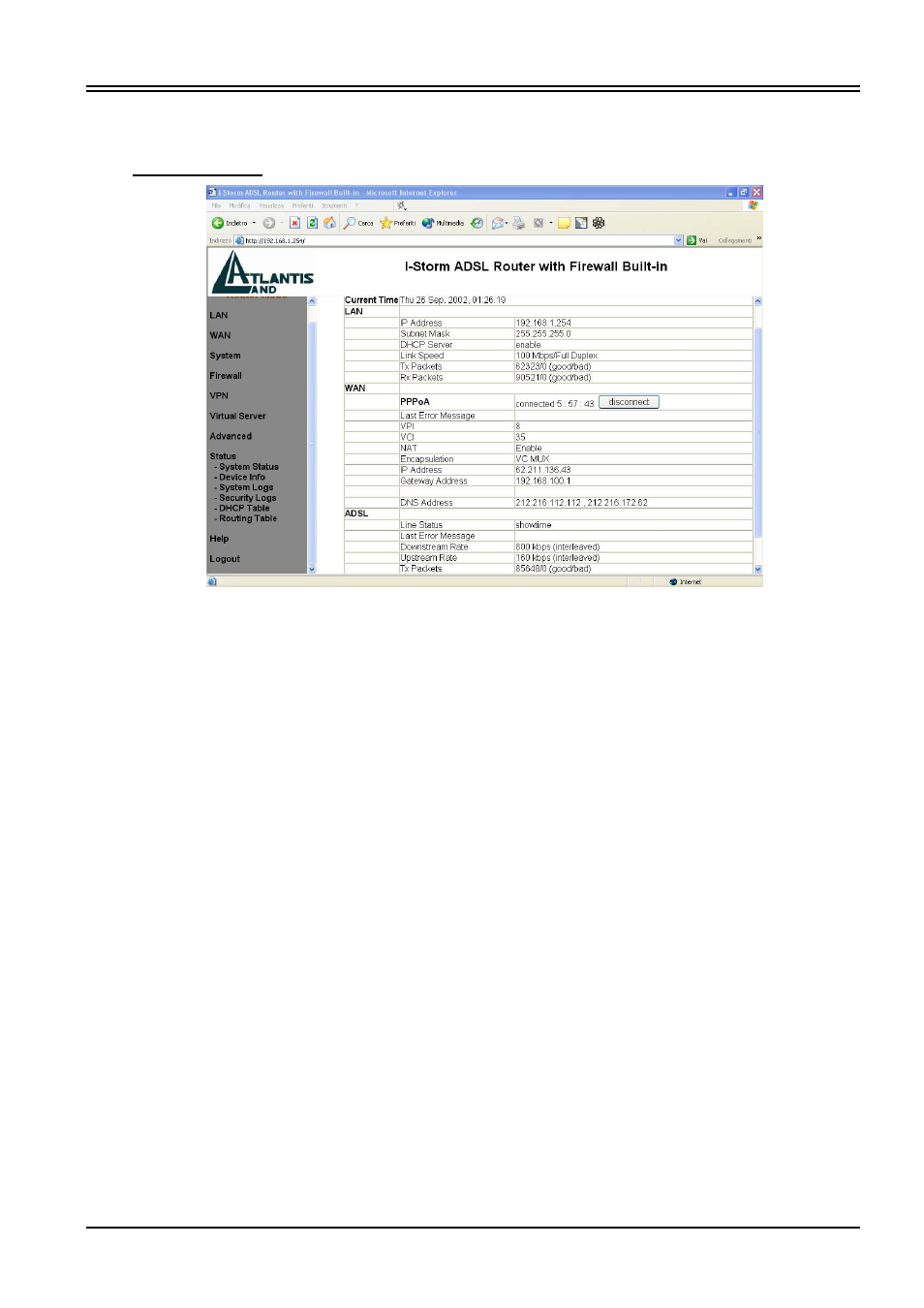

System Status
Display the current LAN, WAN, and ADSL connection status.
The first line under the WAN segment displays the WAN-ISP protocol you set. You can see the
status of connection from its right-side column.
As for “PPPoE” and “PPPoA” protocol, the right column seems some kind different. There is a
button beside the connection status. When the PPPoE/PPPoA status is disconnected, you can
click the “Connect” button to logon your ISP. Whenever you want to disconnect from your ISP
under connected status, just click the “Disconnect” button.
This page will refresh automatically every 15 seconds, which enables you to get the most
updated status of your system. You can also click the “Refresh” button to get the latest
information of system status manually.
