Atlantis Land I-STORM ADSL ROUTER

4

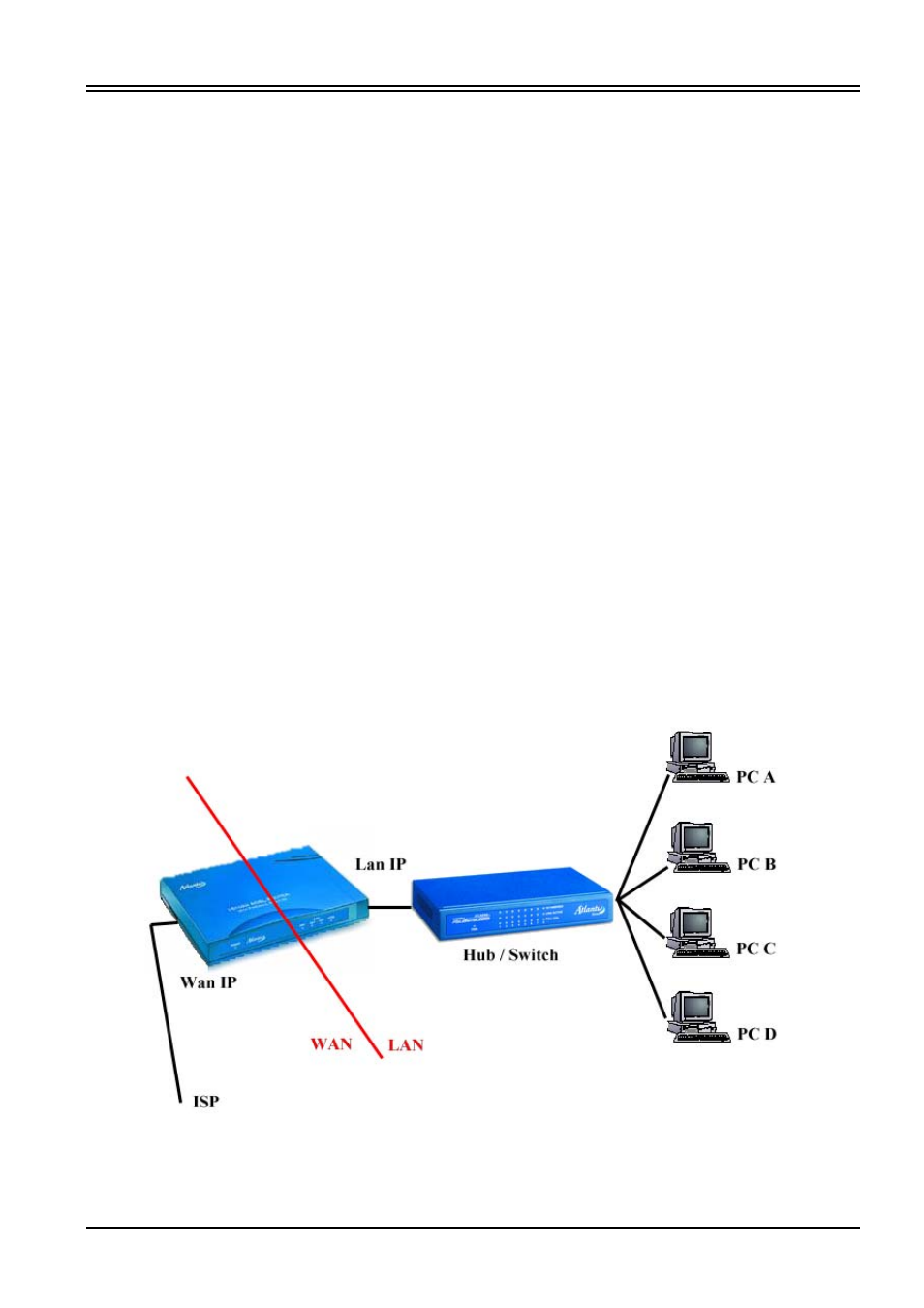

1.4 I-STORM ADSL ROUTER Application

A) Connect WAN port (LINE) to the phone line by RJ11 cable (into packing)


B) L’I-Storm Router ADSL can be connect, by RJ45 port (LAN), like instructions:

1.

Directly to the PC, by CAT 5 crossover cable (into packing).

2.

To Hub/Switch into UPLINK port by CAT 5 crossover cable (into packing).

3.

To Hub/Switch by CAT 5 cable.



C) Connect AC-DC power adapter (2.6A, 5V) to the electric line and to POWER port on back
pannel.


D) It’s possibile to connect I-Storm Router ADSL to a PC by RS232 cable (into packing) for
configuration.
