Agri-Fab 45-0460 User Manual

Page 5

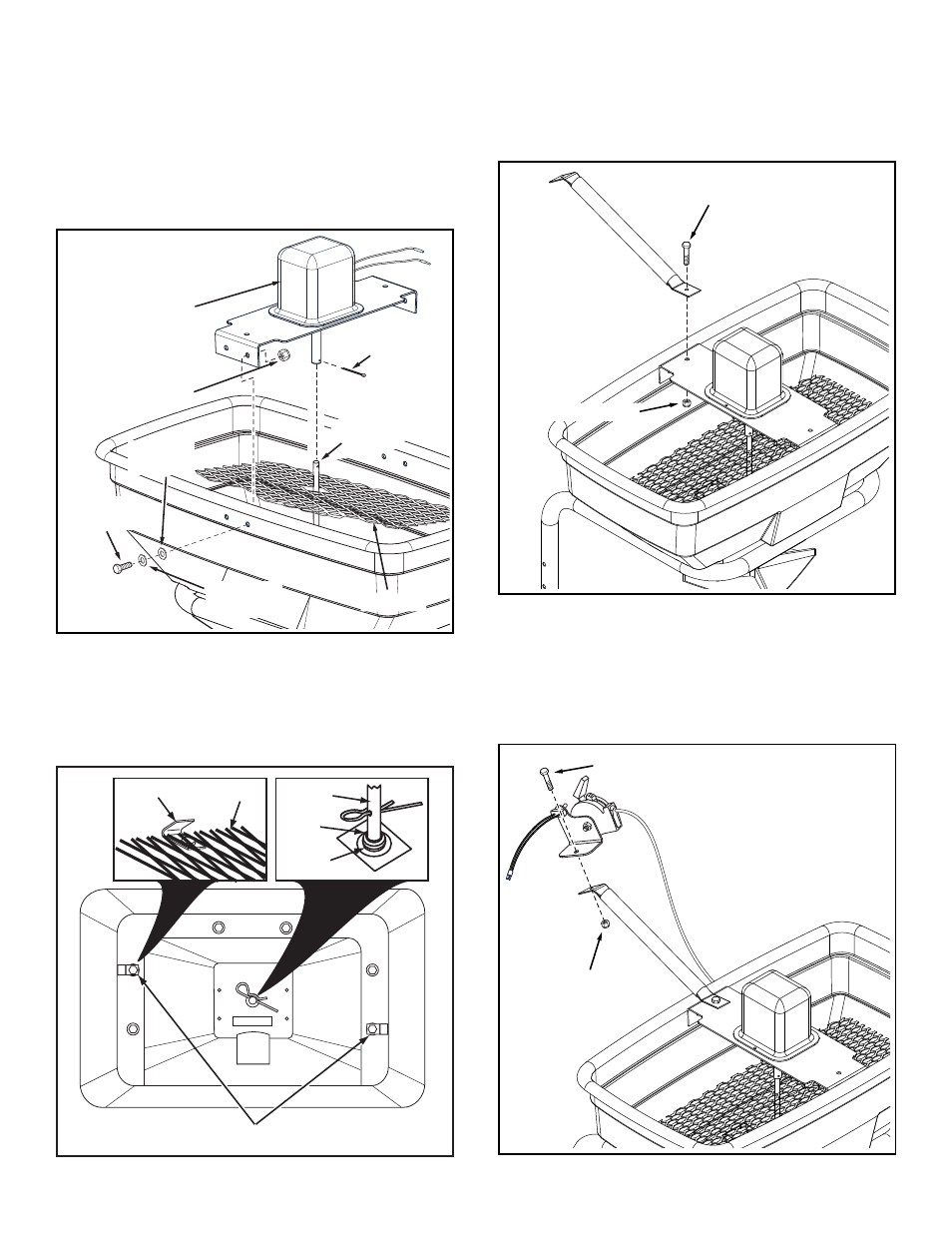

FIGURE 5

FIGURE 6

5/16" x 1"
HEX BOLT

NYLON
WASHER

5/16"
NYLOCK NUT

MOTOR

ASSEMBLY

5/16" FLAT
WASHER

SCREEN

1/8" x 1-1/4"
COTTER PIN

SPREADER
SHAFT

CLIPS

CLIP

SCREEN

SHAFT

SEAL

BUSHING

Place screen down into hopper.

DO NOT place it under

the clips in bottom of hopper at this time. See figure 6.
Place motor assembly down into hopper, inserting end of

10.

spreader shaft into impeller coupler. Secure it with a 1/8"
x 1-1/4" cotter pin, spreading ends of pin around coupler.
See figure 5.
Fasten motor mount bracket to hopper using four 5/16" x

11.

1" hex bolts, 5/16" flat washers, nylon washers and 5/16"
nylock nuts. See figure 5.

Lift screen up and slide seal down spreader shaft to rest

12.

against plastic bushing in bottom of hopper. See figure 6.
Slide one edge of the screen under one of the clips.

13.

Then, slightly bow the screen to slide the opposite
side of the screen under the other clip. See figure 6.

FIGURE 7

5/16" x 1"
HEX BOLT

5/16" NYLOCK NUT

Attach the control mount tube to the top of the

14.

spreader using a 5/16 x 1" hex bolt and 5/16" nylock
nut. See figure 7.

NOTE: The end of the control mount tube with the smaller
bend should be attached to the spreader.

FIGURE 8

5/16" x 1"
HEX BOLT

5/16" NYLOCK NUT

Attach the flow control to the control mount bracket

15.

using a 5/16" x 1" hex bolt and a 5/16" nylock nut.
See figure 8.
