4
CAUTION: PARTS OF TRACTOR
MAY BE HOT! MAKE SURE ENGINE
AND MUFFLER ARE COOL BEFORE
INSTALLING SPREADER!
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED FOR ASSEMBLY
(1) Pliers
(2) 7/16" Wrenches
(2) 1/2" Wrenches

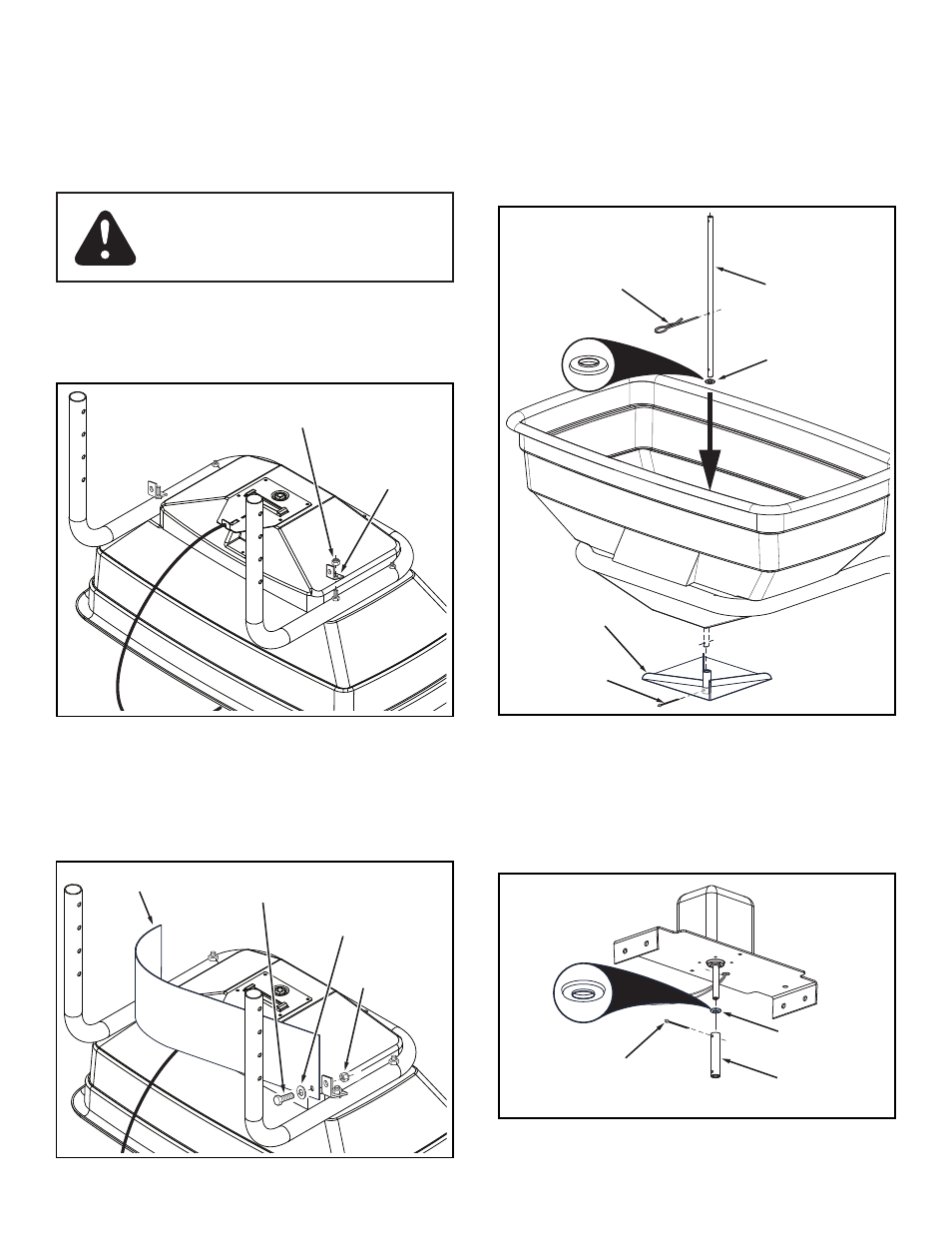

FIGURE 1
Turn the spreader upside down as shown in figure 1. 1.
Assemble two angle brackets and two 1/4" nylock nuts 2.
onto the ends of the longer bolts already assembled to
the frame tube.
Do not tighten yet. See figure 1.
FIGURE 2
Fasten deflector to angle brackets using two 1/4" x 3.
3/4" hex bolts, 1/4" flat washers and 1/4" nylock nuts.
Allow angle brackets to swivel so deflector curves
naturally between angle brackets and then
tighten all
nuts. See figure 2.
Insert agitator hairpin into middle hole in the spreader 4.
shaft. Assemble a seal (turned as shown in figure
3) onto end of the spreader shaft closest to hairpin
agitator. See figure 3.
Slide end of spreader shaft having the seal through the
5.
plastic bushing in the bottom of hopper. See figure 3.
Slide the impeller onto the spreader shaft and secure
6.
it with a 1/8" x 1-1/4" cotter pin. See figure 3.
FIGURE 3
ANGLE
BRACKET
1/4" NYLOCK NUT
1/4" FLAT
WASHER
DEFLECTOR
1/4" x 3/4"
HEX BOLT
1/4"
NYLOCK NUT
IMPELLER
1/8" x 1-1/4"
COTTER PIN
AGITATOR
HAIRPIN
SEAL
SPREADER
SHAFT
FIGURE 4
Assemble a seal (turned as shown in figure 4) onto 7.
the motor shaft. Slide it up against the motor.
Assemble the impeller coupler onto the motor shaft
8.
and secure it with a 1/8" x 1-1/4" cotter pin. Spread
the ends of the pin around the coupler. See figure 4.
1/8" x 1-1/4"
COTTER PIN
SEAL
IMPELLER
COUPLER
