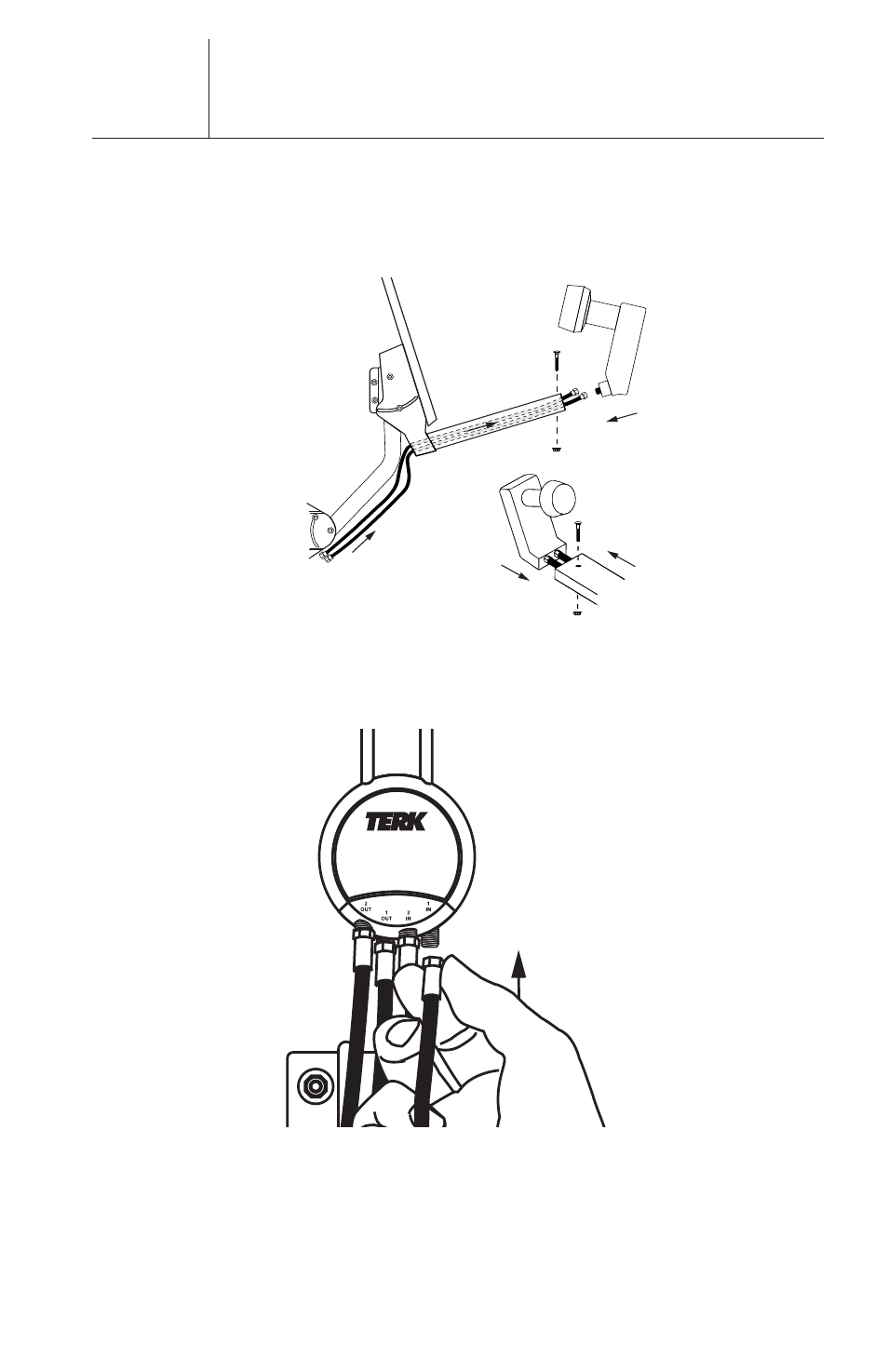

4. Slide 2 black 32”antenna cables up through the satellite arm
and connect to the LNB. See Fig 8.
5. Reconnect the LNB to the dish arm. See Fig 8.
6. Connect the remaining end of the 2 black 32” antenna cables to
the IN 1 and IN 2 terminals on the TV42 antenna. See Fig 9.
7. Continue to “Installing the Indoor Diplexers.”
TV42
Fig 7, 8
Fig 8.
Fig 9.
