USB2/USB2-HSIC Decode and Trigger
Working with the Result Table
By default, a table summarizing the decoder results appears below the grids whenever a decoder is enabled.
The result table provides a view of message data as decoded during the most recent acquisition, even when
messages are too compact to allow annotation on the waveform trace.
The table is displayed only when the View Decode checkbox is marked on the Decode Setup Dialog and a
source signal has been decoded using that protocol.
You can customize the result table , changing both the number of rows and the columns displayed.
The default is one row. On a single-row table, touch the Down arrow at the far right to open a
scrollbar that let's you display the previous or next row to data.
You can also export result table data to a .CSV file, and the table itself is useful for navigating and
measuring .
This extracted USB2 and USB2-HSIC data appears on the decoder result table.
Column Extracted or Computed Data
Idx (always shown) Number of the line in the result table.
TransIdx Number of the transaction in the signal, labeled Tx. Packets and idles belonging
to this transaction are all prefixed with this number.
Time(µ) Time in microseconds elapsed from start of acquisition to start of transaction
TransType Transaction type
ItemType Packet type
DevAddr Device Address
Endpoint Endpoint
Details Extracted values

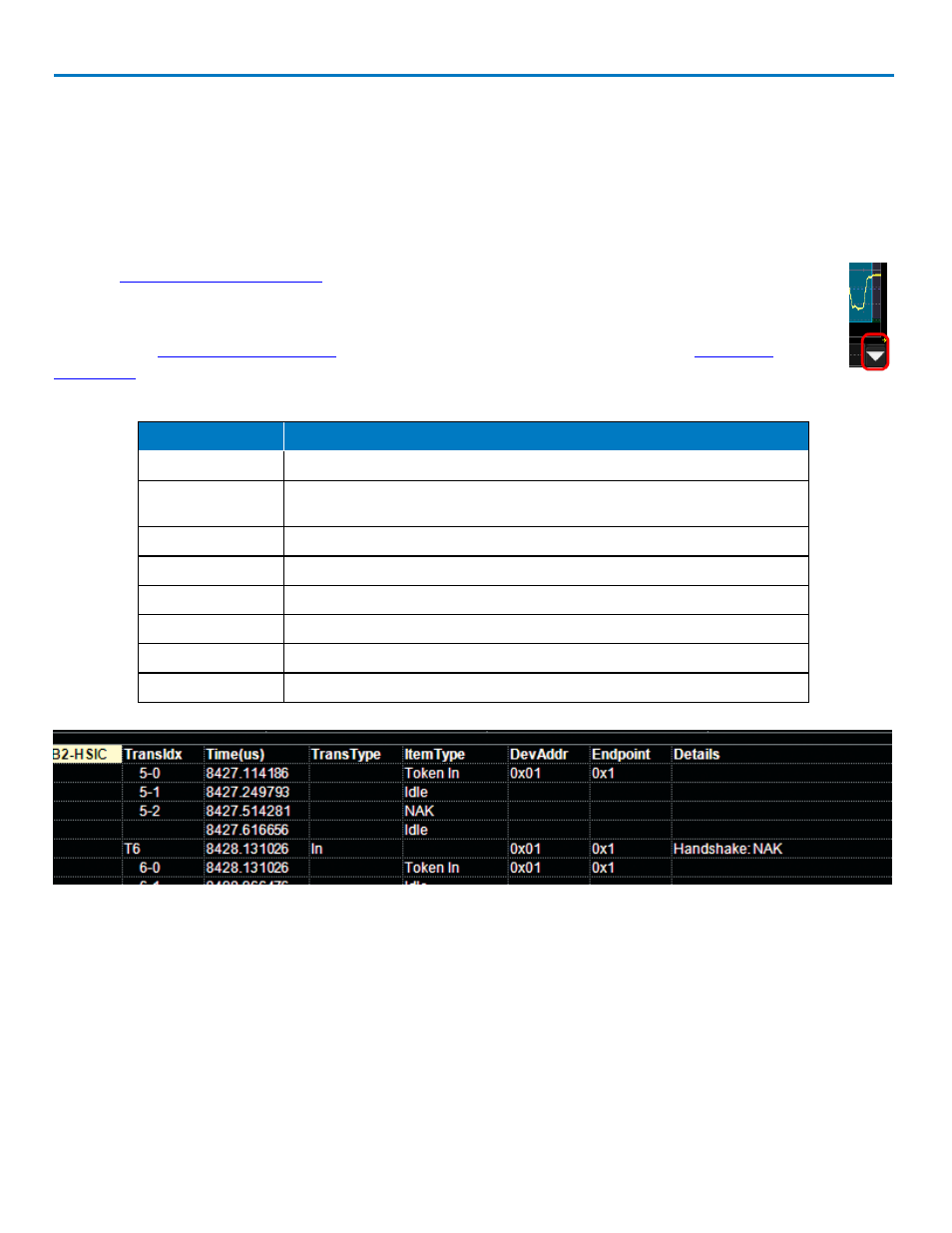

Section of typical USB2-HSIC result table.
