USB2/USB2-HSIC Decode and Trigger

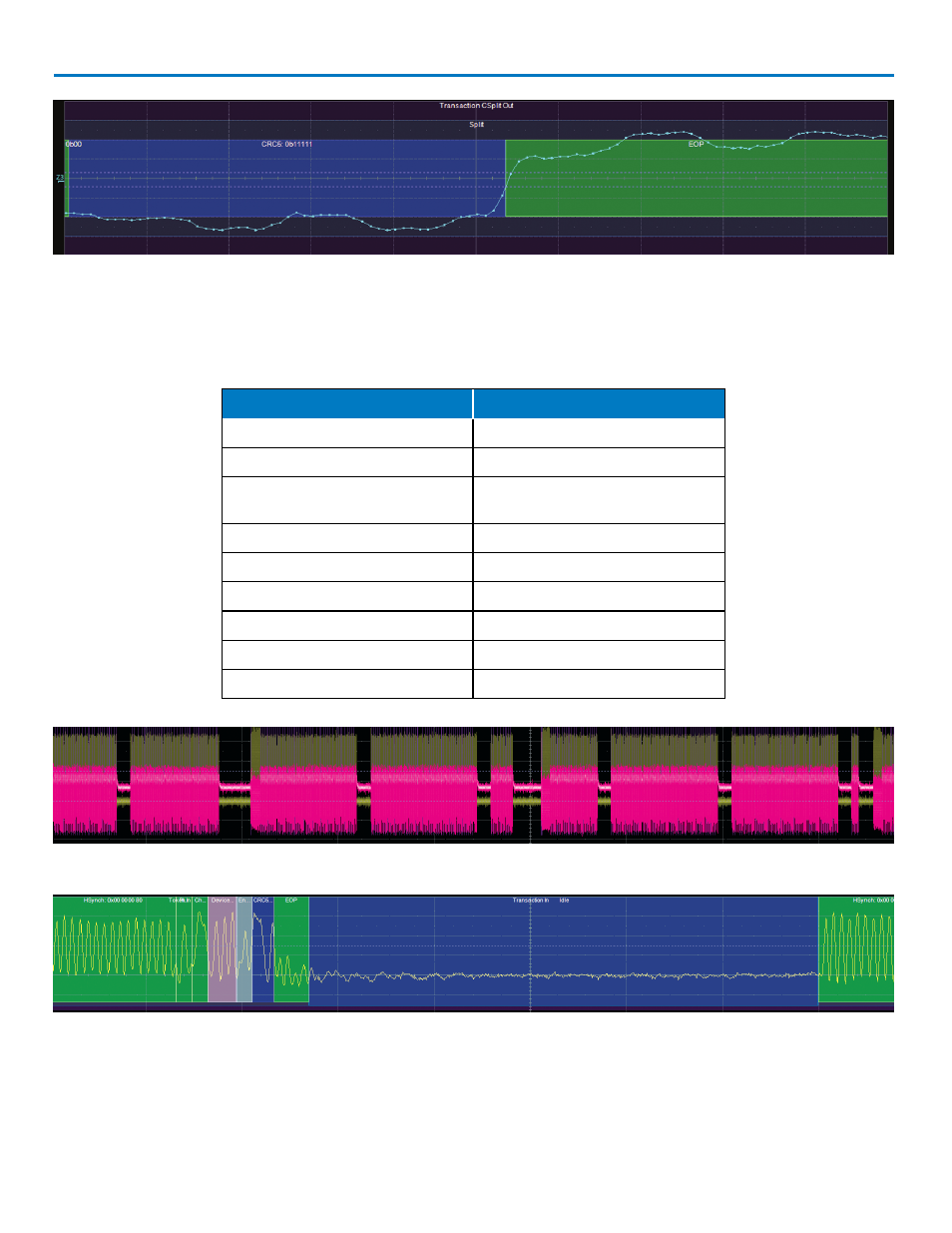

Zoom of transaction, showing annotation details.
HSIC W AVEFORM A NNOTATIONS
These overlays appear on an HSIC waveform or its Zoom trace to highlight key elements of the decoded
signal (some annotations are not shown on the screen-shot).
Annotation Overlay Color
Transaction Dark Purple (behind all fields)
Packet (Handshake, Token, or Data) Charcoal (behind fields)
Control Sequences (Synch bits, PID
bits, Check bits, EOP bits) Green (different label over each field)
Device Address Light Purple
Endpoint Grey
Data Payload Green
CRC5 or CRC16 Royal Blue
Inter-packet Idle Royal Blue
Inter-transaction Idle Blue-Green
Initial decode of HSIC waveform.
Zoomed HSIC waveform showing annotations.
