INTRODUCTION
QPHY-USB3-Tx -Rx is a software package designed to capture, analyze, and report measurements in
conformance wit h SuperSpeed USB electrical specification standard. A copy of the specification can be found at
www.usb. org .
Compatibility
QPHY-USB3-Tx -Rx is a software option compatible with the following LeCroy X-Stream oscilloscopes:

WM813Zi, SDA813Zi, DDA813Zi (4x40 GS/s, 2x80GS/s) and higher bandwidth equivalents.

SDA II and Eye Doctor II software is required.
The TF-USB3 test fixture set is required for QP HY-USB 3-Tx-Rx. This fixture set includ es an A-Plug, A-Receptacle
and B-Receptacle fixtures. The Tx+, Tx-, Rx+ and Rx- signals are routed via low loss traces to SSMP connectors .
Eight 2 inch SSMP to SMA cables are provided with the TF -USB 3 kit.

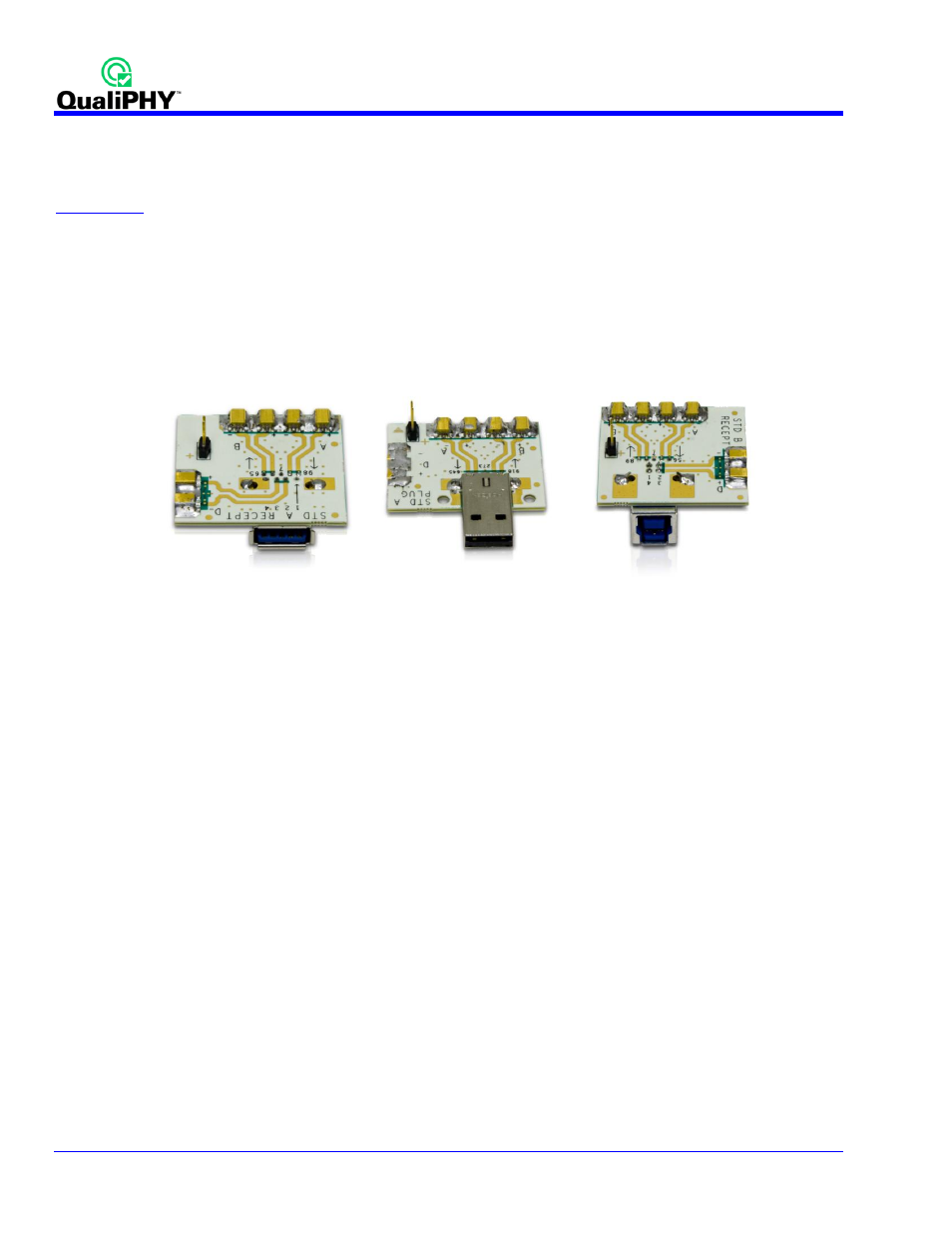

Figure 1 - TF-US B3 Fixture Set
Additional Options Equipment Available from LeCroy

Eagle PeRT
3
System (1 channel) – PER-R006-S01-X
o Eagle Receiver Tolerance Test Suite – PER-R006-008-A
o Eagle USB 3. 0 Receiver Test Suite – USB-R006-001-A

Keithley S46 RF -Microwave S witch System with 8 SPDT Relays – RF-Switch-8-SPDT

Pair of +/- 1ps phase matched cables (8 inches) – Matched-SMA-Cables-8inch-Pair

Pair of +/- 1ps phase matched cables (12 inc hes) – Matched-SMA-Cables-12inch-Pair

Pair of +/- 1ps phase matched cables (18 inc hes) – Matched-SMA-Cables-18inch-Pair

Pair of +/- 1ps phase matched cables (24 inc hes) – Matched-SMA-Cables-24inch-Pair

GPIB Host Option for LeCroy Oscilloscope – GPIB-HOST
