Page 12
12
920457 Rev B
Customizing QualiPHY
The predefined configurations in the Configuration screen cannot be modified. However, you can create
your own test configurations by copying one of the standard test configurations and making modifications.
A description of the test is also shown in the description field when selected.

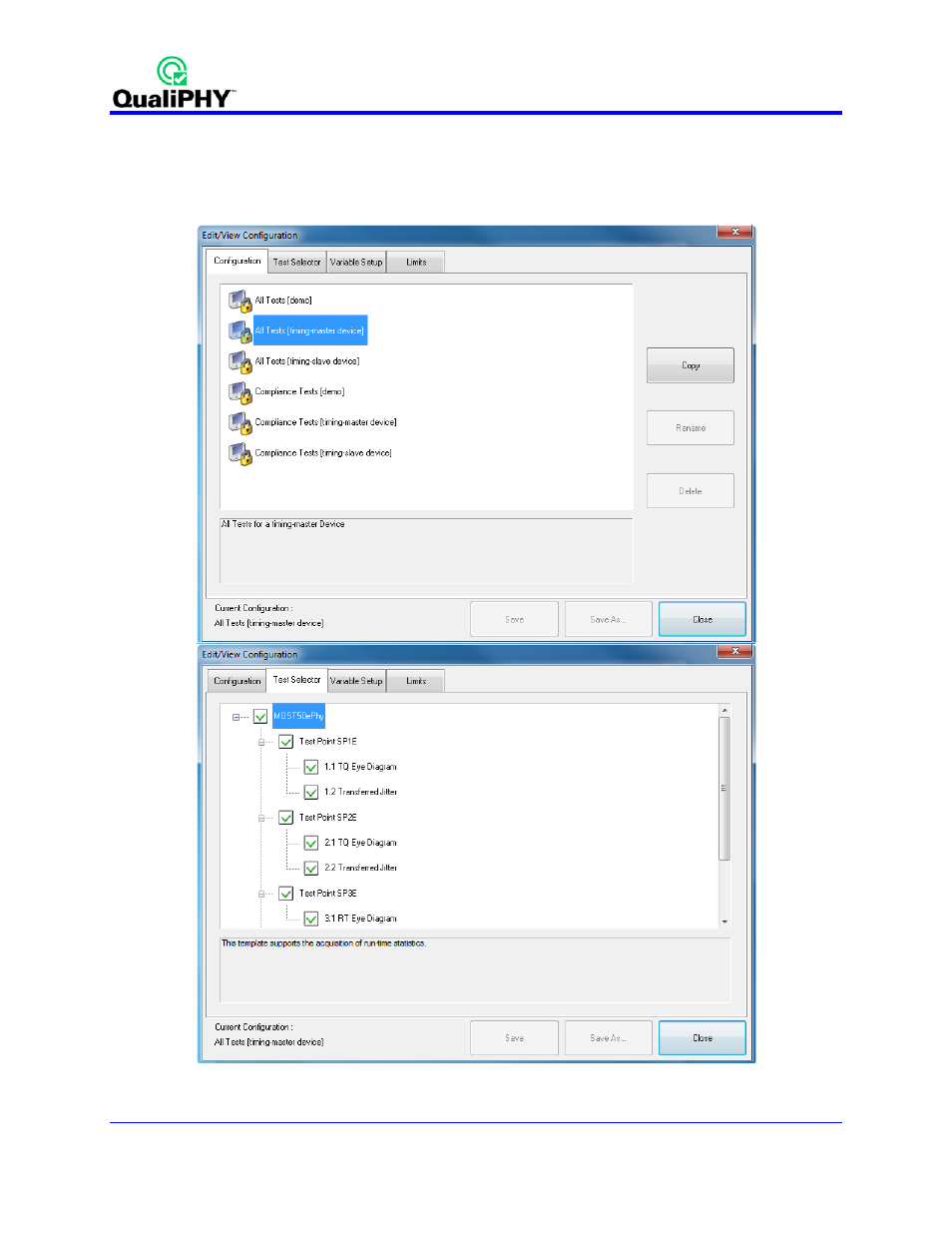

Figure 5 - QualiPHY test item selection menu
