Operator's Manual
7. When setup is complete, press Run to begin the test. The Run button changes to Pause as the test is
running.

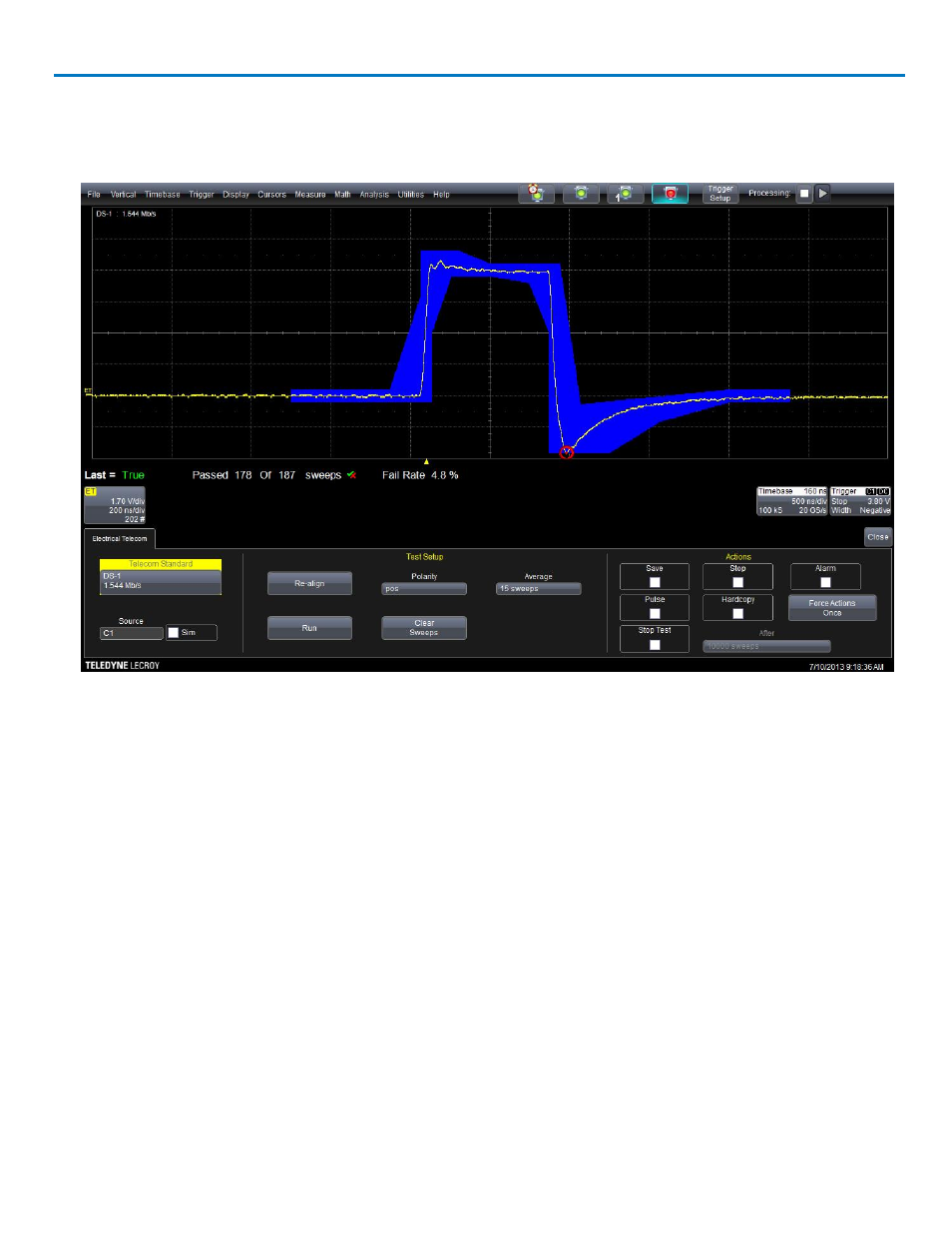

The example below shows a stopped test with a failure identified (red circle).
8. To pause the test without resetting the counter, press Pause. Press Run again to resume testing.
To stop the test and reset the counter, press Clear Sweeps.
923136 Rev A
5
