C OMPUTER A CCESS T ECHNOLOGY C ORPORATION USB D ESCRIPTOR D EFINITION (. DSC ) F ILES
Reference Manual
FormatValue=Device compliant to the USB specification
version %X.%02X
The output is displayed in the Description column of the descriptor information
box:
Size
Use Size to indicate the number of bytes in the field. Example:
Size=2
Units
Use Units to take the Offset value and multiply it by the units value; the resulting
value can then be pulled into a FormatValue entry. The following example is
taken from the MaxPower description from the CONFIGURATION Descriptor
group in standard.dsc:
; MaxPower description
Offset(8)={
Units=2
FormatValue=Maximum power consumption of the device
in this configuration is %i mA
}

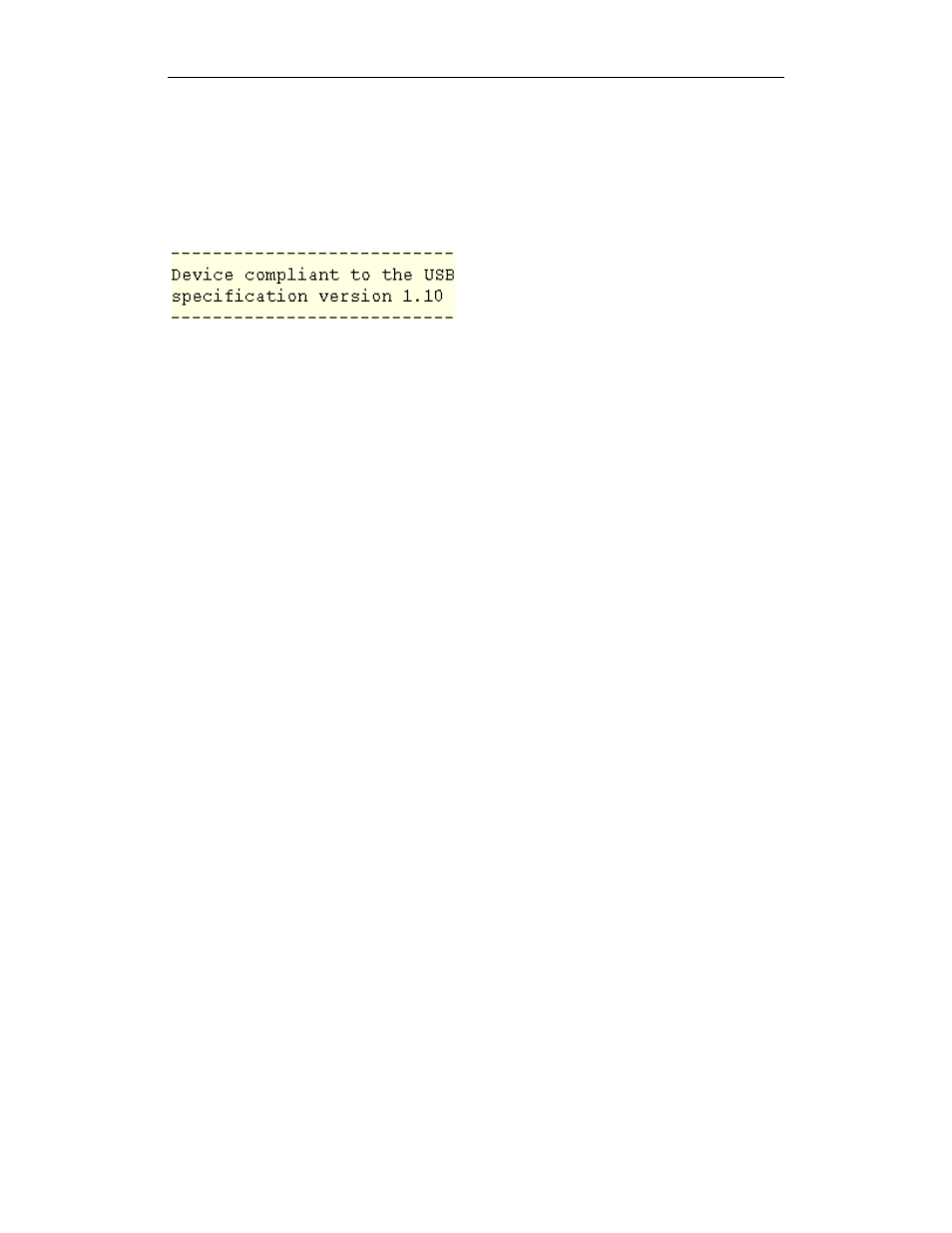

Figure 18: Possible output for BCD=TRUE
and conversion specification %X.%02X
