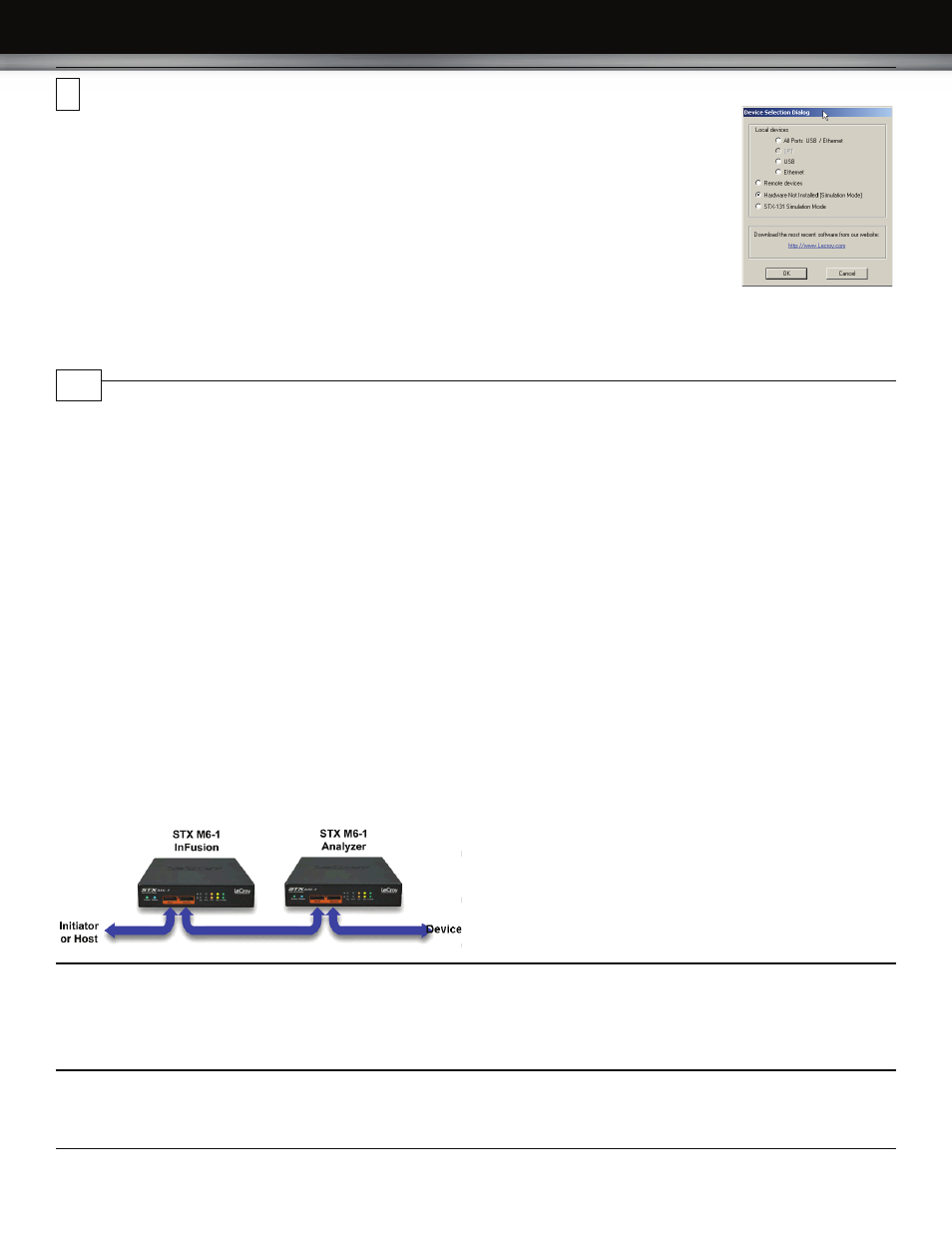

Starting the Application

To launch the software, double-click the SAS or SATA icon. The first time you run your software,
the software displays the Device Selection dialog. Select an interface and click OK to display the
software

Operating in Simulation Mode
The system operates in Simulation Mode by default, if the software detects no hardware. However,
you can operate in Simulation Mode directly, without installing the hardware. To operate without
hardware, select Hardware Not Installed (Simulation Mode) in the Device Selection dialog box
and click OK.

To start using the hardware and software, see the InFusion chapter of the STX M6-1 User Manual, located on the
installation disk.

9

Operating the STX M6-1 System

Depending on the software license(s) purchased with the unit, the STX M6-1 has SAS and SATA protocol capability or has
SATA only. Use the SAS Protocol Suite or SATA Protocol Suite applications, respectively.
InFusion
To inject errors and modify traffic, click the InFusion toolbar button in the main software screen to display the InFusion
window. Define scenarios and run them. For more detail about operation, see the InFusion chapter of the
STX M6-1 User Manual.
STX M6-1 Protocol Analyzer
LeCroy also offers the STX M6-1 SAS/SATA Protocol Analyzer, a portable single-port system. The SAS analyzer software
performs serial bus analysis for Serial Attached SCSI (SAS) data transfers, as well as Serial ATA (SATA) data transfers
through STP data transfers. The SATA analyzer software performs serial bus analysis for Serial ATA (SATA) data transfers.
The analyzer can operate at 1.5, 3, or 6 Gb/s data rates and has 2 GB or 4 GB of recording memory.
The analyzer supports capture, triggering, and filtering of Serial Attached SCSI packets or Serial ATA packets. The
analyzer provides for bi-directional trigger and capture of commands, primitives, patterns and all bus conditions. You can
capture all frames and/or exclude traffic. You can trigger manually or trigger on a specific event.
The analyzer provides a full range of views and statistical reports. Statistical reports provide event and error counters, as
well as performance metrics, that give users a snapshot into capture.
Analyzer and InFusion
STX M6-1 Protocol Analyzer and InFusion can be used in tandem to combine simultaneous error injection and trace
capture/analysis capabilities.

10
