In general, the higher the performance of the host machine, the better user experience you get. Please refer to the Readme notes and
Summit T3-8 User Manual for recommended configurations and additional information.
User manuals for your Teledyne LeCroy PCI Express products can be found in Start > All Programs > LeCroy > PETracer > PCIe
Protocol Suite Documents.
To install the software, follow the steps below:
1.
Insert the CD into the CD-ROM drive of the host machine that will control the Analyzer. The installation window displays links to
software installation, user manuals, application notes, and data sheets.
2. Select Install PCIe Protocol Suite and follow the on-screen instructions. The PETracer software installs automatically on the host
machine’s hard disk. During installation, all necessary USB drivers will be installed.
3. To start the application, launch the PETracer program from the Start menu: Start > All Programs > LeCroy > PETracer > LeCroy
PETracer
Software installation can also be downloaded from the Teledyne LeCroy website.
8
Setting Up and Connecting the Summit T3-8 Analyzer
You can connect the Analyzer to the host machine using USB or Ethernet.
Using an Ethernet Connection
To set up the Analyzer using an Ethernet connection:
1.
Install PETracer software on the host machine.
2. Connect the Analyzer to a 100-volt to 240-volt, 50 Hz to
60 Hz, 120 W power outlet using the provided power cord.
3. Connect the Ethernet cable between the Ethernet port on the
Analyzer and a Ethernet port in the local network.
4. Turn on the power switch on the front of the analyzer.
Note 1: No driver installation is needed for Summit T3-8 to
operate over a network.
Note 2: At power-on, the Analyzer initializes and performs a
self-diagnostic. The results are reflected by messages on the
Summit T3-8 LCD display. If the LCD display indicates
failure, call Teledyne LeCroy Customer Support for
assistance.
Note 3: Summit T3-8 is configured at the factory to use dynamic
IP setting and will get all required network parameters from
the DHCP server on your network. If the DHCP server is not
available, or to connect Summit T3-8 directly to the host
machine, you can reconfigure the network settings of Summit
T3-8 using the menus in the LCD display on the front of the
analyzer (see the “LCD Menus” part of section 4 of this
document).
Connecting to Summit T3-8 in the software
Start the PETracer software and perform the following procedure to
connect to a Summit T3-8 analyzer over the network.
1.

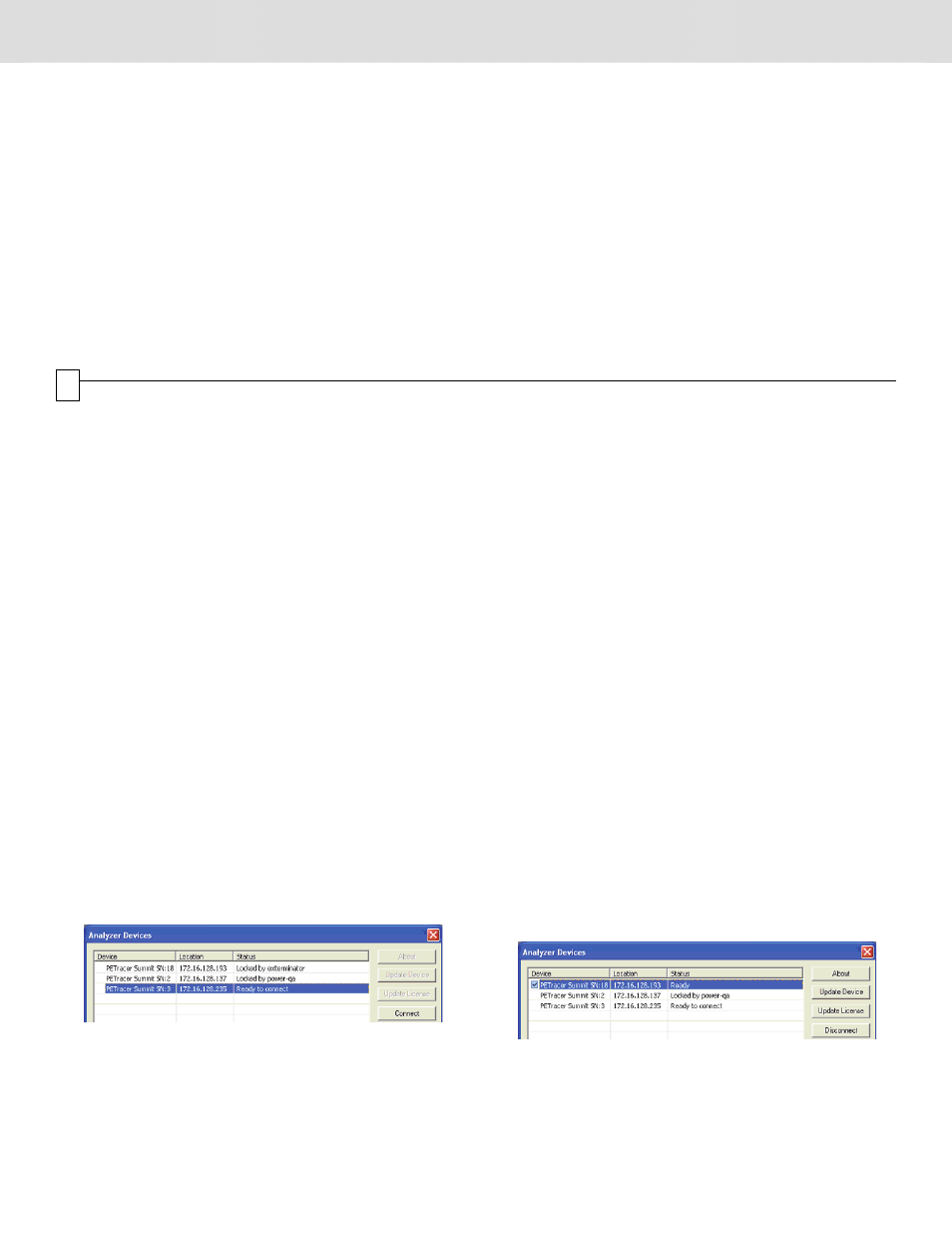

Select the Setup > All connected devices… menu in the
PETracer application to display the Analyzer Devices dialog.
The Summit devices in the list are marked:
•
Locked: Some other client on the network is already
connected to that device
• Ready to connect: Available for connection
2. Select your Summit T3-8 device in the list and press the
Connect button to execute the connection procedure. After
the connection is established, the application displays the
Connection Properties dialog.
3. Select an option:
•
Automatically connect to the device: When the
application is started or when the named device appears
on the network while the PETracer application is running
on this computer, the PETracer application will try to
connect to the named device.
• Ask if I want to connect to the device: When the
application is started or when the named device appears
on the network while the PETracer application is running
on this computer, the PETracer application will display a
message box allowing you to connect to the named
device.
• Take no action: When you start the application or when
the named device appears on the network while the
PETracer application is running on this computer, you
must connect manually to use the named device.
Note: When you close the application on this computer (or
you perform manual disconnect), the application
disconnects from the device.
4. Press OK in the Connection Properties dialog. After you
finish the connect procedure, the Summit T3-8 to which you
have connected is marked as Ready and you can use it for
recording.
Note: To disconnect from a device, display this dialog,
select the device, and click the Disconnect button.
Note 2: Summit T3-8 will not appear in the Analyzer Device
dialog if it is connected on a different Subnet on your
local network. You can connect to it on the Subnet by
