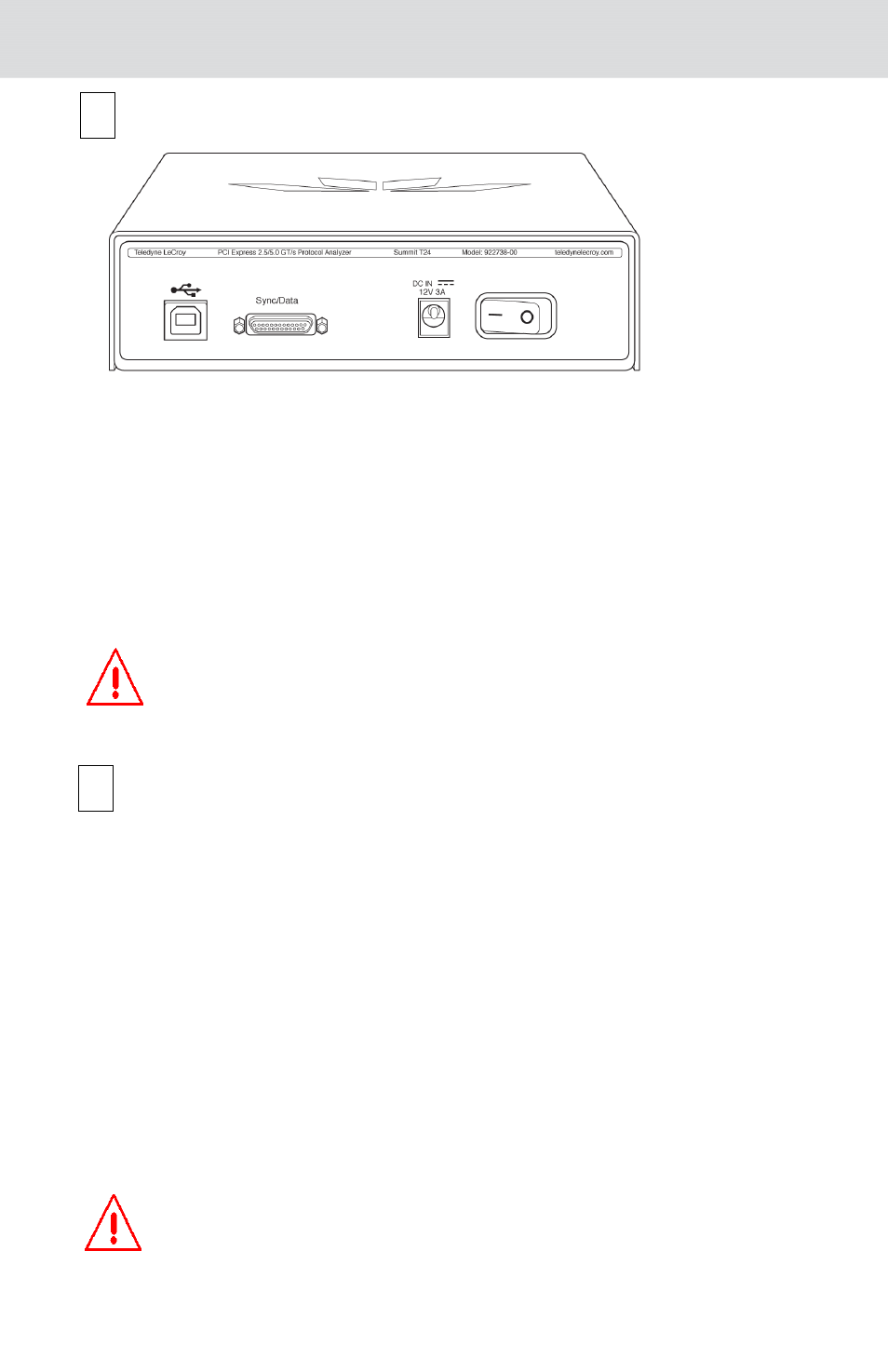

Rear Panel Description
[1] USB Type B Host Machine Connector: To connect the Analyzer to
the host machine using a USB connection.
[2] Sync /Data: Allows multiple Teledyne LeCroy analyzers to send
synchronization and control messages to one another.
[3] DC IN: 12 V, 3 A
[4] Power Switch (black): 1 = On and 0 = Off.
Warning Do not open the enclosure. No operator serviceable parts are inside.
1 2 4 3
5
6
Interposers and Probes
The Summit T24 supports a full range of Teledyne LeCroy PCIe Gen 2
Interposers and Probes, including:
Gen2 MidBus Probe: The Gen2 MidBus Probe supports lane widths
from x1 to x4 at data rates of 2.5 GT/s (Gen1) and 5.0 GT/s (Gen2) on the
T24 system.
Gen2 Multi-lead Probe: The Summit Multi-lead Probe supports lane
widths from x1 to x4 using up to 8 Flex Tips, with each Flex Tip connected
via two coax cables.
Gen2 Passive Slot Interposer: The T24 supports the x1 and x4 Passive
Slot at data rates of 2.5 GT/s (Gen1) or 5.0 GT/s (Gen2).
Gen2 Active Slot Interposer: The Gen2 Active Slot Interposer when
used on the Summit T24 will support lane widths from x1 to x4 at data
rates of 2.5 GT/s (Gen1) or 5.0 GT/s (Gen2).
Warning Interposer has static-sensitive components.
Handle only at static-safe work stations.
