Software Configuration
The default configuration of the Gen2 Mid-bus Probe Assembly is the (x4 width) configuration.
To use Summit Analyzers, you must first create the correct swizzling setup in the Recording Options dialog.
To setup the swizzling configuration:

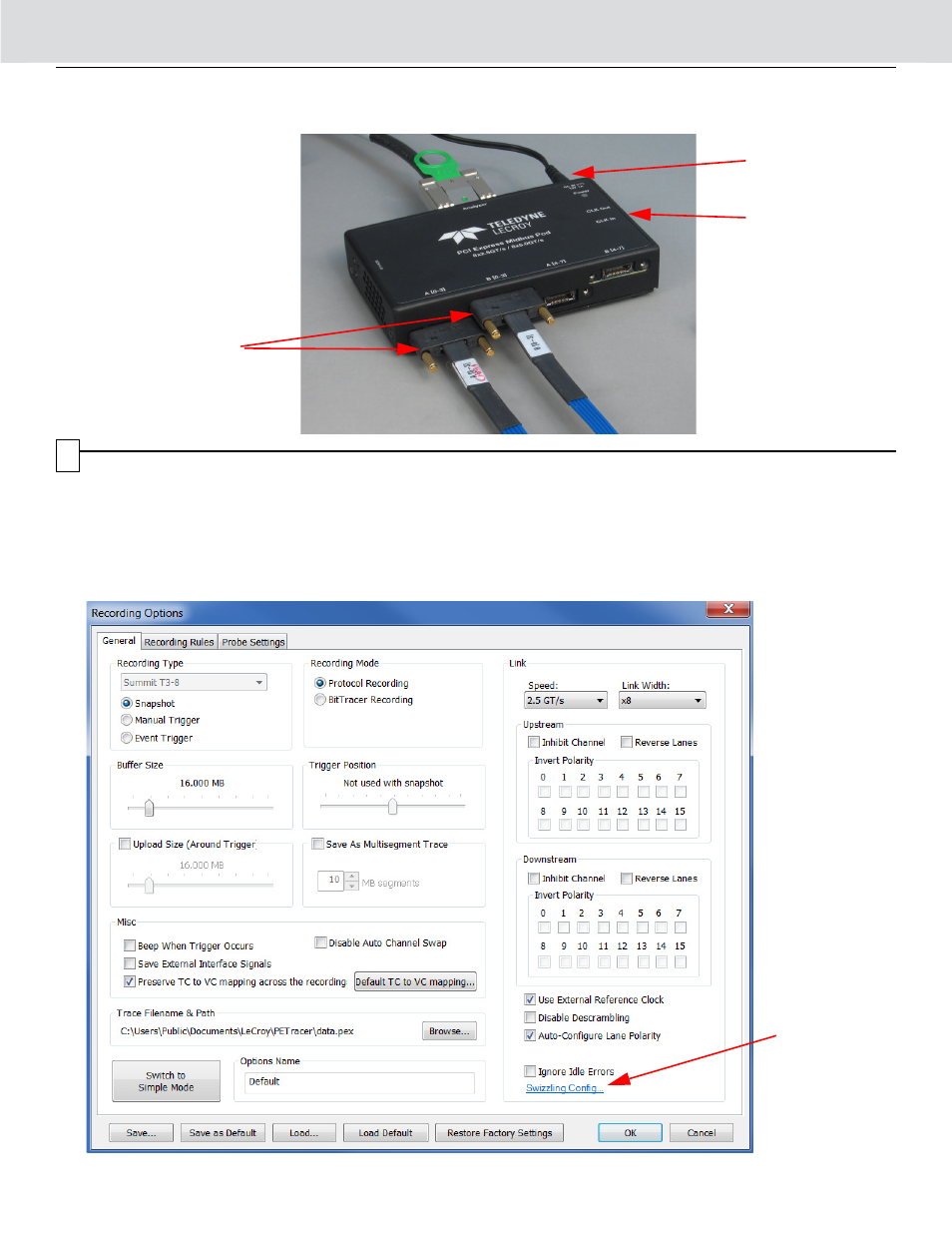

1. Open the PETracer application on the host machine.
2. Open the Recording Options dialog.
3. In the Recording Type section (top left) your connected analyzer must be displayed.
4. If using the external clock option, connect the clock cable to the pod and the DUT. Two cables plugged in to the
probe indicate that it is a half-size probe head.
Clock
Connection
Power Supply
Cable
Two Cables
plugged in to
probe
