Hardware Installation
To install the components:
1. Install the universal retention module in the Mid Bus footprint. For further details review the PCI Express Mid-Bus
Probe for Summit manual in the website or Summit Analyzer installation CD.
2. Attach the probe head to the retention module.
3. Connect the probe cable assembly to the Summit Analyzer.

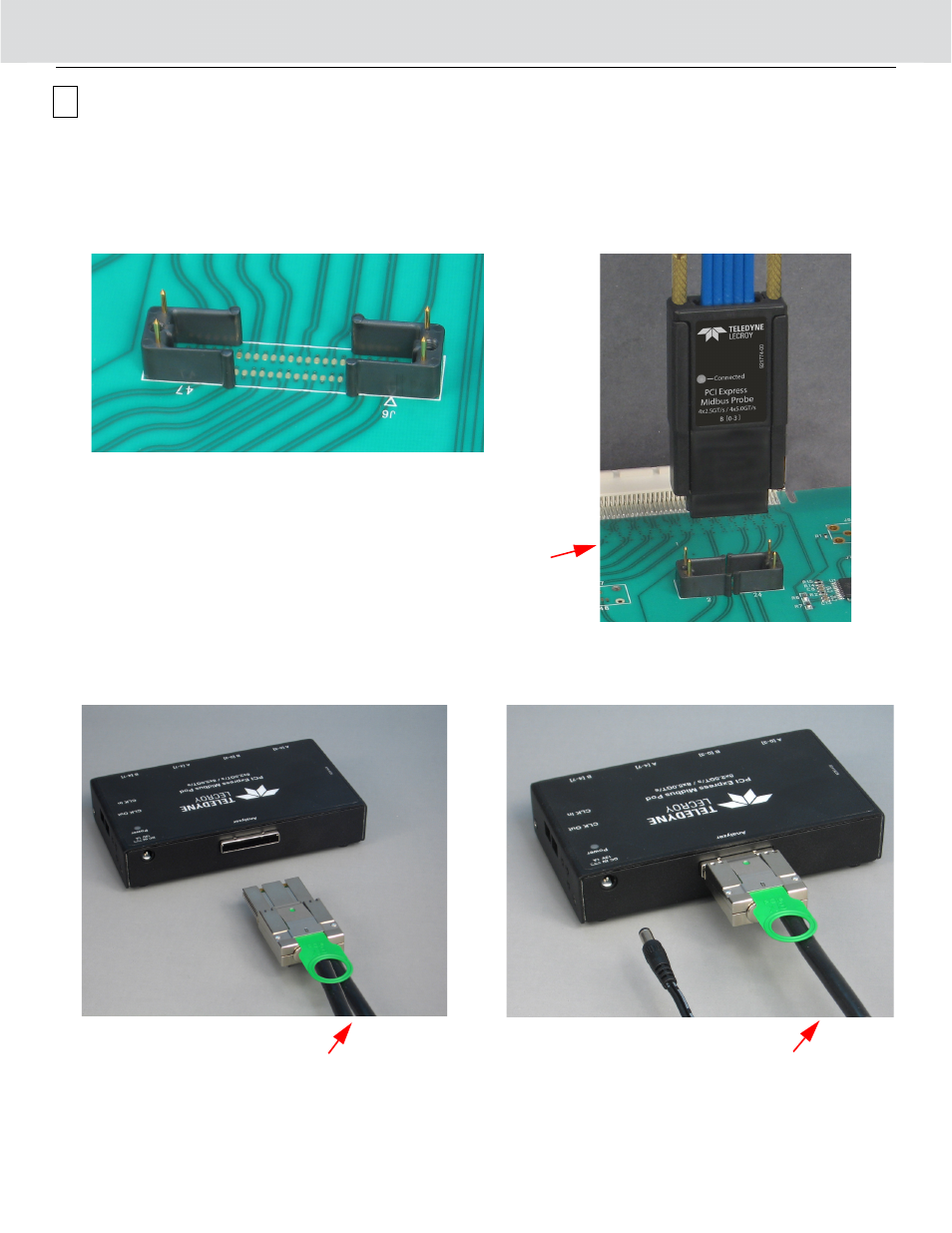

Universal Retention Module
Attaching the Probe Head to the Universal Retention Module
Plugging in Summit T24 Cable
in to Mid-bus Probe Plugging in Summit T3-16, T3-8 or T28
Cable in to the Mid-bus Probe
