Chapter 1

SD card slot

(SD/SDIO/MMC)

4-way navigation button - functions like the four arrow keys on a

keyboard. This button allows you to move through the program icons,

folders, or files in a menu by scrolling up or down, left or right.

If ASUS

®

MyPal is bundled with GPS map software, you may use the

buttons to zoom in, zoom out and adjust the volume.

Launch button - functions like the enter/return key on a keyboard.

Press once to launch a selected program, list folder contents, or open a file.

Contacts button - opens your contacts list at any time.
Calendar button - opens the Calendar program at any time.
Mode Switcher button - allows you to switch between Today,

Windows Media Player and Rotate screen. The Mode Switcher button

can also function as a Task Switcher, which allows you to switch

between currently running programs on your device.

Notes button - opens the Notes program at any time.
Bluetooth/GPS/Wi-Fi LED - lights up blue when the Bluetooth

®

feature

is on; lights up green when GPS is on; lights up red when Wi-Fi is on.

Battery cover - provides protection to the battery compartment of the

device.

SD card slot - accommodates an SD memory card, MMC memory

card or an SDIO interface card (e.g. 802.11b/g, modem, etc.)

External antenna jack - connects to an external GPS antenna (A686/

A696 only).

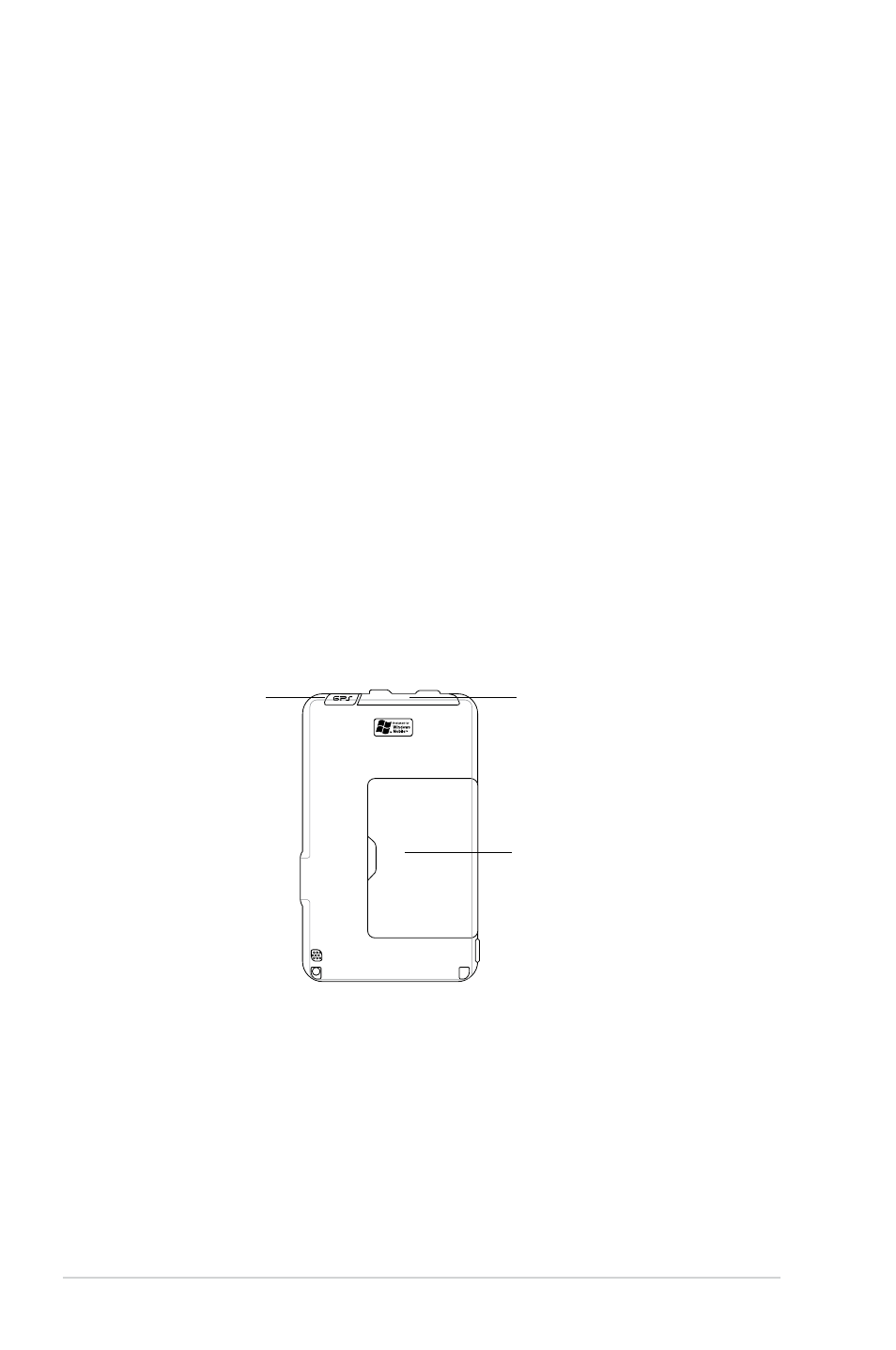

External

antenna jack

(MMCX)

Battery cover

Back features
