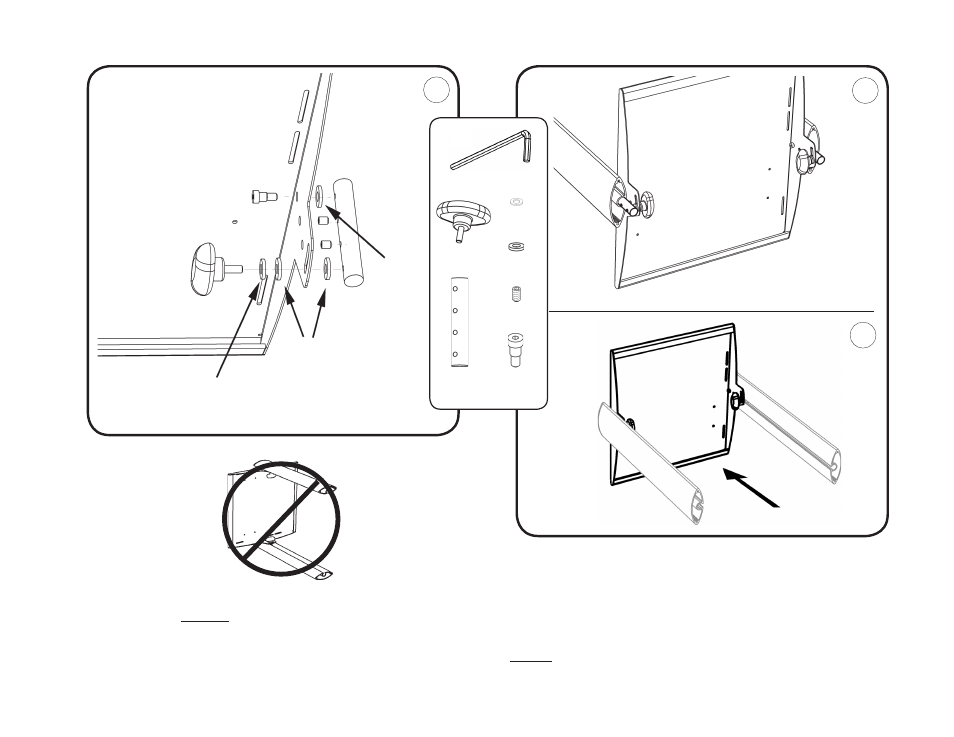

Illustration 1: Loosely preassemble 2 Rods and all Shoulder Screws, Knobs, Plastic Washers, and Metal Washers to the Top
Shelf using the placement as shown. Use the small wrench to insert the Set Screws into the Rod through the Top Shelf.
Illustration 2 and 3: Slide the assembly to the end of the Posts and tighten the knobs.
3
Plastic Washers
Metal Washer
Plastic Washer
2 1
2 Knobs
2 Rods 2 Shoulder
Screws
4 Set Screws
2 Metal
Washers
6 Plastic
Washers
Small Wrench
