Teledyne LeCroy HDO Oscilloscope Rackmount - Manual (Page 10)

HDO Oscilloscope Rackmount Accessory
8 922646-00 Rev A

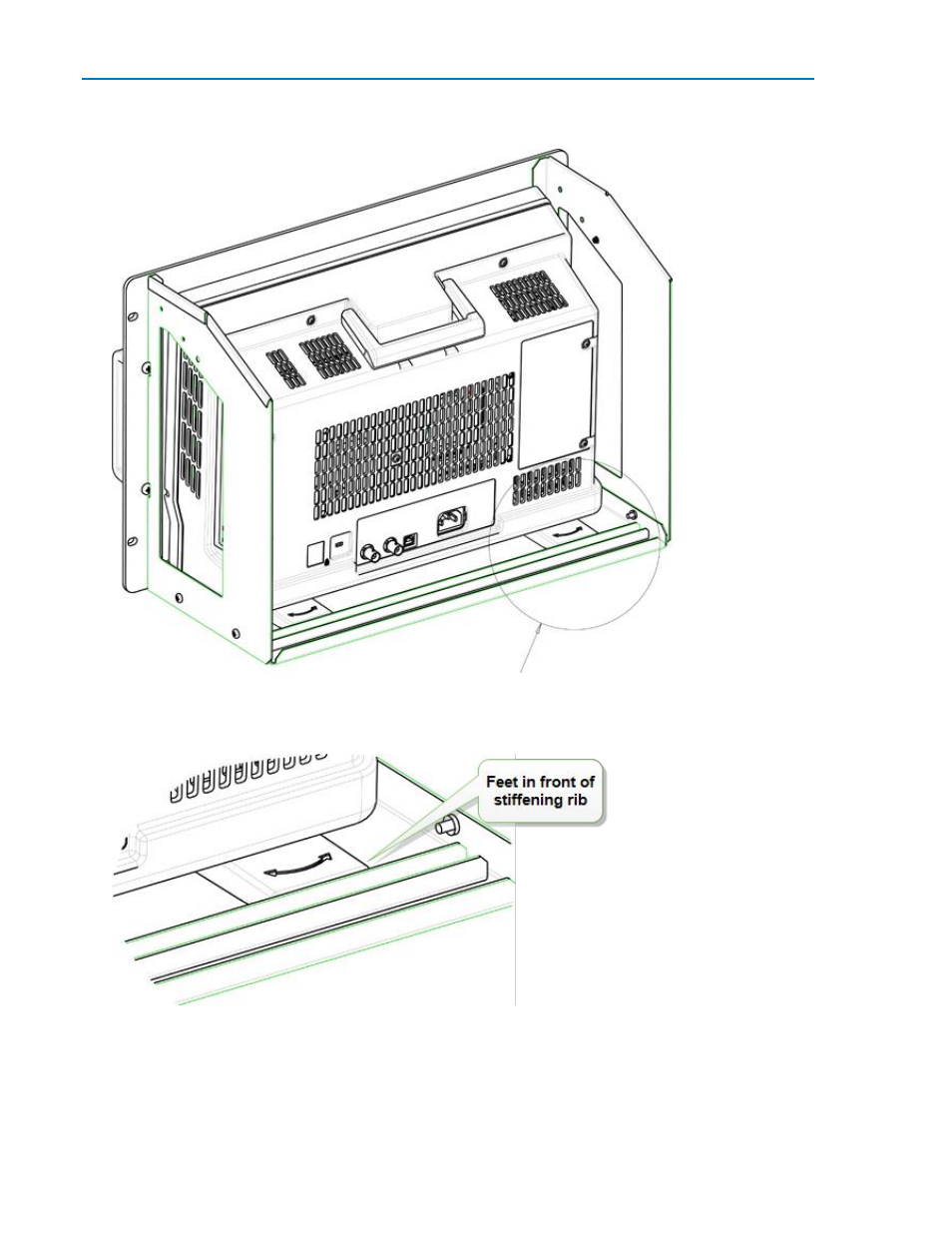

3. With your oscilloscope prepared according to the Pre-Installation Requirements, carefully pick up
and lower the oscilloscope into the assembled Face Plate, Left and Right Walls, and Tray Base.
Seat the instrument into the Tray Base, centering the front of the unit into the Face Plate opening.
Position the feet of the oscilloscope in front of the stiffening rib located toward the back of the Tray
Base.
