Installation Instructions

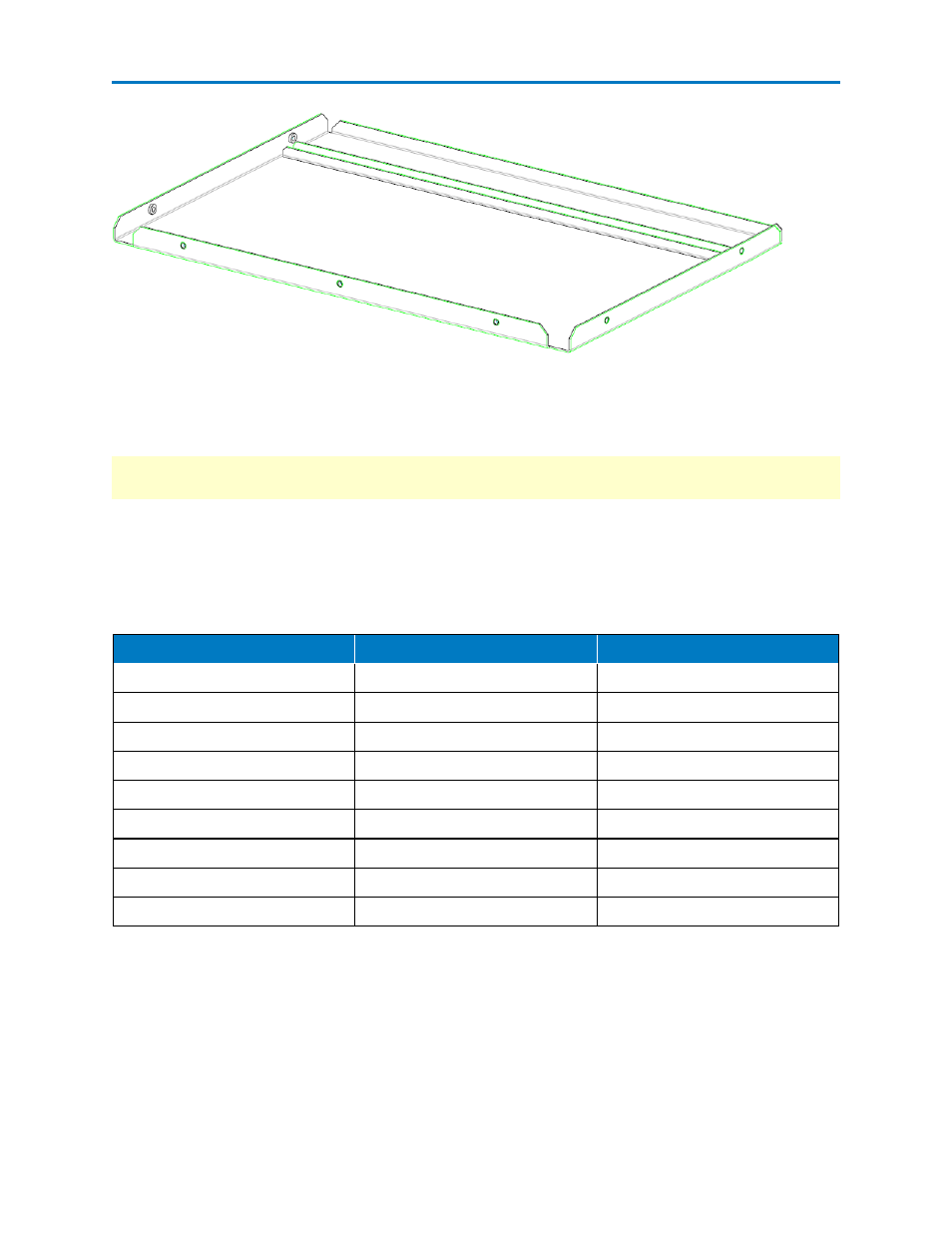

Tray Base (1)
Contact the Teledyne LeCroy Service Center nearest to you if any parts are missing or damaged.
NOTE: Parts are shown in this manual using the aforementioned names. See the Part Reference Table for
the exact Teledyne LeCroy part numbers when ordering replacements.
Part Reference Table
Use the following numbers when ordering replacement parts.
Description Teledyne LeCroy Part Number Qty. Per Unit
M4 X 10 Phillips Screw 550441110 15
M5 X 12 Phillips Screw 42A0000003090 4
12.2mm Front Handle 42A0000002918 2
Top Bracket 919683-00 1
Face Plate 919572-00 1
Left Wall 919568-00 1
Right Wall 919569-00 1
Tray Base 919570-00 1
Installation Instructions 922300-00 1
922300-00 Rev A 5
