WaveRunner 6 Zi Oscilloscope Rackmount Accessory

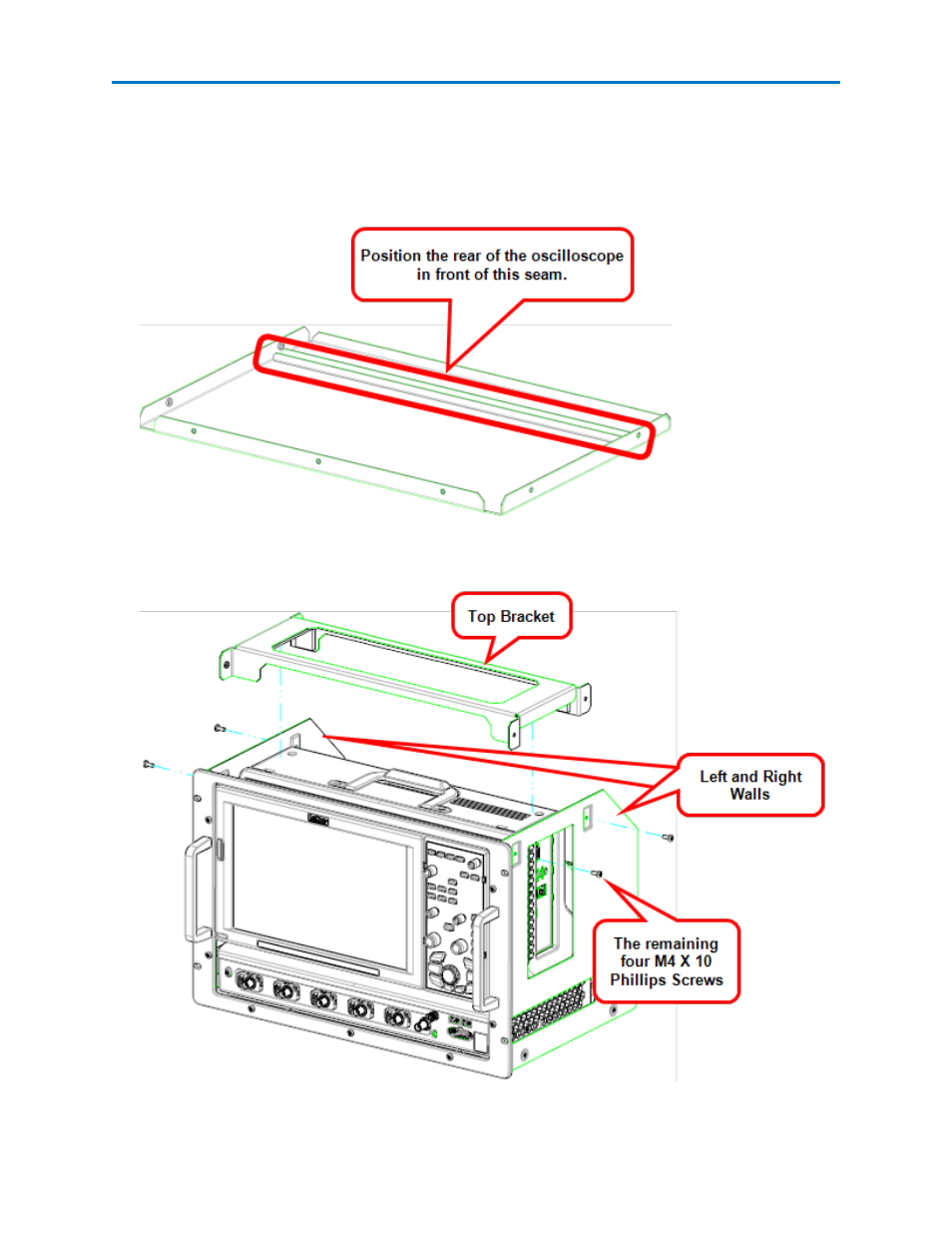

3. With your oscilloscope prepared according to the Pre-Installation Requirements, carefully pick up

and lower your oscilloscope into the assembled Face Plate, Left and Right Walls, and Tray Base.

Seat the instrument into the Tray Base, positioning the rear of the oscilloscope in front of the seam-
located toward the back of the Tray Base.

4. Use the remaining four M4 X 10 Phillips Screws to attach the Top Bracket to the Left and Right

Walls.

8

922300-00 Rev A
