Superwinch H14P PRO - 6,020 kgs Manual Clutch (Long Drum) complies with EN14492-1 - Manual (Page 9)

Owners Manual 5-201-003 Issue 1 9 Page
05
SPARES & ACCESSORIES

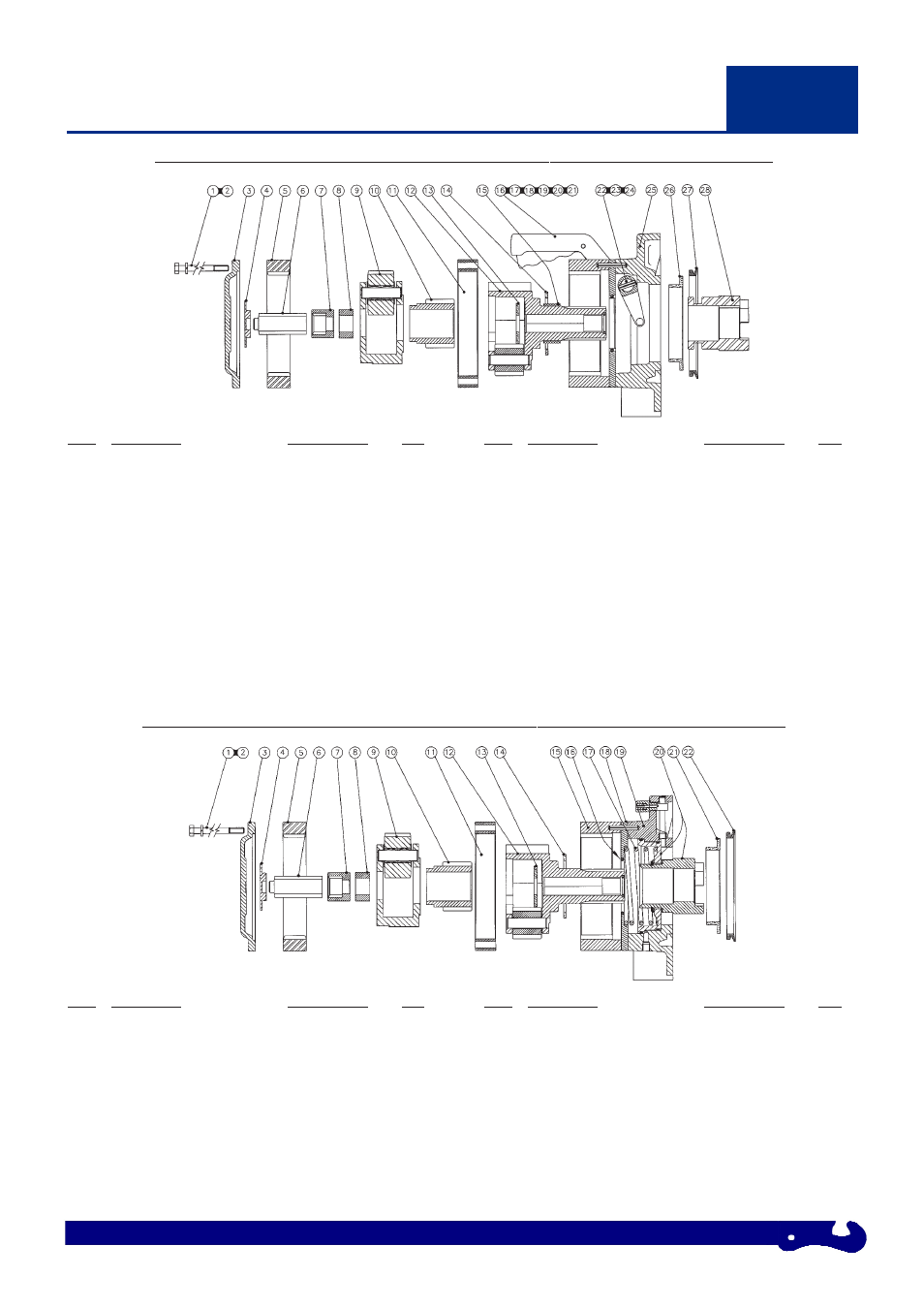

H12P / H14P SERIES WINCHES, GENERAL ASSEMBLY WITH PNEUMATIC FREESPOOL
Item Description Part Number Qty
1 Bolt, M8 X 150 4-33-0815022 6
2 Spring Washer, M8 4-51-0823 6
3 Gearbox Cover 53-25054 1
4 Thrust Pad 53-52224 1
5 1st Stage Ring Gear 88-32288-01 1
6 1st Stage Sun Gear 53-54036 1
7 Driveshaft Coupling 53-70032 1
8 Coupling Spacer 53-52270 1
9 1st Stage Carrier Assembly 53-90563 1
10 Final Stage Sun Gear 53-54058 1
11 Ring Gear Spacer 53-50421 1
12 2nd Stage Carrier Assembly 53-90271 1
13 Thrust Washer 53-52241 1
14 Thrust Washer 53-52223 1
Item Description Part Number Qty
15 Wave Spring. 4-156-211195130 1
16 Freespool Handle Assembly 53-90328 1
17 Latch Plate 53-60173 1
18 Set Screw, M8 X 16 4-32-0801622 1
19 Plain Washer, M8 4-50-0823 1
20 Set Screw, M8 X 20 4-32-0802022 1
21 Spring Washer, M8 4-51-0823 1
22 Clutch Fork 53-52295 1
23 Freespool Pivot Shaft 53-50456 1
24 Roll Pin, 6mm X 26 4-56-602603 1
25 Gearbox Base Assembly 53-90501 1
26 Drum Bearing 53-40953 1
27 V-Ring Seal 4-22-130151123 1
28 Sliding Dog 53-25055 1
H12P / H14P SERIES WINCHES, GENERAL ASSEMBLY WITH MANUAL FREESPOOL
Item Description Part Number Qty
1 Bolt, M8 X 150 4-33-0815022 6
2 Spring Washer, M8 4-51-0823 6
3 Gearbox Cover 53-25054 1
4 Thrust Pad 53-52224 1
5 1st Stage Ring Gear 88-32288-01 1
6 1st Stage Sun Gear 53-54036 1
7 Driveshaft Coupling 53-70032 1
8 Coupling Spacer 53-52270 1
9 1st Stage Carrier Assembly 53-90563 1
10 Final Stage Sun Gear 53-54058 1
11 Ring Gear Spacer 53-50421 1
Item Description Part Number Qty
12 2nd Stage Carrier Assembly 53-90271 1
13 Thrust Washer 53-52241 1
14 Thrust Washer 53-52223 1
15 2nd Stage Ring Gear. 53-54037 1
16 Oil Seal 4-22-7078053 1
17 Spring 4-31-1068505803 1
18 Spacer. 53-50374 1
19 Gearbox Housing Assembly 53-90310 1
20 Actuator / Piston Assembly 53-90591 1
21 Drum Bearing 53-40953 1
22 V-Ring Seal 4-22-130151123 1
