Owners Manual 5-201-003 Issue 1 4 Page
Model Designation H12P H12P H14P H14P
Standard Drum Standard Drum Standard Drum Standard Drum
Part No: 5320-PRO 5322-PRO 5330-PRO 5332-PRO
Weight (Less Rope): 72 kg 72 kg 72 kg 72 kg
Recommended Rope Diameter: 12 mm 12 mm 13 mm 13 mm
Drum Capacity: 36 M 36 M 26 M 26 M
Drum Diameter (10:1 D:d ratio): 108 mm 108 mm 117 mm 117 mm
Line Speed (1st Layer, No Load): 10.77 M/min 10.77 M/min 9.0 M/min 9.0 M/min
Line Pull (Bottom Layer): 50.0 kN 50.0 kN 59.02 kN 59.02 kN
Maximum Oil Pressure: 165 bar 165 bar 150 bar 150 bar
Maximum Oil Flow: 60 L/min 60 L/min 60 L/min 60 L/min
Freespool Manual Pneumatic Manual Pneumatic
Model Designation H12P H12P H14P H14P
Long Drum Long Drum Long Drum Long Drum
Part No: 5321-PRO 5323-PRO 5331-PRO 5333-PRO
Weight (Less Rope): 75 kg 75 kg 75 kg 75 kg
Recommended Rope Diameter: 12 mm 12 mm 13 mm 13 mm
Drum Capacity: 40 M 40 M 30 M 30 M
Drum Diameter (10:1 D:d ratio): 108mm 108 mm 117 mm 117 mm
Line Speed (1st Layer, No Load): 10.77 M/min 10.77 M/min 9.0 M/min 9.0 M/min
Line Pull (Bottom Layer): 50.0 kN 50.0 kN 59.02 kN 59.02 kN
Maximum Oil Pressure: 165 bar 165 bar 150 bar 150 bar
Maximum Oil Flow: 60 L/min 60 L/min 60 L/min 60 L/min
Freespool Manual Pneumatic Manual Pneumatic
To ensure that winches are compliant with the European standard, BS-EN14492-1 Superwinch recommends that wire
ropes should be as follows:
12mm dia for H12P winch with a tensile grade of 1960 and a min break figure of 10,200kg (100.0kN)
13mm dia for H14P winch with a tensile grade of 1960 and a min break figure of 12,040kg (118.0kN)
02
SPECIFICATION DATA
Gear Reduction: High efficiency planetary for optimum reliability.
Drum: Fabricated steel mounted on maintenance free plain bearings.
Braking: Full Load Holding.
Mounting: Designed to most industry standard dimensions, this winch can be side,
foot or angle mounted, flat bed or low mount.
Pneu. Freespool Supply Pressure: 5.5 bar.
Load Limiter: Hydraulic system relief valve on vehicle (installers responsibility).

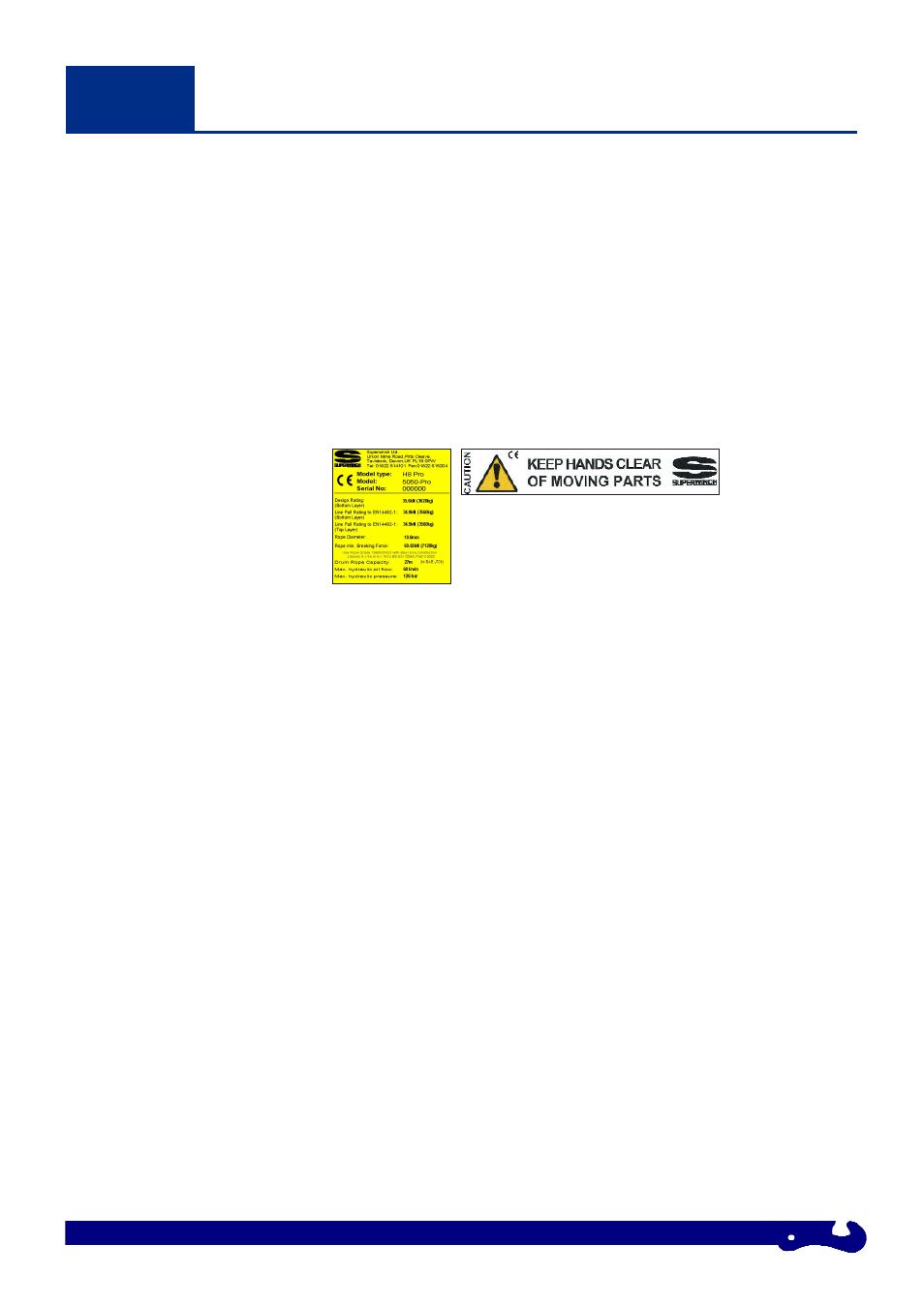

Labelling: Rating Plate showing 1st layer and top layer figures.
Roller Fairlead warning label.
