SPARES & ACCESSORIES

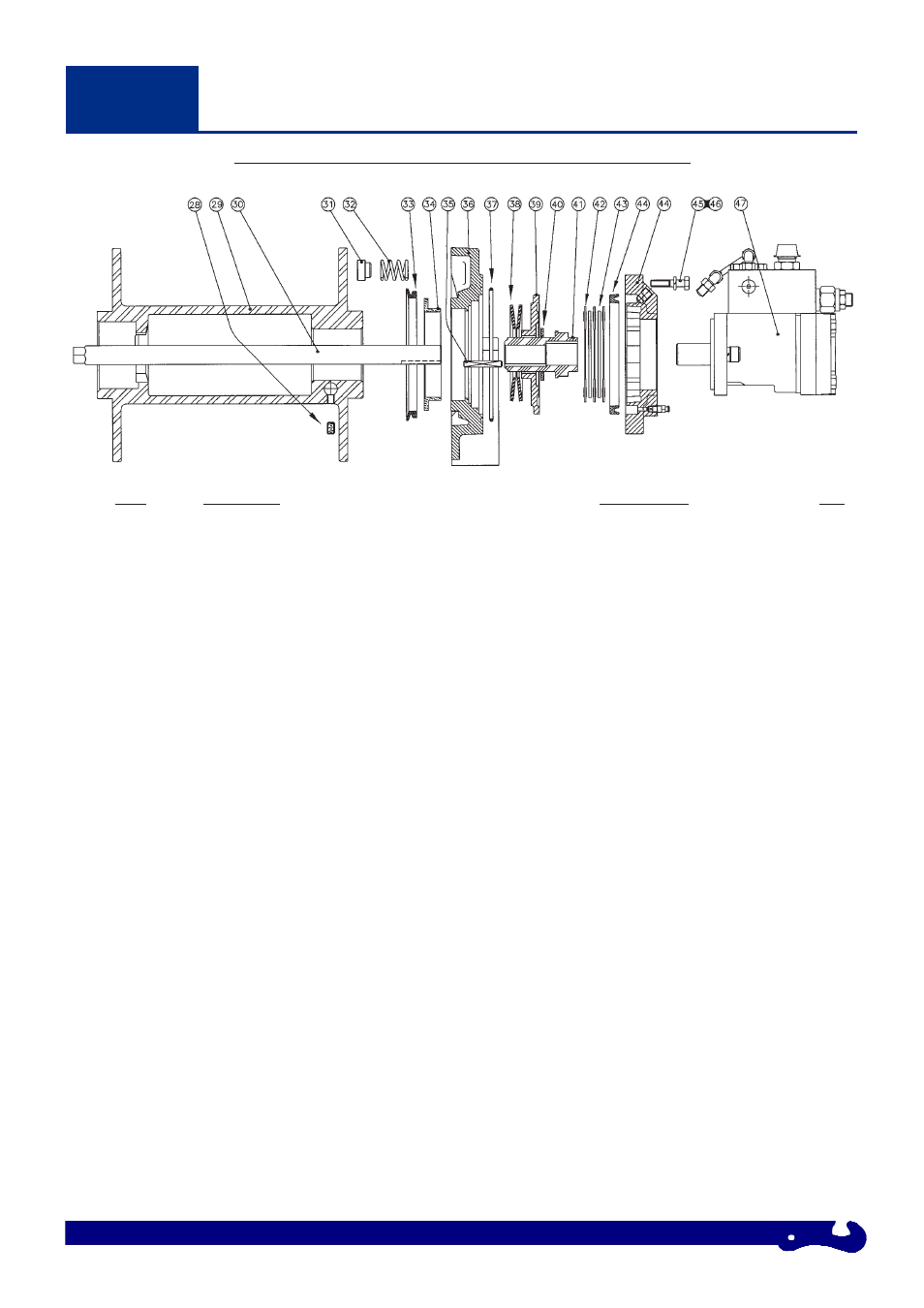

H12P / H14P SERIES WINCHES, MOTOR / DRUM ASSEMBLIES
Item Description Part Number Qty
28 Socket Set Screw, M8 X 10 4-40-081003 1
29 Rope Drum, H12P Short, 101.6 X 255mm. 53-90150 1
29 Rope Drum, H12P, Long, 101.6 X 290mm. 53-90151 1
29 Rope Drum, H14P, Short, 114.3 X 255mm. 53-90152 1
29 Rope Drum, H14P, Long, 114.3 X 290mm. 53-90153 1
30 Drive Shaft, Short Drum, 255mm. 53-50466 1
30 Drive Shaft, Long Drum, 290mm. 53-50467 1
31 Brake Pad. 317 2
32 Brake Spring. 320 2
33 V-Ring Seal. 4-22-130151123 1
34 Drum Bearing. 53-40953 1
35 Key. 4-178-060645 1
36 Motor Housing Support. 53-25057 1
37 'O' Ring. 4-21-7553 1
38 Disc Spring 4-145-1125730 2
39 Pressure Plate. 53-65026 1
40 Thrust Washer 53-52240 1
41 Drive Coupling. 53-90336 1
42 Fixed Brake Disc. 88-22313 3
43 Rotating Brake Disc. 53-60184 2
44 Motor Mount Plate with Seal. 53-90603 1
45 Bolt, m8 X 40. 4-33-0804022 8
46 Spring Washer, M8. 4-51-0823 8
47 Motor / Load Control Valve Assembly, H12P. 53-90517 1
47 Motor / Load Control Valve Assembly, H14P. 53-90518 1
N/S Skt Hd Set Screw, M12 X 30 4-36-1203022 2
N/S Tie Bar, Short Drum, 255mm. 53-52265 2
N/S Tie Bar, Long Drum, 290mm. 53-52266 2
N/S Set Screw, M12 X 25 4-32-1202522 8
N/S Spring Washer, M12 4-51-1223 10
