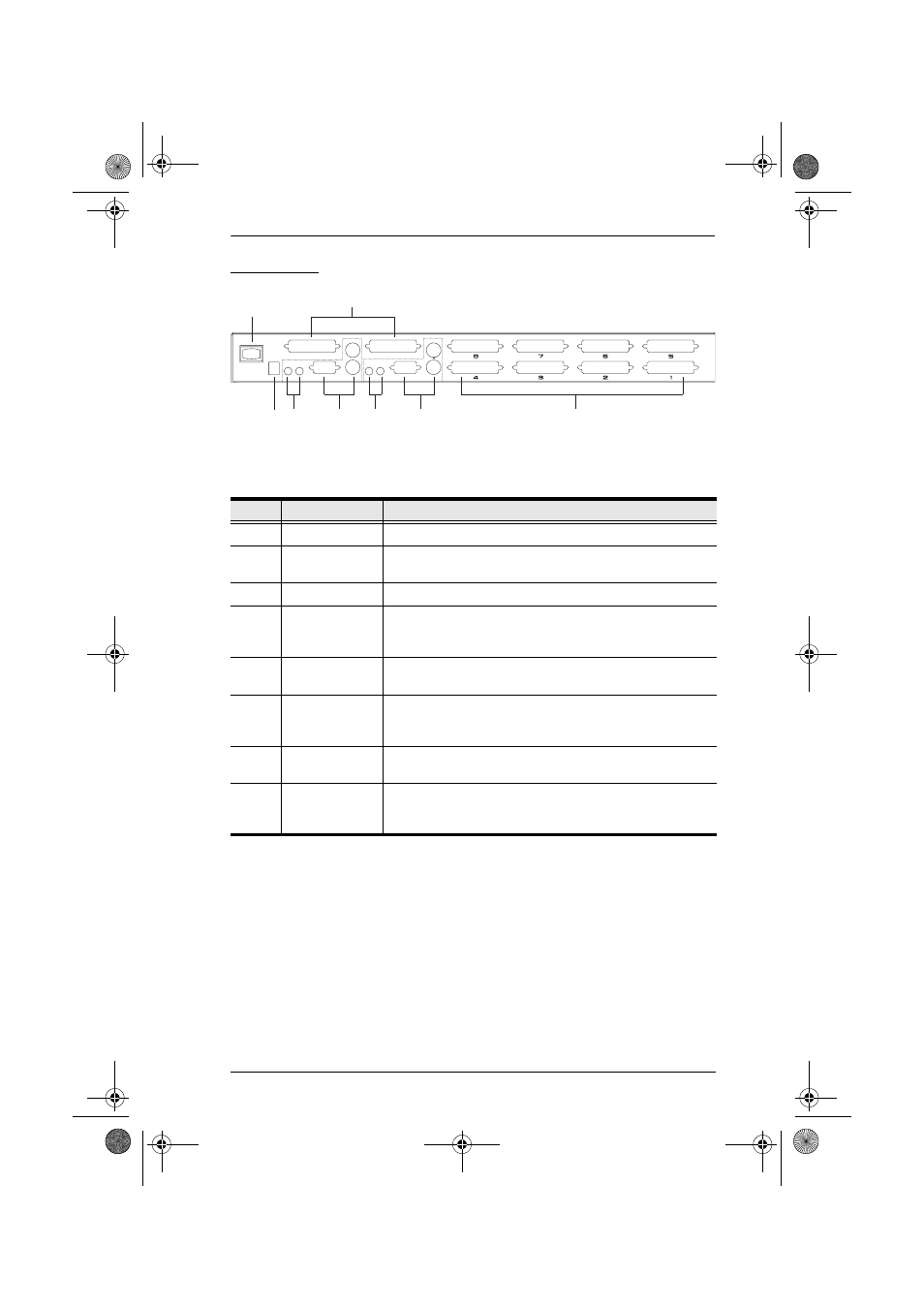

Rear Panel
No. Component Description
1 Power Switch A rocker switch to power the system on and off.
2 Console 3 and 4
Connectors Use KVM Cable sets (see Cables, page 3), to connect the
components that make up Consoles 3 and 4 to these ports.
3 Power Jack The power adapater cable plugs in here.
4 Console 2
Microphone and
Speaker Jacks The microphone and speakers belonging to Console 2 plug
in here.
5 Console 2 KVM
Connectors The keyboard, monitor and mouse belonging to Console 2
plug in here.
6 Console 1
Microphone and
Speaker Jacks The microphone and speakers belonging to Console 1 plug
in here.
7 Console 1 KVM
Connectors The keyboard, monitor and mouse belonging to Console 1
plug in here.
8 KVM Port
Section Use KVM Cable sets (see Cables, page 3), to connect
computers or cascade additional KVM switches (see
Cascaded Installation, page 9) to any available port.
4
1
2
3 7 5 8 6
