CS428 User Manual
4
Components

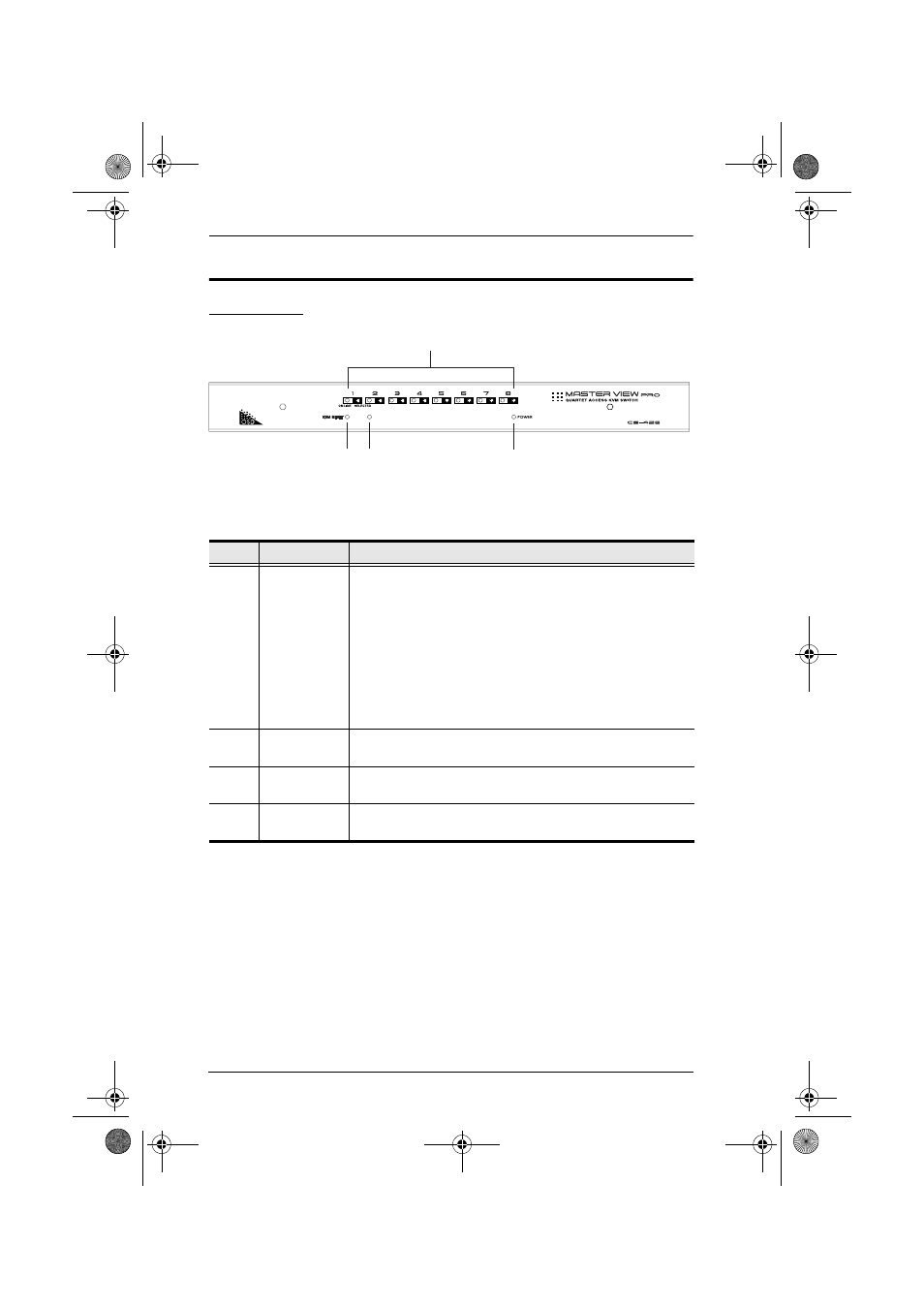

Front Panel
No. Component Description
1 Port LEDs The Port LEDs provide status information about their
corresponding Computer Ports. There is one pair of LEDs for
each Port. The one on the left is the On Line LED; the one on
the right is the Selected Port LED:
Š
An On Line LED lights ORANGE to indicate that the
computer attached to its corresponding port is up and
running.
Š
A Selected LED lights GREEN to indicate that the
computer attached to its corresponding port is the one that
has the KVM focus.
2 K/M Reset
Switch If the keyboard and mouse get stuck and need to be reset,
insert a pointed object in here and push.
3 Sound
Opening System sounds (beeps, etc.), are emitted from this opening.
4 Power LED Lights BLUE to indicate that the CS-428 has been turned On
and is receiving power.
1
2 3 4
