WATTBOX™ 600 Chassis Series Owners Manual
© 2013 Wattbox ™

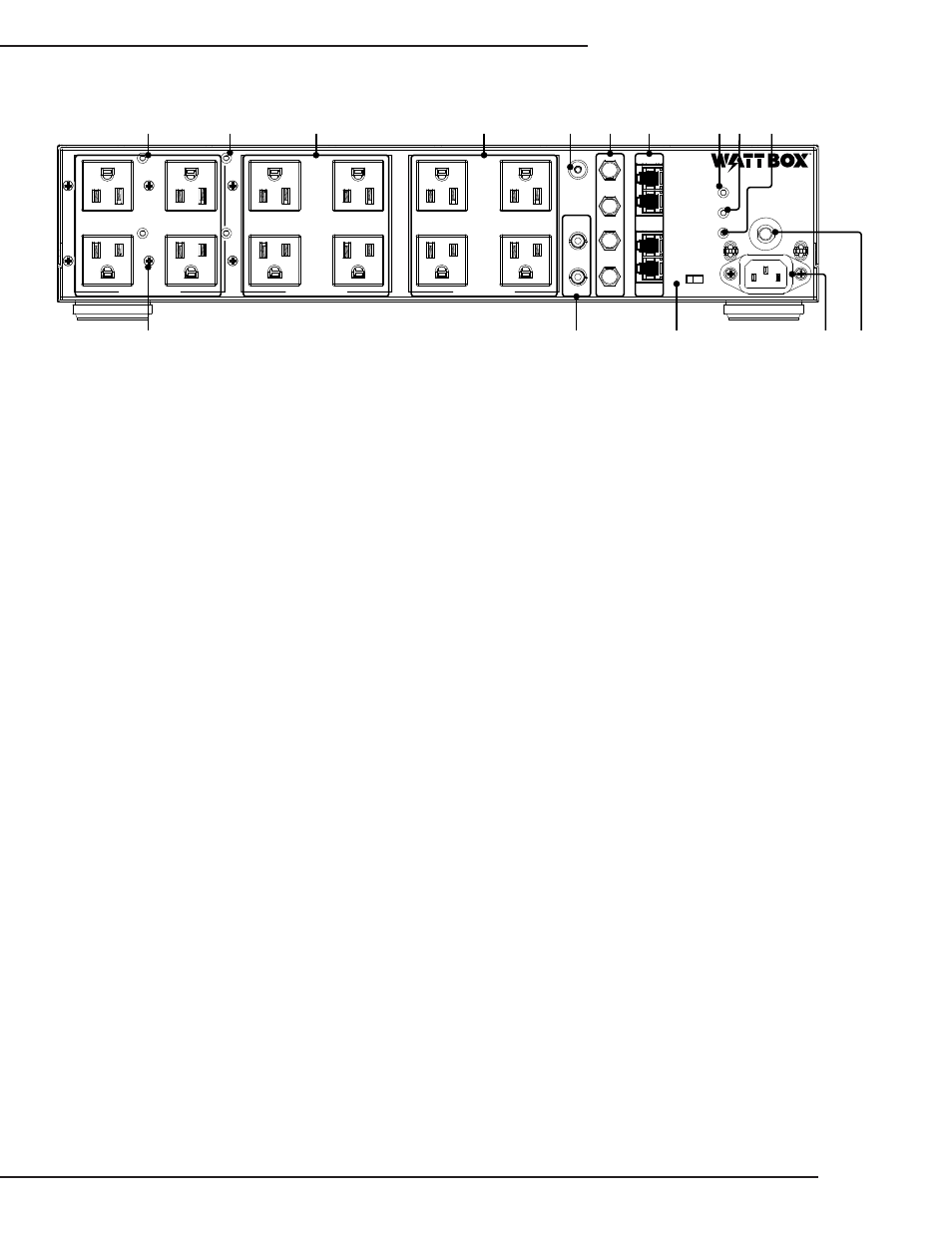

Rear Panel
1. Outlets 1 - 4 – Un-switched (Always On) Isolated Filter
for video/network components
2. Un-switched Outlet Power LED Indicator
3. Outlets 5 - 8 – Switched Isolated filter for audio/auxiliary
4. Outlets 9 - 12 Delayed/Isolated Filter for high current
components
5. Ground Lug
6. Protected 3GHz coax connections for cable/satellite
7. Protected connections for Ethernet / Telephone
8. Safe Voltage LED indicator
9. Surge Protection LED Indicator
10. Ground LED indicator
11. Hook & Loop Strap Lockdown – See Securing Power
Adapters on Pg. 4
12. 12V DC Trigger In/Out
13. Safe voltage switch – Disables Safe Voltage Feature
14. Detachable power cord outlet with locking clip
15. 15 Amp resettable circuit breaker
2
1
4
3
6
5
8
7
10
9
12
11
ALWAYS
ON
ALWAYS
ON SWITCHED SWITCHED DELAYED DELAYED
FILTER 1 - VIDEO/NETWORK FILTER 2 - AUDIO/AUX FILTER 3 - HIGH CURRENT
IN
OUT
OUT
OUT OUT
OUT
IN
IN
IN
IN
SAFE VOLTAGE
ON OFF
SAFE VOLTAGE
PROTECTED
GROUNDED
GROUND
LUG
TRIGGER
WB-600CH-SVCE-12
1 3 2 4 5 6 7 8 9 10
12 13 14 15 11
