DDR UDIMM w/o ECC

Product Datasheet

Rev. 1.0 Oct. 2011

5

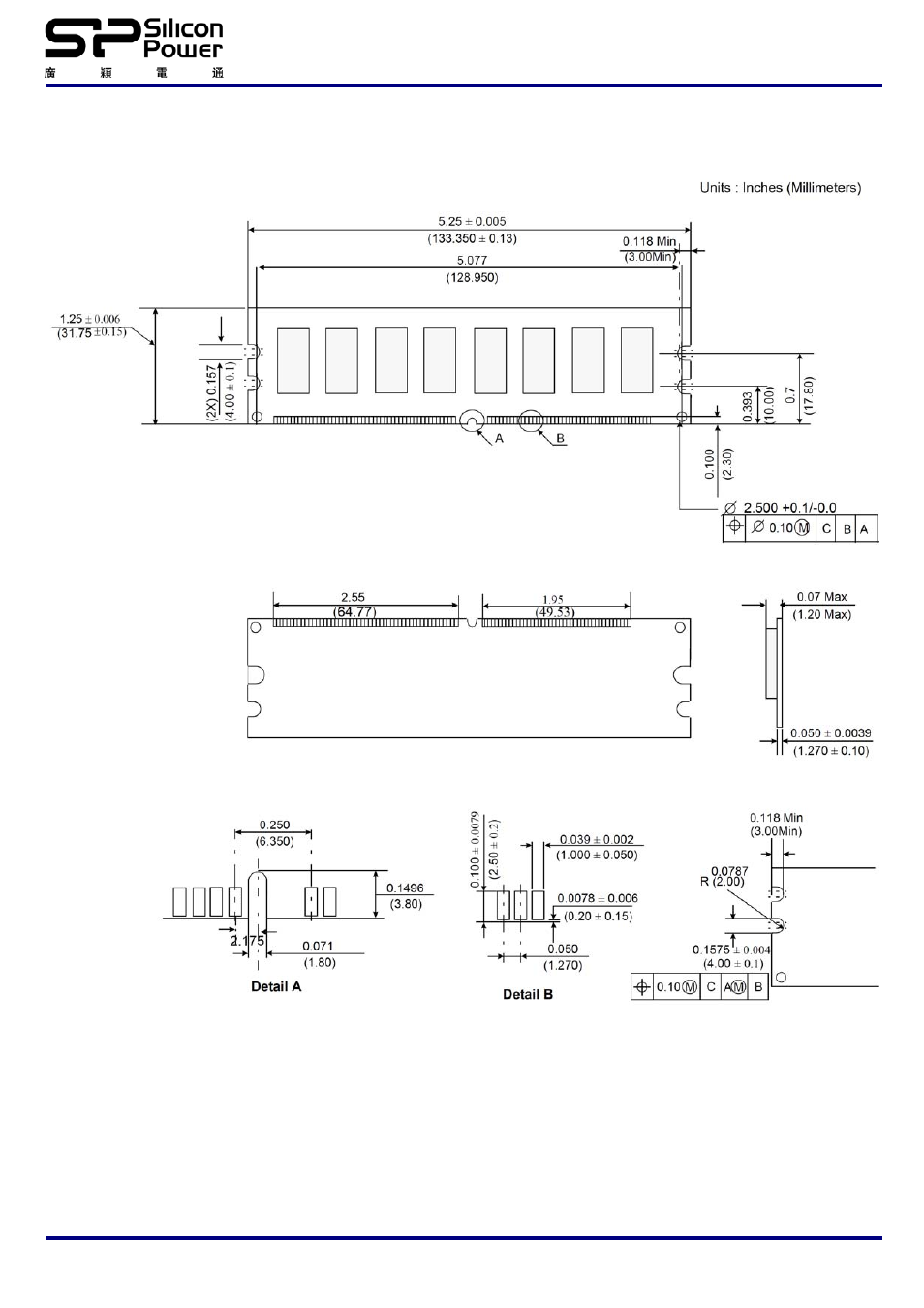

Simplified Mechanical Drawing(x8 1Rank)

X64 DIMM, populated as one physical rank of x8 DDR SDRAMs

Note:

1. All dimensions are in millimeters (inches); MAX/MIN or typical (TYP) where noted.

Note:

2. The dimensional diagram is for reference only.

This manual is related to the following products:

SP512MBLDU400O02 SP512MBLDU400L02 SP001GBLDU400O02 SP512MBLDU333K02 SP512MBLDU333O02 SP512MBLDU333L02 SP001GBLDU333O02 SP512MBLDU266K02 SP512MBLDU266O02 SP512MBLDU266L02 SP001GBLDU266O02
