DDR SODIMM
Product Datasheet
Rev. 1.0 Oct. 2011
6

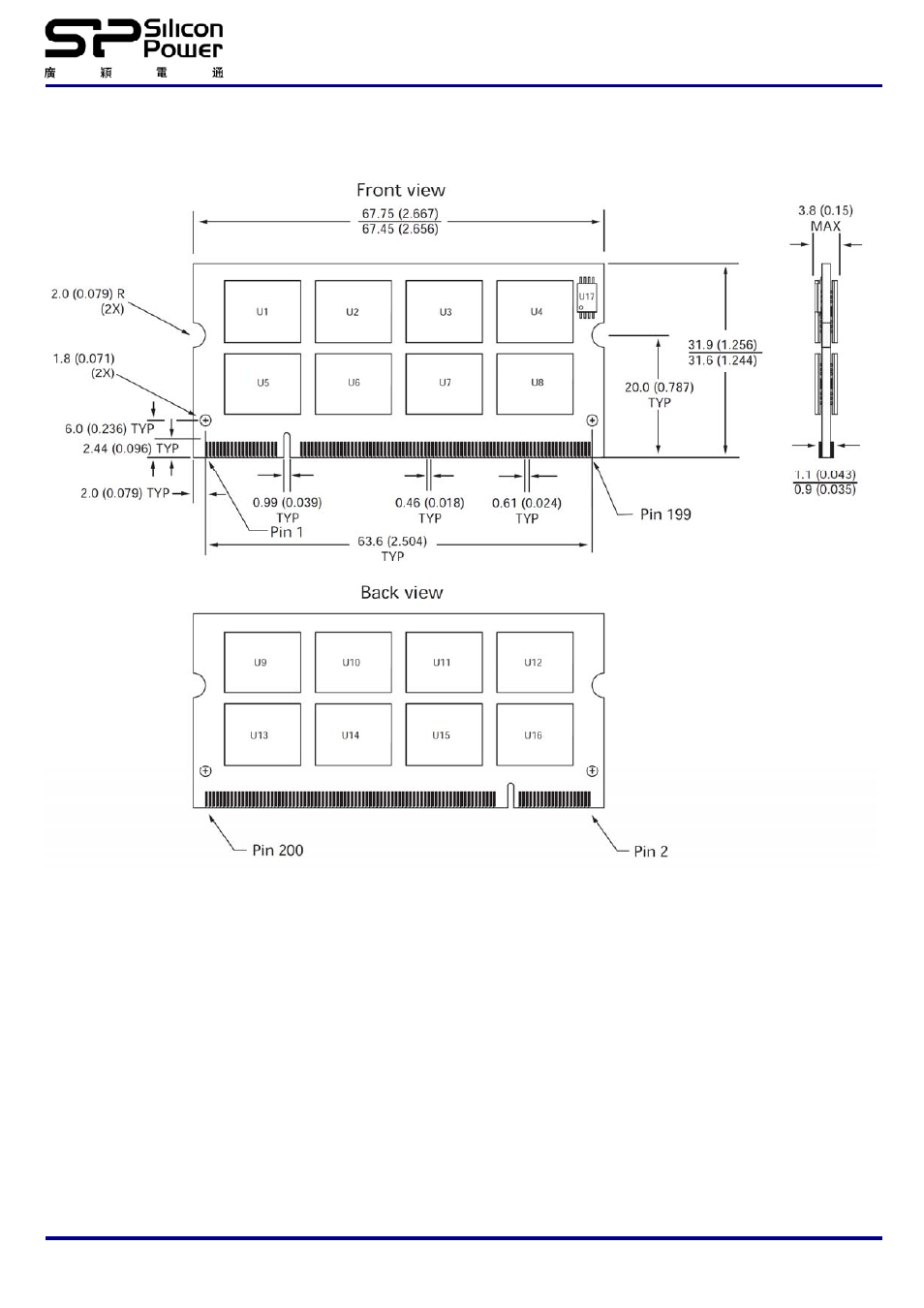

Simplified Mechanical Drawing(x8 2Ranks)
X64 DIMM, populated as two physical ranks of x8 DDR SDRAMs
Note:
1. All dimensions are in millimeters (inches); MAX/MIN or typical (TYP) where noted.
2. The dimensional diagram is for reference only.
